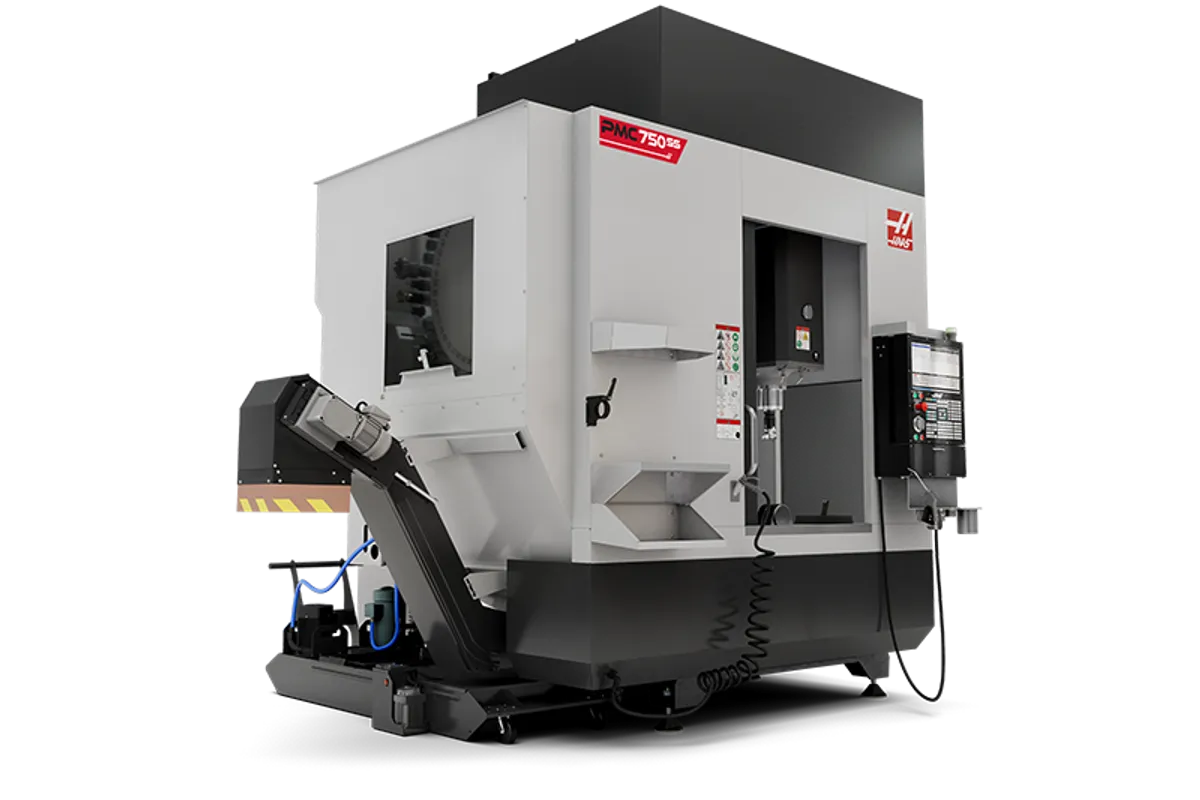

Haas PMC-750SS
Image: haascnc.com, Haas Automation
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Haas PMC-750SS cost?
Estimated price range
Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Haas Automation. Configuration moves it a long way.
Overview
The Haas PMC-750SS combines 30 × 20 × 20 in (762 × 508 × 508 mm) of linear travel with a 19.7 in (500 mm) tilting rotary platter, for indexed five-sided work on parts up to 660 lb (300 kg). The spindle is a 12,000 rpm, 30 hp (22.4 kW) inline direct-drive unit in CT40, BT40 or HSK-A63.
The two rotary axes are not rated alike on this size. B, the tilt, travels from +120° to -35° at 170 °/sec with 2,240 ft-lbf (3,037 N·m) of drive torque and a 2,000 ft-lbf (2,712 N·m) brake. C, the rotation, turns 360° at 179 °/sec with 1,854 ft-lbf (2,514 N·m) and a 900 ft-lbf (1,220 N·m) brake. Both are listed as Positioning Only. C has the smaller brake, and a cut taken far from the platter centre acts on it through a long lever arm, so keep roughing close to the centre of rotation where the fixture allows.
Part swing on C is 27 in (686 mm), well beyond the platter diameter, and the spindle nose clears the platter by 4 in (102 mm) to 24 in (610 mm). Thrust is 3,300 lbf (14,680 N) on X and Y and 4,050 lbf (18,015 N) on Z, with 1,200 ipm (30.5 m/min) rapids.
For scale, the VF-2 has 30 × 16 × 20 in (762 × 406 × 508 mm) travels and ships at 7,800 lb (3,539 kg); the PMC-750SS ships at 14,250 lb (6,463.8 kg). Within the PMC line, the PMC-500SS has a 15.7 in (400 mm) platter for 500 lb (226.8 kg) and the PMC-1000SS a 25 in (635 mm) platter for 1,000 lb (454 kg).
The 30+1 side-mount changer runs 1.8 s tool-to-tool and 2.4 s chip-to-chip. Rows for a pallet pool, a 70+1 changer and a conveyor with 120+1 changer describe alternative configurations; the pallet pool lowers the platter load to 200 lb (90.7 kg).
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 30 in (762 mm) |
| Y-Axis Travel | 20 in (508 mm) |
| Z-Axis Travel | 20 in (508 mm) |
| Spindle Nose to Platter (max) | 24 in (610 mm) |
| Spindle Nose to Platter (min) | 4 in (102 mm) |
| Spindle Motor Power | 30 hp (22.4 kW) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Torque | 90 ft-lbf @ 2,000 rpm (122 N·m @ 2,000 rpm) |
| Spindle Drive | Inline Direct-Drive |
| Spindle Taper | CT40 / BT40 / HSK-A63 |
| Spindle Bearing Lubrication | Air / Oil Injection |
| Spindle Cooling | Liquid Cooled |
| B Axis Travel | 120 ° to -35 ° |
| B Axis Max Speed | 170 °/sec |
| B Axis Torque | 2,240 ft-lbf (3,037 N·m) |
| B Axis Brake Torque | 2,000 ft-lbf (2,712 N·m) |
| B Axis Control Type | Positioning Only |
| C Axis Travel | 360 ° |
| C Axis Max Speed | 179 °/sec |
| C Axis Torque | 1,854 ft-lbf (2,514 N·m) |
| C Axis Brake Torque | 900 ft-lbf (1,220 N·m) |
| C Axis Max Part Swing | 27 in (686 mm) |
| C Axis Control Type | Positioning Only |
| Platter Diameter | 19.7 in (500 mm) |
| Max Platter Load | 660 lb (300 kg) |
| Max Platter Load with Pallet Pool | 200 lb (90.7 kg) |
| Platter T Slot Width | 0.626 in to 0.63 in (15.9 mm to 16 mm) |
| Platter T Slots | 7 |
| Platter T Slot Center Distance | 2.48 in (63 mm) |
| Max Cutting Feedrate | 833 ipm (21.2 m/min) |
| Rapid Traverse Rate | 1,200 ipm (30.5 m/min) |
| Max Thrust X | 3,300 lbf (14,680 N) |
| Max Thrust Y | 3,300 lbf (14,680 N) |
| Max Thrust Z | 4,050 lbf (18,015 N) |
| Tool Changer Type | SMTC |
| Tool Capacity | 30+1 |
| Max Tool Diameter (full magazine) | 2.5 in (64 mm) |
| Max Tool Diameter (adjacent pockets empty) | 5 in (127 mm) |
| Max Tool Length | 12 in (305 mm) |
| Max Tool Weight | 12 lb (5.4 kg) |
| Tool Change (tool-to-tool) | 1.8 s |
| Tool Change (chip-to-chip) | 2.4 s |
| Coolant Capacity | 55 gal (208 L) |
| Air Required | 4 scfm @ 100 psi (113 L/min @ 6.9 bar) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Service (low voltage) | 220 VAC 3-phase, 70 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 35 A |
| Shipping Domestic Pallet | 168 × 92.5 × 110 in (427 × 235 × 280 cm) |
| Shipping Export Pallet | 174 × 92 × 100 in (442 × 234 × 254 cm) |
| Machine Weight | 14,250 lb (6,463.8 kg) |
| Shipping Domestic Pallet with 70 plus 1 SMTC | 168 × 92.5 × 130 in (427 × 235 × 330 cm) |
| Shipping Export Crate with 70 plus 1 SMTC | 168 × 96 × 141 in (427 × 244 × 358 cm) |
| Machine Weight with 70 plus 1 SMTC | 18,340 lb (8,319 kg) |
| Shipping Export Crate for Sheet Metal | 96 × 26 × 44 in (243 × 65 × 110 cm) |
| Shipping Domestic Pallet with Conveyor 120 plus 1 SMTC | 165.5 × 122.5 × 130 in (420 × 311 × 330 cm) |
| Machine Weight with Conveyor 120 plus 1 SMTC | 17,100 lb (7,756 kg) |
| Shipping Export Pallet with Conveyor 120 plus 1 SMTC | 168 × 125 × 141 in (427 × 318 × 358 cm) |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- B-axis brake torque of 2,000 ft-lbf (2,712 N·m) and drive torque of 2,240 ft-lbf (3,037 N·m) on the tilt axis
- 19.7 in (500 mm) platter carrying 660 lb (300 kg), with a 27 in (686 mm) part swing
- 30 × 20 × 20 in (762 × 508 × 508 mm) travels with 24 in (610 mm) maximum from spindle nose to platter
- 12,000 rpm, 30 hp (22.4 kW) spindle with 90 ft-lbf (122 N·m) at 2,000 rpm
- Seven T-slots at 2.48 in (63 mm) centers on the platter for direct fixturing
Limitations
- Both rotary axes are Positioning Only; the table does not offer simultaneous five-axis motion
- C-axis brake torque is 900 ft-lbf (1,220 N·m), less than half the 2,000 ft-lbf (2,712 N·m) of B
- Platter load falls to 200 lb (90.7 kg) in the pallet-pool configuration
- Ships at 14,250 lb (6,463.8 kg), against 7,800 lb (3,539 kg) for the VF-2 with the same X and Z travel
Best For
Frequently Asked Questions
01
B travels from +120° to -35° at up to 170 °/sec, with 2,240 ft-lbf (3,037 N·m) of torque and 2,000 ft-lbf (2,712 N·m) of brake torque. C rotates 360° at up to 179 °/sec, with 1,854 ft-lbf (2,514 N·m) of torque and 900 ft-lbf (1,220 N·m) of brake torque. Both axes are listed as Positioning Only.
02
The table lists the control type of both B and C as Positioning Only. The machine is therefore specified for indexing the part to an angle, clamping it and cutting with X, Y and Z. Work that needs all five axes moving in the cut is outside what the listed figures describe.
03
In the middle on every size figure. The PMC-500SS has 24 × 16 × 16 in (610 × 406 × 406 mm) travels and a 15.7 in (400 mm) platter for 500 lb (226.8 kg). The PMC-750SS has 30 × 20 × 20 in (762 × 508 × 508 mm) and a 19.7 in (500 mm) platter for 660 lb (300 kg). The PMC-1000SS has 40 × 25 × 25 in (1,016 × 635 × 635 mm) and a 25 in (635 mm) platter for 1,000 lb (454 kg). All three share the 12,000 rpm spindle rating and a 30+1 tool changer.
04
Haas lists 14,250 lb (6,463.8 kg) for the base machine on a domestic pallet of 168 × 92.5 × 110 in (427 × 235 × 280 cm). The rows for other configurations give 18,340 lb (8,319 kg) with the 70+1 tool changer and 17,100 lb (7,756 kg) with a conveyor and 120+1 changer. These are shipping figures, not the installed floor space.
05
Power: 220 VAC three-phase at 70 A or 440 VAC three-phase at 35 A. Air: 4 scfm at 100 psi (113 L/min at 6.9 bar), minimum 80 psi (5.5 bar). The coolant tank holds 55 gal (208 L).
