Haas Automation Vertical Machining Centers

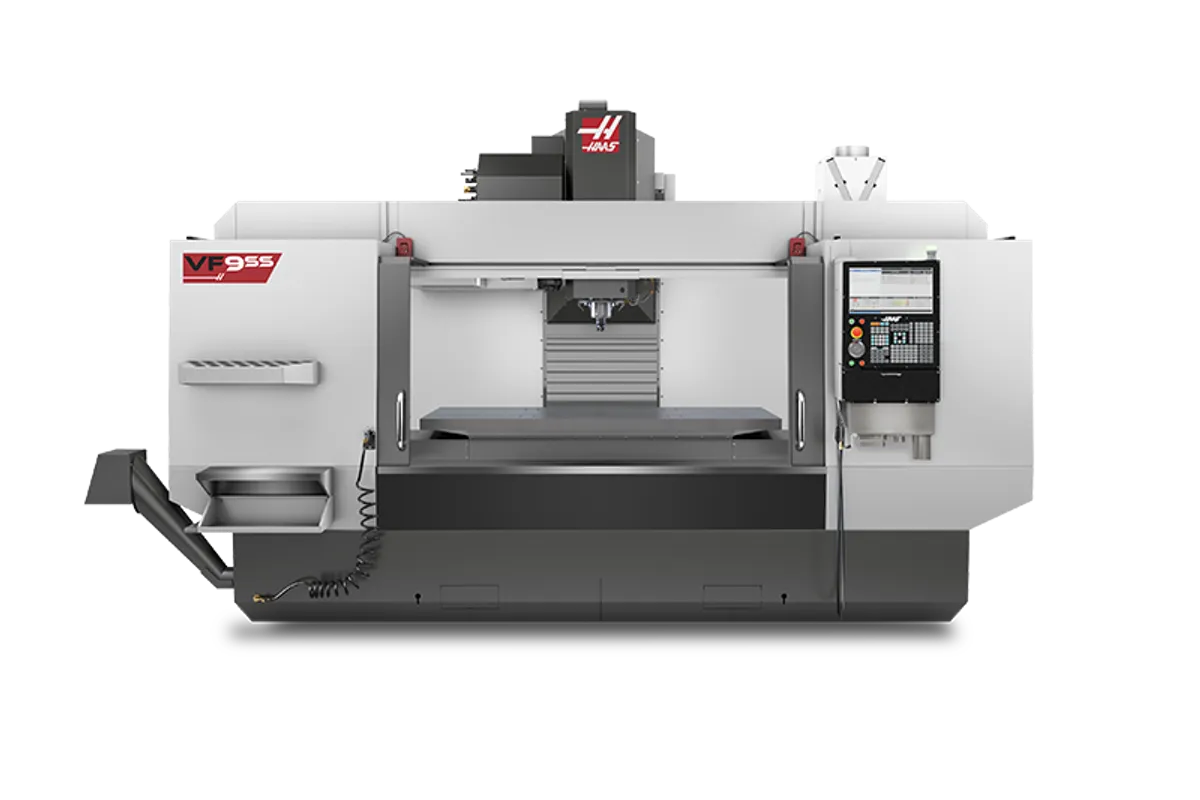

Haas VF-9SS

$195,000 - $260,000 Updated 2026-03-19

Key Specifications

X Travel

2,134 mm (84 in)

Y Travel

813 mm (32 in)

Z Travel

762 mm (30 in)

Max Spindle

12,000 RPM

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

30+1 SMTC

Overview

The Haas VF-9SS is the super-speed version of the VF-9, combining 2,134 x 813 x 762 mm (84 x 32 x 30 in) of travel with a 12,000 RPM inline direct-drive spindle. Seven feet of X-travel with high-speed cutting capability puts the VF-9SS in rare territory: very few manufacturers offer SS-class performance on a machine this large.

The 22.4 kW (30 hp) inline direct-drive spindle delivers 122 Nm (90 ft-lbf) of torque at 2,000 RPM while spinning to 12,000 RPM. Like all SS models, the direct-drive eliminates belts and gears for smoother high-RPM operation and better surface finishes. The CT40/BT40/HSK-A63 taper maintains compatibility with existing 40-taper tooling.

The table measures approximately 2,134 x 711 mm (84 x 28 in) with five T-slots on 125 mm centers and a 1,814 kg (4,000 lb) load capacity. Machine weight is approximately 12,247 kg (27,000 lb), providing substantial mass for vibration damping across the 84-inch span.

Rapid traverse runs at approximately 22.9 m/min (900 ipm) on all axes, reflecting the trade-off between travel distance and rapid rate. The 30+1 SMTC posts 1.8-second tool-to-tool and 2.4-second chip-to-chip times. The VF-9SS fills the gap between the VF-8SS at 78 inches and the VF-10 series at 120+ inches of X-travel, offering the optimal envelope for parts in the 6-to-7-foot range at high-speed cutting parameters. Specs derived from Haas Automation published data for the VF-9 and SS platform.

Full Specifications

Parameter	Value
X-Axis Travel	2,134 mm (84 in)
Y-Axis Travel	813 mm (32 in)
Z-Axis Travel	762 mm (30 in)
Spindle Nose To Table Max	864 mm (34 in)
Spindle Nose To Table Min	102 mm (4 in)
Max Spindle Speed	12,000 RPM
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Motor Power	30.0 hp
Spindle Torque Max	122 Nm (90 ft-lbf) @ 2,000 RPM
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Tool Capacity	30+1 SMTC
Tool To Tool	1.83 s
Chip To Chip	3.28 s
Max Tool Diameter	2.5 in
Max Tool Weight	12.0 lb
Max Tool Length	16.00 in
Table Size	2,134 x 711 mm (84 x 28 in)
Table Load Max	1,814 kg (4,000 lb)
T Slots	5 slots, 125 mm (4.92 in) center distance
Max Cutting Feedrate	21.2 m/min (833 ipm)
Rapid Traverse X	22.9 m/min (900 ipm)
Rapid Traverse Y	22.9 m/min (900 ipm)
Rapid Traverse Z	22.9 m/min (900 ipm)
Max Thrust X	3400 lbf
Max Thrust Y	3400 lbf
Max Thrust Z	3400 lbf
Machine Weight	12,247 kg (27,000 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 70 A
Electrical High	440 VAC 3-phase, 35 A
Travels	S.A.E
X Axis	84.00 in
Y Axis	40.00 in
Z Axis	30.00 in
Spindle Nose To Table	4.0 in
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	12000 rpm
Max Torque	90.0 ft-lbf @ 2000 rpm
Drive System	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection
Cooling	Coolant Jacket
Table	S.A.E
Length	84.0 in
Width	36.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	4.92 in
Number Of Std T Slots	7
Max Weight On Table	2000 lb
Feedrates	S.A.E
Max Cutting	833 ipm
Rapids On X	1200 ipm
Rapids On Y	1200 ipm
Rapids On Z	1200 ipm
Axis Motors	S.A.E
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	5.0 in
Max Tool Diameter Extra Large	6.0 in
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	214.0 in x 120.0 in x 128.5 in
Export Crate	214.0 in x 123.0 in x 130.5 in
Machine Weight	25200 lb
Domestic Pallet W Ec Option	214 in x 120 in x 135 in
Export Crate W Ec Option	214 in x 123 in x 139 in
Weight W Ec Option	28300 lb
Domestic Pallet W 501 Smtc	214 in x 120 in x 133 in
Export Crate W 501 Smtc	214 in x 123 in x 136 in
Weight W 501 Smtc	28300 lb
Domestic Pallet W Ec Option 501 Smtc	214 in x 120 in x 138 in
Export Crate W Ec Option 501 Smtc	214 in x 123 in x 144 in
Weight W Ec Option 501 Smtc	28300 lb
Haas Rotary	HAAS MACHINE
Ha2ts	VF-9SS
Ha5c	VF-9SS
Ha5c T	VF-9SS
Ha5c2	VF-9SS
Ha5c2 T	VF-9SS
Ha5c3	VF-9SS
Ha5c3 T	VF-9SS
Ha5c4	VF-9SS
Ha5c4 T	VF-9SS
Ha5cs	VF-9SS
Hqda5	VF-9SS
Hrc160	VF-9SS
Hrc210	VF-9SS
Hrt100	VF-9SS
Hrt160	VF-9SS
Hrt160 2	VF-9SS
Hrt160sp	VF-9SS
Hrt160ss	VF-9SS
Hrt200hs	VF-9SS
Hrt210	VF-9SS
Hrt210 2	VF-9SS
Hrt210ht	VF-9SS
Hrt210m	VF-9SS
Hrt210sp	VF-9SS
Hrt210ss	VF-9SS
Hrt210vm	VF-9SS
Hrt310	VF-9SS
Hrt310sp	VF-9SS
Hrt310ss	VF-9SS
Hrt450	VF-9SS
Hrt630	VF-9SS
Hrta5	VF-9SS
Hrta6	VF-9SS
Lt260	VF-9SS
Lt350	VF-9SS
T5c	VF-9SS
T5c2	VF-9SS
T5c3	VF-9SS
T5c4	VF-9SS
Th240	VF-9SS
Th450	VF-9SS
Tr160	VF-9SS
Tr160 2	VF-9SS
Tr200y	VF-9SS
Tr210	VF-9SS
Tr310	VF-9SS
Tr500ss	VF-9SS
Trt100	VF-9SS
Trt160	VF-9SS
Trt210	VF-9SS
Trt310	VF-9SS
Trt70	VF-9SS

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

12,000 RPM spindle on an 84-inch X-travel platform delivers high-speed performance for very large aluminum parts
2,134 mm (84 in) X-travel exceeds the VF-8SS by 6 inches, handling parts in the 6-to-7-foot range in a single setup
1.8-second tool-to-tool and 2.4-second chip-to-chip cut non-cutting time on multi-tool programs across the large table
12,247 kg machine mass provides excellent vibration damping across the full 84-inch span
30 HP direct-drive spindle retains torque for steel work while excelling at high-speed aluminum cutting
4,000 lb table load supports heavy fixtures and multi-part setups on the 84 x 28-inch table

Limitations

40-taper spindle limits heavy roughing in hard materials; the 50-taper VF-9/50 is needed for serious steel work
900 ipm rapids are slower than smaller SS models, adding non-cutting time on long traverse moves
27,000 lb machine weight requires reinforced floor, heavy rigging, and significant floor space
30+1 tool capacity may limit complex programs; the 50+1 option increases capability but adds cost

Best For

Aerospace shops machining long aluminum structural components, panels, and frames in the 6-7 foot range Mold shops running extra-large aluminum patterns and cavity work at high speeds Energy sector shops machining long aluminum housings and covers Job shops handling very large aluminum parts that exceed the VF-8SS's 78-inch reach Production environments machining long automotive tooling and fixtures from aluminum

Frequently Asked Questions

01 What does a new Haas VF-9SS cost?

Base price starts around $195,000. With through-spindle coolant, probing, chip conveyor, and common options, expect $230,000-$260,000.

02 How does the VF-9SS compare to the VF-8SS?

The VF-9SS adds 6 inches of X-travel (84 vs 78 in) and approximately 3,000 lb more machine weight. Rapids are slightly slower at 900 vs 1,000 ipm. The VF-9SS costs roughly $20K more. Choose it when parts genuinely exceed the VF-8SS's 78-inch reach.

03 Why not jump to the VF-11 for extra-long parts?

The VF-11 offers 120 inches of X but is not available in SS configuration. If you need high-speed spindle performance on parts in the 6-7 foot range, the VF-9SS is the largest SS model with competitive rapids. Parts over 84 inches require the standard-speed VF-10 or VF-11.

04 Can the VF-9SS handle steel?

Yes. The 30 HP spindle with 122 Nm at 2,000 RPM handles mild steel and stainless at reduced spindle speeds. For dedicated steel work on parts this large, the VF-9/50 with the 50-taper spindle is the better choice.
