Goodway GTH-2000

Q: How much does the Goodway GTH-2000 cost?

The price estimate for the Goodway GTH-2000 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/goodway-gth-2000#price; the request is passed to Goodway or an authorised dealer.

Specs verified 2026-10-04 · goodwaycnc.com Updated 2026-10-04

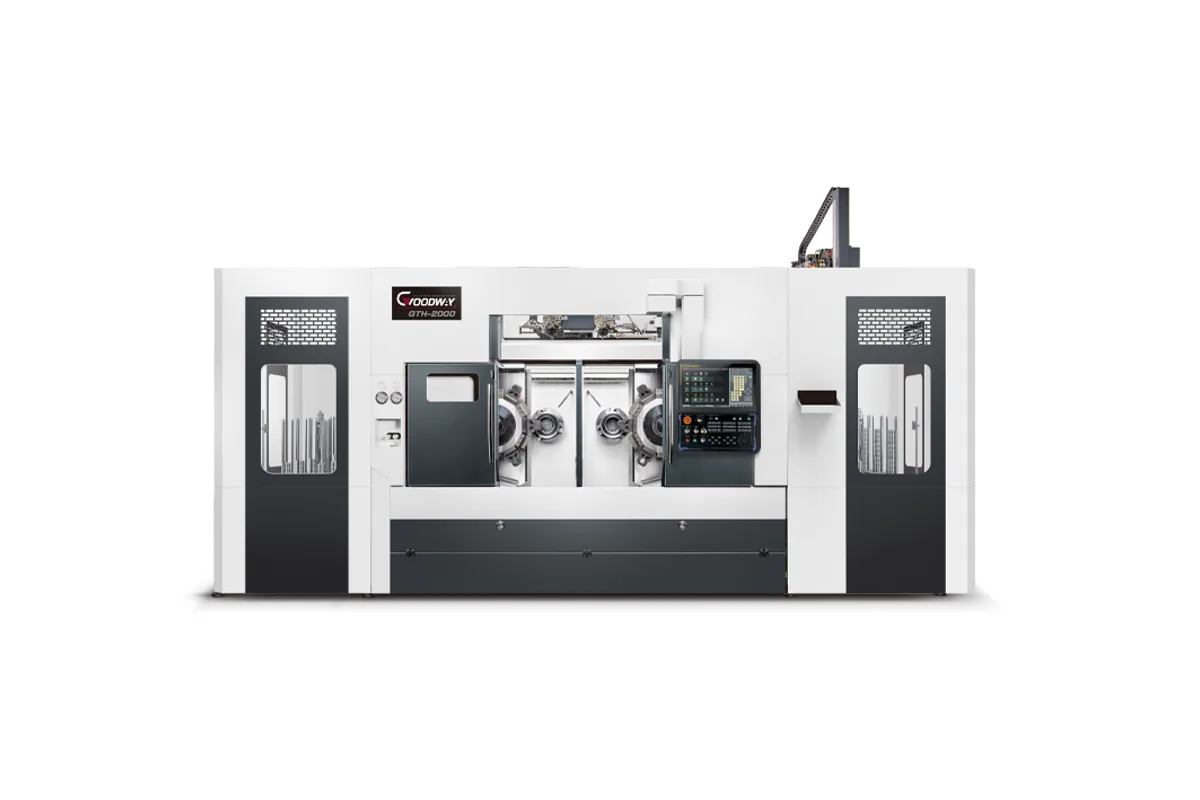

Goodway GTH series parallel twin spindle turning centers (GTH-2000)

Image: goodwaycnc.com, Goodway

Key Specifications

Spindle Power

11 kW (14.8 hp) (opt. 18.5 kW (24.8 hp)) (cont.)

Max Turn Length

205 mm (8.1 in)

max turning diameter

Ø300 mm (11.8 in)

chuck size

10"

spindle nose

A2-6

spindle power 30 min

15 kW (20.1 hp) (opt. 22 kW (29.5 hp)) (30 min.)

How much does the Goodway GTH-2000 cost?

Price estimate

Uncertain

We do not have a price for the Goodway GTH-2000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Goodway's GTH-2000 applies the parallel twin-spindle, gantry-loaded layout of the GTH series to 10 in chuck work. It turns Ø300 mm (11.8 in) and 205 mm (8.1 in) long on each of two side-by-side spindles with A2-6 noses.

The jump in turning length matters more than the jump in diameter. The GTH-1500 is limited to 80 mm (3.1 in), which restricts it to thin discs. At 205 mm the GTH-2000 can take hubs, housings and short stepped parts as well.

Each spindle is rated 11 kW (14.8 hp) continuous and 15 kW (20.1 hp) for 30 min. as standard, with a 24 ~ 4,000 rpm range. For heavier cuts an 18.5 kW (24.8 hp) continuous, 22 kW (29.5 hp) 30 min. motor is optional, and so is a 24 ~ 4,500 rpm range. Goodway says the spindles are driven by FANUC motors.

Automation is part of the base machine. The gantry robotic arm is listed as standard, and the builder describes automatic loading, front and rear cutting, unloading and workpiece detection as one coordinated process. Feeding stations come in disc and shaft types. Chips leave through a rear-exit conveyor, which keeps the front and sides free when machines are lined up.

A 12-station servo turret serves each spindle. Buyers who need driven tools choose the M variation: a 12-station live tooling turret, or optionally a 16-station one, at 6,000 rpm, plus a Cf-type C-axis.

Full Specifications

Parameter	Value
Max Turning Diameter	Ø300 mm (11.8 in)
Max Turning Length	205 mm (8.1 in)
Chuck Size	10"
Spindle Nose	A2-6
Spindle Motor Power	11 kW (14.8 hp) (opt. 18.5 kW (24.8 hp)) (cont.)
Spindle Power 30 Min	15 kW (20.1 hp) (opt. 22 kW (29.5 hp)) (30 min.)
Spindle Speed Range	24 ~ 4,000 rpm (opt. 24 ~ 4,500 rpm)
Turret Stations	12
Live Tooling Stations	12 (opt. 16) (opt.)
Live Tooling Speed	6,000 rpm (opt.)
Gantry Robotic Arm	Standard

Specifications sourced from goodwaycnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

205 mm (8.1 in) of turning length, far more than the 80 mm (3.1 in) of the GTH-1500
11 kW (14.8 hp) continuous per spindle, with 18.5 kW (24.8 hp) optional
Gantry robotic arm as standard
Optional 16-station live tooling turret at 6,000 rpm
Rear-exit chip conveyor for close line layouts

Limitations

Standard top speed is 4,000 rpm
Turning diameter is Ø300 mm (11.8 in), small for a 10 in chuck
No bar capacity or tailstock is listed, so it is a chucking machine only
Live tooling and C-axis require the M variation

Best For

Hubs, housings and discs up to Ø300 mm (11.8 in) in automated production Two-operation chucked parts, one face on each spindle Heavier cuts using the optional 18.5 kW (24.8 hp) motor

Frequently Asked Questions

01 What is the capacity of the GTH-2000?

Maximum turning diameter is Ø300 mm (11.8 in) and maximum turning length 205 mm (8.1 in), with a 10 in chuck on an A2-6 spindle nose. Both parallel spindles have the same figures.

02 How does the GTH-2000 differ from the GTH-1500?

The GTH-1500 has 6 in or 8 in chucks, turns Ø240 mm (9.4 in) and 80 mm (3.1 in) long, and has a 5.5 kW (7.4 hp) continuous standard motor. The GTH-2000 has a 10 in chuck, turns Ø300 mm (11.8 in) and 205 mm (8.1 in) long, and starts at 11 kW (14.8 hp) continuous.

03 What spindle power options does the GTH-2000 have?

Standard is 11 kW (14.8 hp) continuous and 15 kW (20.1 hp) for 30 min. The optional motor is 18.5 kW (24.8 hp) continuous and 22 kW (29.5 hp) for 30 min. Speed range is 24 ~ 4,000 rpm, with 24 ~ 4,500 rpm as an option.

04 Can the GTH-2000 be part of a production line?

Yes. Goodway states that it integrates with multiple GTH series machines or other machining equipment, and that single and twin spindle models, a workpiece flipping device and the gantry robot arm can be configured into a line.
