Goodway GTZ-1500

Q: How much does the Goodway GTZ-1500 cost?

The price estimate for the Goodway GTZ-1500 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/goodway-gtz-1500#price; the request is passed to Goodway or an authorised dealer.

Specs verified 2026-10-04 · goodwaycnc.com Updated 2026-10-04

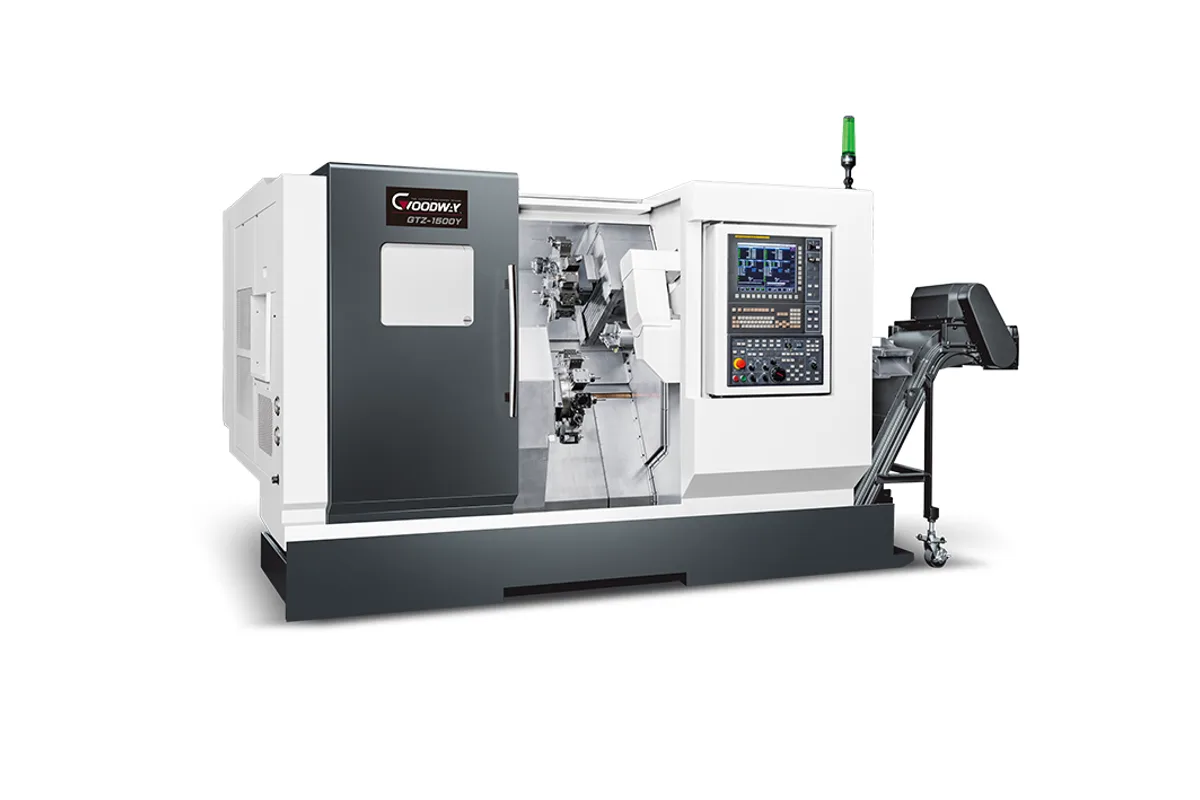

Goodway GTZ-1500 series multi-turret turning centers (GTZ-1500)

Image: goodwaycnc.com, Goodway

Key Specifications

Spindle Power

7.5 kW (10.1 hp); 7.5 kW (10.1 hp) (opt. 11 kW (14.8 hp)); 7.5 kW (10.1 hp) (opt. 11 kW (14.8 hp)) (cont.)

Max Turn Length

590 mm (23.2 in)

max swing diameter

Ø200 mm (7.9 in)

max turning diameter

Ø180 mm (7.1 in); Ø200 mm (7.9 in); Ø200 mm (7.9 in)

chuck size

bar capacity

Ø45 mm (1.8 in); Ø51 mm (2.0 in); Ø65 mm (2.6 in)

How much does the Goodway GTZ-1500 cost?

Price estimate

Uncertain

We do not have a price for the Goodway GTZ-1500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Goodway GTZ-1500 puts two spindles and two turrets, one above and one below the centerline, on a 60° slant bed within a 6.5 m2 footprint. Either turret can work on either spindle, and both can cut the same part at once for balanced turning. It is a bar machine with 6 in chucks.

Goodway offers three spindle versions and prints them as three columns. The Ø45 mm (1.8 in) version runs to 6,000 rpm, the Ø51 mm (2.0 in) version to 5,000 rpm and the Ø65 mm (2.6 in) version to 4,500 rpm. The first two use an A2-5 spindle nose and the largest an A2-6. Motors are 7.5 kW (10.1 hp) continuous and 11 kW (14.8 hp) for 15 min., with an 11 kW continuous upgrade listed for the two larger bores.

Travel figures show how the two turrets differ. The upper turret has 150 mm (5.9 in) in X1, 590 mm (23.2 in) in Z1 and a Y1 stroke of ±42 mm (±1.7 in). The lower turret has 137 mm (5.4 in) or 142 mm (5.6 in) in X2 depending on the spindle version, 561 mm (22.1 in) in Z2 and ±33 mm (±1.3 in) in Y2. Spindle 2 slides 625 mm (24.6 in) on its Zs axis to take the part.

Tool count is the other strength. Each turret has 12 stations, or 24 as an option, so Goodway counts up to 48 tools on the machine. Twelve stations per turret can be live. Turning length is 590 mm (23.2 in) and swing Ø200 mm (7.9 in).

Full Specifications

Parameter	Value
Max Swing Diameter	Ø200 mm (7.9 in)
Max Turning Diameter	Ø180 mm (7.1 in); Ø200 mm (7.9 in); Ø200 mm (7.9 in)
Max Turning Length	590 mm (23.2 in)
Chuck Size	6"
Bar Capacity	Ø45 mm (1.8 in); Ø51 mm (2.0 in); Ø65 mm (2.6 in)
Spindle Nose	A2-5; A2-5; A2-6
Spindle Motor Power	7.5 kW (10.1 hp); 7.5 kW (10.1 hp) (opt. 11 kW (14.8 hp)); 7.5 kW (10.1 hp) (opt. 11 kW (14.8 hp)) (cont.)
Spindle Power 15 Min	11 kW (14.8 hp); 11 kW (14.8 hp) (opt. 15 kW (20.1 hp)); 11 kW (14.8 hp) (opt. 15 kW (20.1 hp)) (15 min.)
Spindle Speed Range	6,000 rpm; 5,000 rpm; 4,500 rpm
X1 Axis Travel	150 mm (5.9 in)
X2 Axis Travel	137 mm (5.4 in); 142 mm (5.6 in); 142 mm (5.6 in)
Z1 Axis Travel	590 mm (23.2 in)
Z2 Axis Travel	561 mm (22.1 in)
Zs Axis Travel	625 mm (24.6 in)
Y1 Axis Travel	±42 mm (±1.7 in)
Y2 Axis Travel	±33 mm (±1.3 in)
Turret Stations	12 + 12 (opt. 24 + 24)
Live Tooling Stations	12 + 12

Specifications sourced from goodwaycnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Upper and lower turrets that can each serve either spindle or cut together
Up to 48 tools with the optional 24-station turrets
Y travel on both turrets: ±42 mm (±1.7 in) upper and ±33 mm (±1.3 in) lower
Three bar capacities, from Ø45 mm (1.8 in) at 6,000 rpm to Ø65 mm (2.6 in) at 4,500 rpm
6.5 m2 footprint on a one-piece 60° slant bed

Limitations

Swing is Ø200 mm (7.9 in), and turning diameter Ø180 mm (7.1 in) on the Ø45 mm version
Standard spindle motor is 7.5 kW (10.1 hp) continuous
Lower turret travels are shorter than the upper turret's in X, Y and Z
Programming two turrets and two spindles together takes skilled staff

Best For

Complex bar parts up to Ø65 mm (2.6 in) made complete in one cycle High-volume work where two turrets cutting at once shorten the cycle Parts needing many tools, using the 24-station turrets

Frequently Asked Questions

01 How many tools can the GTZ-1500 carry?

The upper and lower turrets have 12 stations each as standard and 24 each as an option. Goodway states that this allows a single machine to be equipped with up to 48 tools. The table lists 12 live tooling stations per turret.

02 Which bar capacities are available on the GTZ-1500?

Three: Ø45 mm (1.8 in), Ø51 mm (2.0 in) and Ø65 mm (2.6 in). Maximum spindle speed is 6,000 rpm, 5,000 rpm and 4,500 rpm respectively. All three use 6 in chucks, and spindle 1 and spindle 2 have identical specifications.

03 Do both turrets of the GTZ-1500 have a Y-axis?

Both can. Y1 on the upper turret travels ±42 mm (±1.7 in) and Y2 on the lower turret ±33 mm (±1.3 in). Goodway's feature list calls the Y-axis control optional for both turrets, while the model variation shown is Y, with live tooling turret, C-axis and Y-axis.

04 How does the GTZ-1500 compare with the GTZ-2600?

The GTZ-2600 is the larger machine, with 8 in big-bore chucks, a Ø270 mm (10.6 in) swing and 11 kW (14.8 hp) continuous spindles limited to 4,000 rpm. The GTZ-1500 has 6 in chucks, a Ø200 mm (7.9 in) swing and speeds up to 6,000 rpm.
