Johnford HT-60-2S
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
swing over bed
swing over cross slide
distance between centers
How much does the Johnford HT-60-2S cost?
Price estimate
We do not have a price for the Johnford HT-60-2S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 1,500 mm (59 in) between centers and the same travel on Z, the Johnford HT-60-2S is the mid-length sub-spindle lathe of the large HT frame. One 12-station turret works on a 45° bed with 320 mm (12.6 in) of X travel.
What the extra bed buys over the HT-40-2S, which stops at 1,000 mm (39.4 in), is room for parts that are both long and need their far end machined: hydraulic cylinder tubes, rolls with journals, pipe with a connection at each end. The part is turned as far as the turret can reach, gripped by the sub-spindle, and its first end is then free.
Swing over the bed is Ø730 mm (28.7 in) and swing over the cross slide Ø600 mm (23.6 in). The main spindle is chosen from five variants. The table gives B as an A2-11 nose with a Ø132.5 mm (5.2 in) bore and Ø116 mm (4.6 in) bar capacity at 2,000 rpm, and D as an A2-15 nose with Ø165 mm (6.5 in) bar capacity at 1,000 rpm. Motors are 22 / 26 kW (29.5 / 34.9 hp) on A and B and 30 / 37 kW (40.2 / 49.6 hp) on C, D and E.
For long work the options list matters: manual steady rests made by Johnford, hydraulic steady rests with manual travelling or a CNC motor, and an independent boring bar system on the lower guideways. Weight runs from 18,500 kg (40,700 lb) to 18,700 kg (41,140 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | Ø730 mm (Ø28.7 in) |
| Swing Over Cross Slide | Ø600 mm (Ø23.6 in) |
| Distance Between Centers | 1,500 mm (59 in) |
| Chuck Size | A: Ø315 mm (Ø12 in) / B: Ø381 mm (Ø15 in) / C, D: Ø510 mm (Ø20 in) / E: Ø610 mm (Ø24 in) |
| Chuck Size Optional | A: Ø381 mm (Ø15 in) / B: Ø450 mm (Ø18 in) / C, D: Ø610 mm (Ø24 in) |
| Bar Capacity | A: Ø91 mm (Ø3.6 in) / B: Ø116 mm (Ø4.6 in) / C: Ø139 mm (Ø5.5 in) / D: Ø165 mm (Ø6.5 in) / E: Ø204 mm (Ø8 in) |
| Bar Capacity Optional | A: Ø95 mm (Ø3.7 in) |
| Spindle Nose | A: A2-8 / B: A2-11 / C: A2-12 / D, E: A2-15 |
| Spindle Bore | A: Ø115 mm (Ø4.5 in) / B: Ø132.5 mm (Ø5.2 in) / C: Ø152 mm (Ø6 in) / D: Ø185 mm (Ø7.3 in), Geared head Ø176 mm (Ø6.9 in) / E: Ø236 mm (Ø9.3 in) |
| Spindle Transmission | A, B: Auto Hi-Lo / C, D, E: Auto 4-steps |
| Spindle Transmission Optional | B: Auto 4-steps |
| Max Spindle Speed | A: 3,000 rpm for 12 in chuck, 2,000 rpm for 15 in chuck / B: 2,000 rpm for Hi-Lo / C: 1,200 rpm / D: 1,000 rpm / E: 750 rpm |
| Spindle Speed Optional | B: 2,000 rpm for Auto 4-steps |
| Spindle Motor Power | A, B: 22 / 26 kW (29.5 / 34.9 hp); C, D, E: 30 / 37 kW (40.2 / 49.6 hp) |
| Spindle Power Optional | B: 30 / 37 kW (40.2 / 49.6 hp); C, D, E: 37 / 45 kW (49.6 / 60.3 hp) |
| Spindle Bearing Diameter | A: Ø160 mm (Ø6.3 in) / B: Ø180 mm (Ø7 in) / C: Ø200 mm (Ø7.9 in) / D: Ø240 mm (Ø9.4 in) / E: Ø280 mm (Ø11 in) |
| Sub Spindle Chuck Size | A: Ø315 mm (Ø12 in) / B, C, D, E: Ø381 mm (Ø15 in) |
| Sub Spindle Chuck Size Optional | A: Ø381 mm (Ø15 in) |
| Sub Spindle Bar Capacity | Ø91 mm (Ø3.6 in) (Std.) / Ø95 mm (Ø3.7 in) (Opt.) / Ø116 mm (Ø4.6 in) (Opt. for A2-11) |
| Sub Spindle Nose | A2-8 (Std.) / A2-11 (Opt.) |
| Sub Spindle Bore | Ø115 mm (Ø4.5 in) (Std.) / Ø132.5 mm (Ø5.2 in) (Opt.) |
| Sub Spindle Speed | A: 3,000 rpm for 12 in chuck, 2,000 rpm for 15 in chuck / B: 2,000 rpm / C: 1,500 rpm / D: 1,000 rpm / E: 750 rpm |
| Sub Spindle Power | A: 9 / 11 kW (12.1 / 14.8 hp); B: 11 / 15 kW (14.8 / 20.1 hp); C, D, E: 15 / 18.5 kW (20.1 / 24.8 hp) |
| Sub Spindle Bearing Diameter | Ø160 mm (Ø6.3 in) (Std.) / Ø180 mm (Ø7.1 in) (Opt.) |
| Turret Stations | 12 |
| X Axis Travel | 320 mm (12.6 in) |
| Z Axis Travel | 1,500 mm (59 in) |
| Rapid Traverse Rate | X: 12 m/min (472 ipm); Z: 15 m/min (591 ipm); W: 10 m/min (394 ipm) |
| Servo Motor X | 4 kW |
| Servo Motor Z1 Z2 | 4 kW |
| Servo Motor W | 4 kW |
| Bed Inclination | 45° |
| Machine Weight | A: 18,500 kg (40,700 lb) / B: 18,550 kg (40,810 lb) / C: 18,600 kg (40,920 lb) / D: 18,650 kg (41,030 lb) / E: 18,700 kg (41,140 lb) |
| Machine Dimensions | 5,600 x 3,470 x 2,840 mm (220.5 x 136.6 x 111.8 in) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,500 mm (59 in) of Z travel with a sub-spindle for the second end
- Main bar capacity up to Ø204 mm (8 in) with variant E
- Optional 37 / 45 kW (49.6 / 60.3 hp) motor on variants C, D and E
- Manual and hydraulic steady rests are listed options
- Heavy box ways on all axes
Limitations
- No tailstock: a sub-spindle replaces it, so long parts rely on the sub-spindle or a steady rest for support
- Sub-spindle bar capacity is Ø91 mm (3.6 in) as standard, whatever the main spindle
- Rapids are 12 m/min on X and 15 m/min on Z, slower than the 15 m/min and 18 m/min of the HT-35-2S
- Steady rests and the boring bar system are extra
Best For
Frequently Asked Questions
01
In bed length. The HT-40-2S has 1,000 mm (39.4 in) between centers, the HT-60-2S 1,500 mm (59 in) and the HT-80-2S 2,000 mm (78.7 in). Spindle variants, X travel and the turret are shared. Swing over the bed drops slightly with length: Ø750 mm (29.5 in) on the HT-40-2S, Ø730 mm (28.7 in) here and Ø710 mm (28 in) on the HT-80-2S.
02
The sub-spindle takes the place of the tailstock and can hold the free end. For support along the length, Johnford lists manual steady rests and hydraulic steady rests with manual travelling or a CNC motor as options.
03
Standard motors are 22 / 26 kW (29.5 / 34.9 hp) for variants A and B and 30 / 37 kW (40.2 / 49.6 hp) for C, D and E. Optional motors are 30 / 37 kW (40.2 / 49.6 hp) for B and 37 / 45 kW (49.6 / 60.3 hp) for C, D and E.
04
5,600 x 3,470 x 2,840 mm (220.5 x 136.6 x 111.8 in). The weight depends on the spindle variant, from 18,500 kg (40,700 lb) for A to 18,700 kg (41,140 lb) for E.
More from Johnford
Other CNC Lathes / Turning Centers

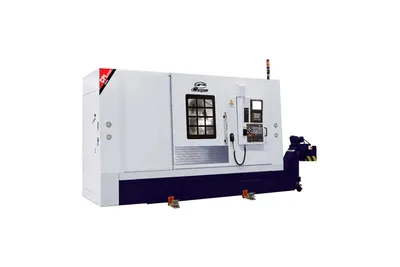

Campro CPL-3010Y

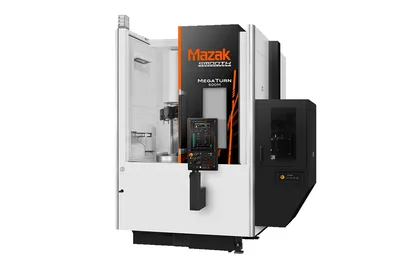

Mazak MEGA TURN 500
