Feeler VUX-300T
Image: feeler.com, Feeler
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
How much does the Feeler VUX-300T cost?
Price estimate
We do not have a price for the Feeler VUX-300T that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

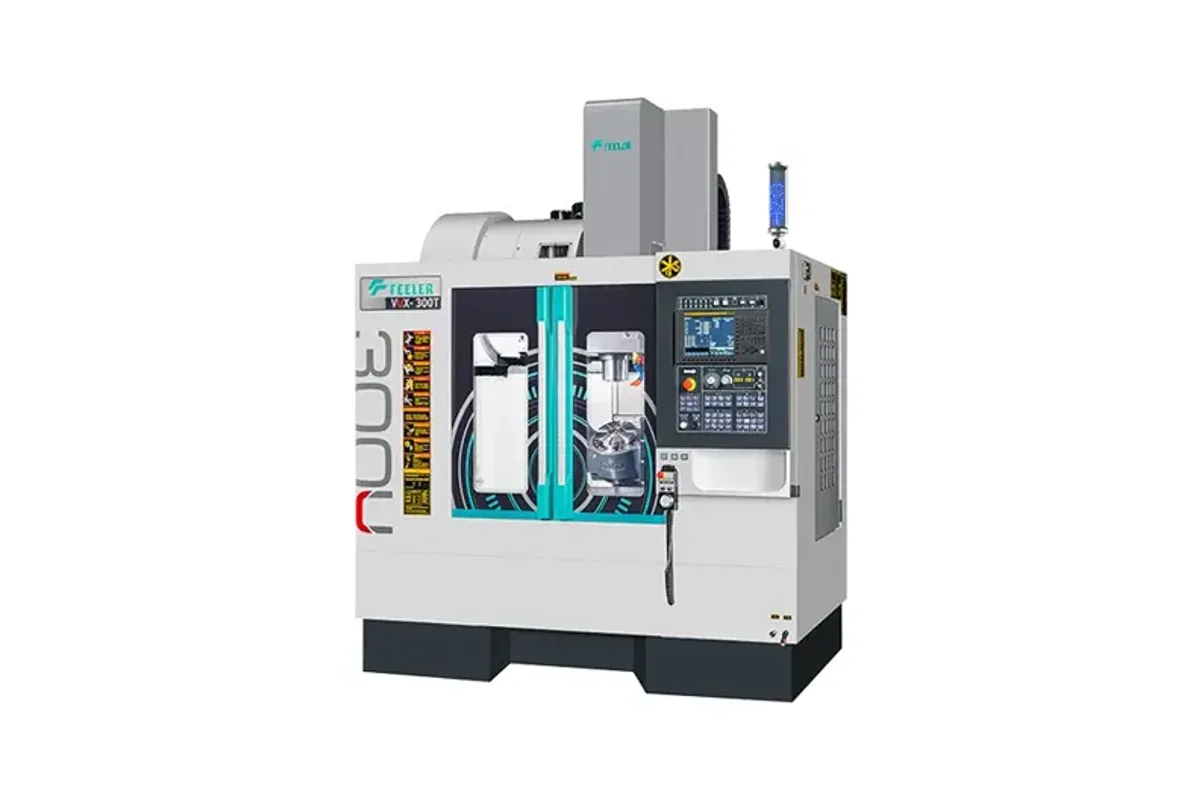

Milling and turning on one small 5-axis table is what the Feeler VUX-300T adds to the VUX series. Feeler says the model emphasizes flexible milling and turning integration, and the spindle interface changes accordingly, from the 7/24 taper of the VUX-300 to HSK-A63.
The rotary side is fully specified for this model. The A axis tilts from -30° to +120°, the C axis rotates 360°, and the table is Ø200 mm. Feeler's table lists the A range as -30~+120° and the load as 75/75 (H/V) kg, the same 75 kg whether the table is horizontal or vertical. A tilt of 120° past horizontal lets the tool reach under a flange or into a back-angled port without re-clamping.
Linear travels are 510 mm (20.1 in) in X, 420 mm (16.5 in) in Y and 345 mm (13.6 in) in Z. Rapids are 36/36/32 m/min, and the spindle is a 12,000 rpm high-speed unit. The magazine holds 20 tools, a number to weigh carefully, because a mill-turn job needs turning holders as well as rotating tools in the same magazine.
Two supporting features are named by the maker. A triple-tank coolant filtration system keeps the cutting fluid clean, which matters when turning produces stringy chips alongside fine milling swarf. AICC II high-speed precision control and Manual Guide i simulation are listed for the control. The page does not give the turning speed of the C axis, which decides how small a diameter can be turned at a proper surface speed.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | φ200 mm (φ7.9 in) |
| Max Table Load | 75/75 (H/V) kg (165/165 (H/V) lb) |
| X Axis Travel | 510 mm (20.1 in) |
| Y Axis Travel | 420 mm (16.5 in) |
| Z Axis Travel | 345 mm (13.6 in) |
| A Axis Range | -30~+120° |
| C Axis Range | 0~360° |
| Max Spindle Speed | 12,000 rpm |
| Spindle Taper | HSK-A63 |
| Rapid Traverse X | 36 m/min (1,417 ipm) |
| Rapid Traverse Y | 36 m/min (1,417 ipm) |
| Rapid Traverse Z | 32 m/min (1,260 ipm) |
| Tool Capacity | 20 |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Milling and turning integration on a 5-axis table, per Feeler
- A axis tilts from -30° to +120° with 360° C rotation
- HSK-A63 spindle interface at 12,000 rpm
- Equal 75 kg load rating horizontal and vertical
- Triple-tank coolant filtration, AICC II and Manual Guide i simulation named for the model
Limitations
- Table is Ø200 mm with a 75 kg limit
- Z travel of 345 mm (13.6 in), less than the 395 mm of the VUX-300
- 20 tools must cover both turning and milling
- No C-axis turning speed or spindle power is published
Best For
Frequently Asked Questions
01
Feeler says the VUX-300T emphasizes flexible milling and turning integration. It pairs an HSK-A63 spindle with a Ø200 mm table whose C-axis rotates 360°. The turning speed of the table is not published.
02
The A-axis tilts from -30° to +120° and the C-axis rotates 360°, according to both the series text and the spec table for this model.
03
510 x 420 x 345 mm (20.1 x 16.5 x 13.6 in) in X, Y and Z. Feeler quotes rapid traverse of 36/36/32 m/min for the VUX-300T.
04
Feeler lists AICC II high-speed precision control and Manual Guide i simulation, saying they enhance both efficiency and machining accuracy. The control model itself is not named on the series page.
