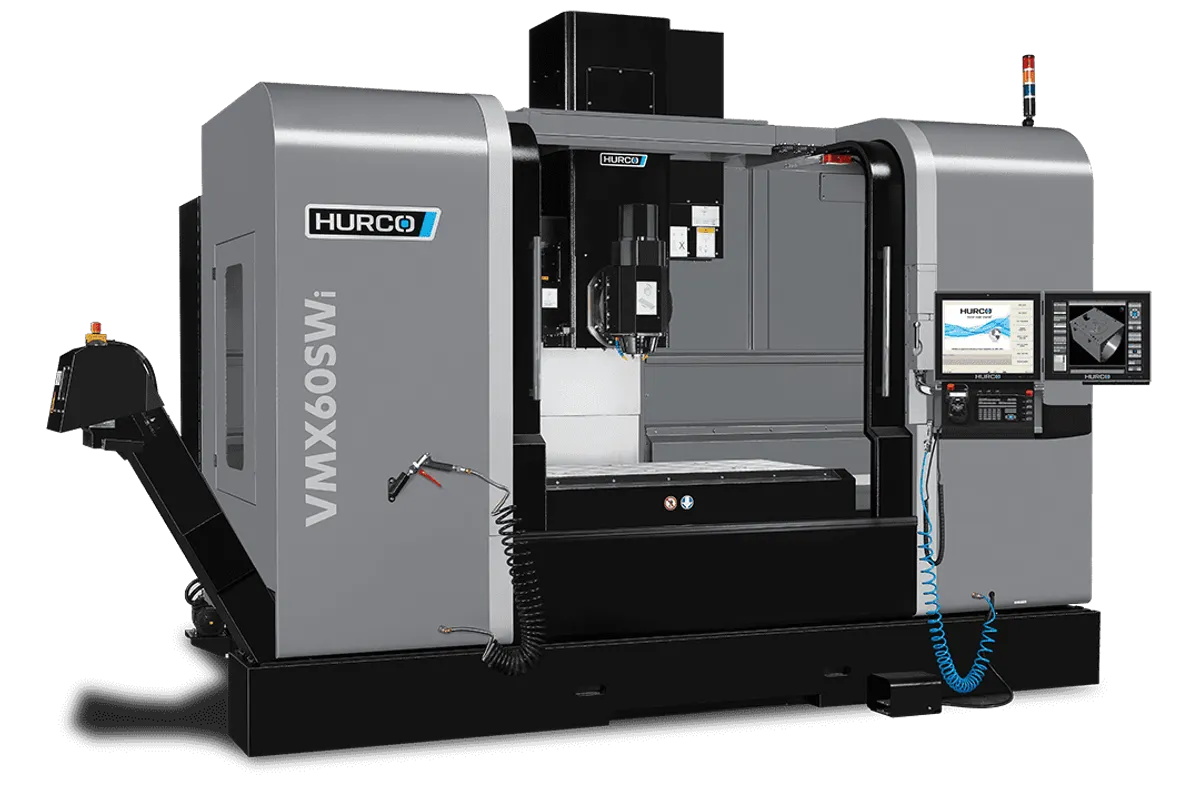

Hurco VMX60SWi

$270,000 - $350,000 (new) | $150,000 - $240,000 (used) Updated 2025-03-15

Key Specifications

X Travel

1,524 mm (60 in)

Y Travel

660 mm (26 in)

Z Travel

610 mm (24 in)

Max Spindle

12,000 RPM

Spindle Taper

CAT 40 / Big Plus

Tool Capacity

Overview

The Hurco VMX60SWi is the 60-inch swivel-head variant, designed for shops that need angular spindle access on large, heavy workpieces. Like the VMX42SWi, this machine uses a B-axis swivel head without a rotary table, providing 4+1 axis capability with maximum table rigidity and load capacity.

Travels are 1,524 x 660 x 610 mm (60 x 26 x 24 in) with a 1,676 x 660 mm (66 x 26 in) fixed table rated for 2,000 kg (4,410 lb). That's the highest table capacity in Hurco's SWi lineup and more than any SRTi model — the absence of a rotary table mechanism means every kilogram of capacity goes to your workpiece and fixturing.

The B-axis swivels +/-92 degrees, providing angular access to steep walls, undercuts, and angled features. B-axis rapid runs at 50 RPM. The spindle-to-table clearance ranges from 102 to 711 mm (4 to 28 in), accommodating tall parts and long fixtures.

The spindle runs 12,000 RPM through a CAT 40 / Big Plus taper, delivering 36.5 kW (48 hp) of peak power with 120.2 Nm (88.7 ft-lbs) of torque at 2,900 RPM. The 40-tool ATC handles standard tooling with 76 mm max diameter and 249 mm max length. Rapids run 32 m/min (1,259 ipm) on X/Y and 24 m/min (945 ipm) on Z.

At 9,900 kg (21,780 lb), this is a substantial machine requiring a reinforced foundation. Floor space is 5,606 x 3,930 mm (221 x 155 in) and power draw is 54 KVA. WinMax control handles the full range from conversational programming to CAM-driven toolpaths.

New pricing runs $270,000-$350,000. This machine targets shops machining oversized, heavy workpieces that need angular spindle access without the complexity and cost of full 5-axis rotary table systems.

Full Specifications

Parameter	Value
X-Axis Travel	1,524 mm (60 in)
Y-Axis Travel	660 mm (26 in)
Z-Axis Travel	610 mm (24 in)
B Axis Range	+/- 92°
Max Spindle Speed	12,000 RPM
Spindle Taper	CAT 40 / Big Plus
Spindle Motor Power	48 hp (36.5 kW)
Spindle Torque	88.7 ft. lbs @ 2,900 rpm (120.2 Nm @ 2,900 rpm)
Tool Capacity	40
Table Size	66 x 26 in (1,676 x 660 mm)
Max Table Load	2,000 kg (4,410 lb)
Rapid Traverse Xy	32 m/min (1,259 ipm)
Rapid Traverse Z	24 m/min (945 ipm)
Rotary Axis Rapid B	50 RPM
Max Tool Diameter	3 in (76 mm)
Max Tool Length	9.8 in (249 mm)
Max Tool Weight	15.4 lbs (7 kg)
Machine Weight	9,900 kg (21,780 lb)
Floor Space	5,606 x 3,930 mm (221 x 155 in)
CNC Control	Hurco WinMax
Travels Capacityx Y Z Axis Travel	60 x 26 x 24 in (1,524 x 660 x 610 mm)
B Axis Travel	+/-92°
Spindle Nose To Table	4 / 28 in (102 / 711 mm)
Max Weight On Table	4,410 lbs (2,000 kg)
T Slot Size	6 x .71 in (6 x 18 mm)
Spindlemax Spindle Speed	12,000 rpm
Tool Changertool Type	CAT, BT, DIN 40
Feedratesrapid Traverse Xyz Axis	1,259, 1,259, 945 in/min (32, 32, 24 m/min)
Max Programmable Feedrate	945 in/min (24 m/min)
Rapid Traverse B Axis	50 rpm
Sizemax Operating Floor Space	220.7 x 154.7 in (5,606 x 3,930 mm)
Machine Height	133.0 in (3,378 mm)
Machine Weight	21,780 lb (9,900 kg)
Electricalpower Rating Full Load Kva	54 KVA

Specifications sourced from hurco.com — verified 2026-03-28

Strengths & Limitations

Strengths

2,000 kg (4,410 lb) table load is the highest in any Hurco SWi, handling the heaviest workpieces in the lineup
60 inches of X travel with B-axis swivel provides angular access across a massive work envelope
36.5 kW (48 hp) spindle drives through heavy cuts on large steel and cast iron parts
No rotary table means simpler mechanics, higher reliability, and lower maintenance costs than SRTi variants
66 x 26 inch table accommodates large workpieces and multi-part setups for batch production
9,900 kg machine weight provides excellent vibration damping for heavy-duty cutting

Limitations

No C-axis rotary limits to 4+1 indexed operations — no full 5-axis simultaneous machining
5,606 x 3,930 mm footprint demands substantial floor space
32/24 m/min rapids are relatively slow for the travel distances, adding non-cutting time
CAT 40 taper may limit heavy roughing capability at the extreme end of what this machine's envelope allows
Parts requiring more than 4+1 sided access must be manually repositioned

Best For

Heavy equipment manufacturers machining large castings and forgings needing angled features Energy sector shops cutting large valve bodies, pump housings, and turbine components Die shops machining oversized die blocks requiring B-axis angular access from multiple positions Aerospace shops producing large aluminum structural panels and frames with angled hole patterns Shops machining workpieces exceeding 1,000 kg that need more than 3-axis capability Contract manufacturers handling heavy, oversized parts across industrial sectors

Frequently Asked Questions

01 What does a Hurco VMX60SWi cost?

New pricing runs $270,000-$350,000 depending on options. This is less than the VMX60SRTi ($320-420K) since no rotary table system is included. Used machines sell for $150,000-$240,000 depending on age, hours, and condition.

02 When should I choose the SWi over the SRTi?

Choose the SWi when your parts are very heavy (over 500 kg), you don't need C-axis rotation, and your work is primarily 4+1 indexed operations. The SWi saves $50-70K over the SRTi and provides 640 kg more table capacity (2,000 vs 1,360 kg). Choose the SRTi when you need full 5-axis capability with rotary table positioning.

03 Can I add a rotary table later?

You can bolt a standalone rotary table to the fixed table, but it won't be integrated into the WinMax control for simultaneous interpolation. For full 5-axis integration, buy the SRTi from the start. A bolt-on rotary works for basic indexing but lacks the accuracy and control integration of the factory-installed system.

04 How does the VMX60SWi compare to a standard VMX60i 3-axis?

The SWi adds the B-axis swivel head for angular spindle access, which eliminates compound angle fixtures and reduces setup time on parts with angled features. The trade-off is higher cost ($70-100K more), more complex maintenance, and the swivel-head mechanism's additional weight. If your parts have angled holes or features, the SWi pays for itself quickly in reduced setup time.

05 What kind of foundation does the VMX60SWi require?

A reinforced concrete pad at least 250 mm thick, designed for the 9,900 kg machine weight plus dynamic cutting forces and 2,000 kg workpiece loads. Anchor bolts are essential. Hurco provides a foundation layout with recommended reinforcement specifications.
