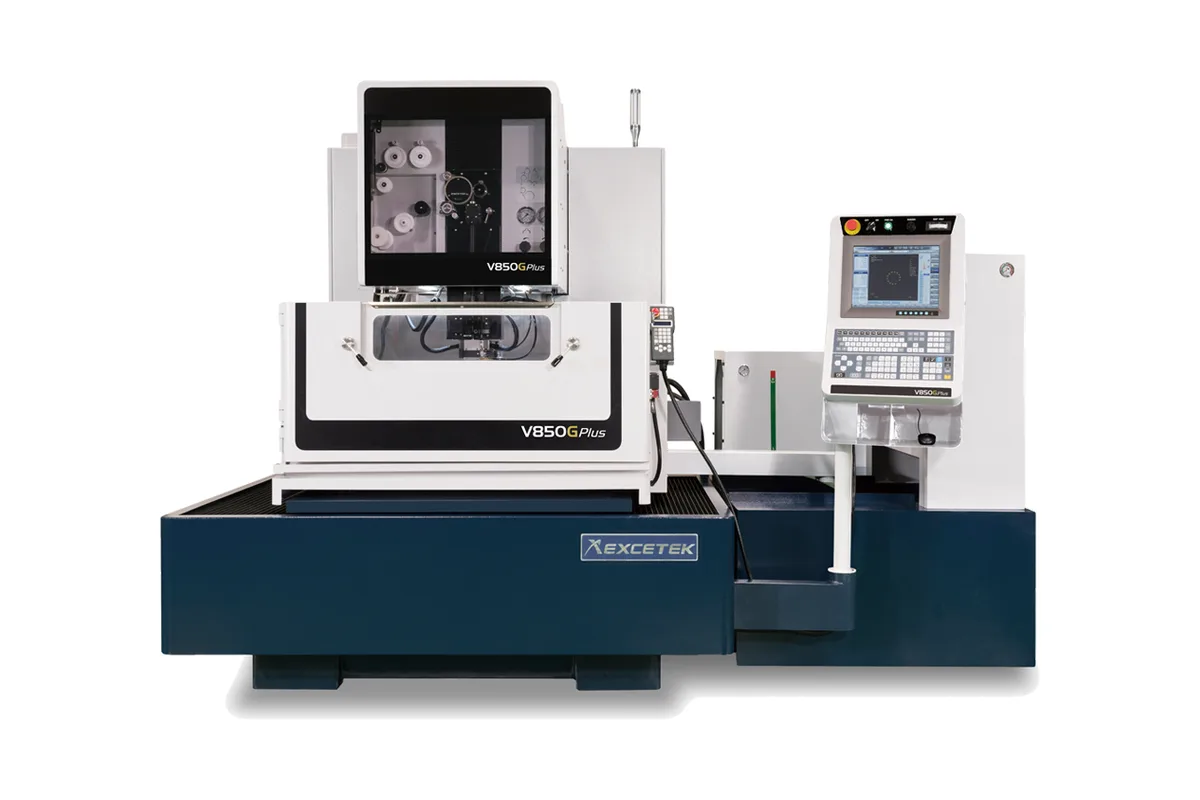

Excetek V850G Plus
Image: excetek.com, Excetek
Key Specifications
max workpiece size
max workpiece weight
x axis travel
y axis travel
uv axis travel
z axis travel
How much does the Excetek V850G Plus cost?
Price estimate
We do not have a price for the Excetek V850G Plus that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Top of the G Plus series by size, the Excetek V850G Plus is a submerged wire EDM for plates up to 1,100 x 850 x 345 mm (43.3 x 33.5 x 13.6 in) and 1,100 kg (2,425 lb). X travel is 800 mm (31.5 in) and Y travel 500 mm (19.7 in). Above this size Excetek's wire range changes to the V series machines, beginning with the V1060.
Weight capacity is where this model pulls away from its nearest sibling. The V650G Plus accepts 800 kg (1,764 lb); the V850G Plus accepts 1,100 kg (2,425 lb) on a table stroke that is wider in both axes. In a mold shop that difference decides whether a cavity plate is cut in one setup or has to go to a bigger machine.
The upper axes are unchanged from the V650G Plus. U and V travel 160 x 160 mm (6.3 x 6.3 in), taper is ±30° over 100 mm (3.9 in) with the wide diamond guide and nozzle, and the submerged height is 310 mm (12.2 in). Z travel is listed as a single figure, 350 mm (13.8 in). There is no taller column on this page, so a part over 345 mm high is outside the machine as described.
The structure follows the series pattern: FEA-designed casting, an extra wide base, a rigid U, V truss and a water cooled lower arm. Five axes run on AC servo motors. Machine weight is 5,000 kg (11,023 lb) on a 2,840 x 2,900 mm (111.8 x 114.2 in) footprint, and the water tank holds 1,050 L. Options include a Power Slide Door, a double door, automatic wire threading, XY axis linear scales and a 15 kVA transformer.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 1,100 x 850 x 345 mm (43.3 x 33.5 x 13.6 in) |
| Max Workpiece Weight | 1,100 kg (2,425 lb) |
| X Axis Travel | 800 mm (31.5 in) |
| Y Axis Travel | 500 mm (19.7 in) |
| Uv Axis Travel | 160 x 160 mm (6.3 x 6.3 in) |
| Z Axis Travel | 350 mm (13.8 in) (Submerged height 310 mm (12.2 in)) |
| Wire Diameter | 0.15 - 0.3 mm (0.006 - 0.012 in) |
| Number of Axes Controlled | 5 Axis AC servo motor |
| Max Taper Angle | ±30° / 100 mm (3.9 in) with wide diamond guide and nozzle |
| Machine Dimensions | 2,840 x 2,900 x 2,290 mm (111.8 x 114.2 x 90.2 in) |
| Machine Weight | 5,000 kg (11,023 lb) |
| Water Tank Capacity | 1,050 L |
Specifications sourced from excetek.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,100 kg (2,425 lb) workpiece weight, the highest in the G Plus series
- 800 x 500 mm X/Y stroke with a 1,100 x 850 mm (43.3 x 33.5 in) plate capacity
- ±30° taper over 100 mm (3.9 in) with the wide diamond guide and nozzle
- Extra wide machine base and FEA-designed casting, per Excetek's machine features
- Power Slide Door and double door are both offered as options
Limitations
- Single Z travel of 350 mm (13.8 in); the V650G Plus lists 350 / 410 / 500 mm
- Submerged height is 310 mm (12.2 in), below the 345 mm (13.6 in) maximum part height
- 5,000 kg (11,023 lb) machine weight and a 1,050 L water tank to plan the floor around
- Automatic wire threading and XY axis linear scales are options
Best For
Frequently Asked Questions
01
1,100 x 850 x 345 mm (43.3 x 33.5 x 13.6 in), weighing up to 1,100 kg (2,425 lb). The wire reaches an area of 800 mm (31.5 in) by 500 mm (19.7 in) within that.
02
The page lists one Z travel, 350 mm (13.8 in), with a submerged height of 310 mm (12.2 in). The V650G Plus, by contrast, lists 350 / 410 / 500 mm. For tall work on a table of this size, Excetek's V1060 offers 350 / 500 mm (13.8 / 19.7 in) of Z.
03
The V1060 belongs to the V series and is a larger machine: 1,000 mm (39.4 in) of X travel, 600 mm (23.6 in) of Y and a 3,000 kg (6,614 lb) workpiece limit. The V850G Plus is the G Plus model below it at 800 mm (31.5 in) by 500 mm (19.7 in) and 1,100 kg (2,425 lb).
04
Machine size is 2,840 x 2,900 x 2,290 mm (111.8 x 114.2 x 90.2 in), machine weight 5,000 kg (11,023 lb) and water tank capacity 1,050 L. A 15 kVA AVR and a 15 kVA transformer are listed as options.
