Sodick Sodick ALN600Q
Key Specifications
X Travel
Y Travel
Z Travel
u axis
v axis
max taper angle
Overview

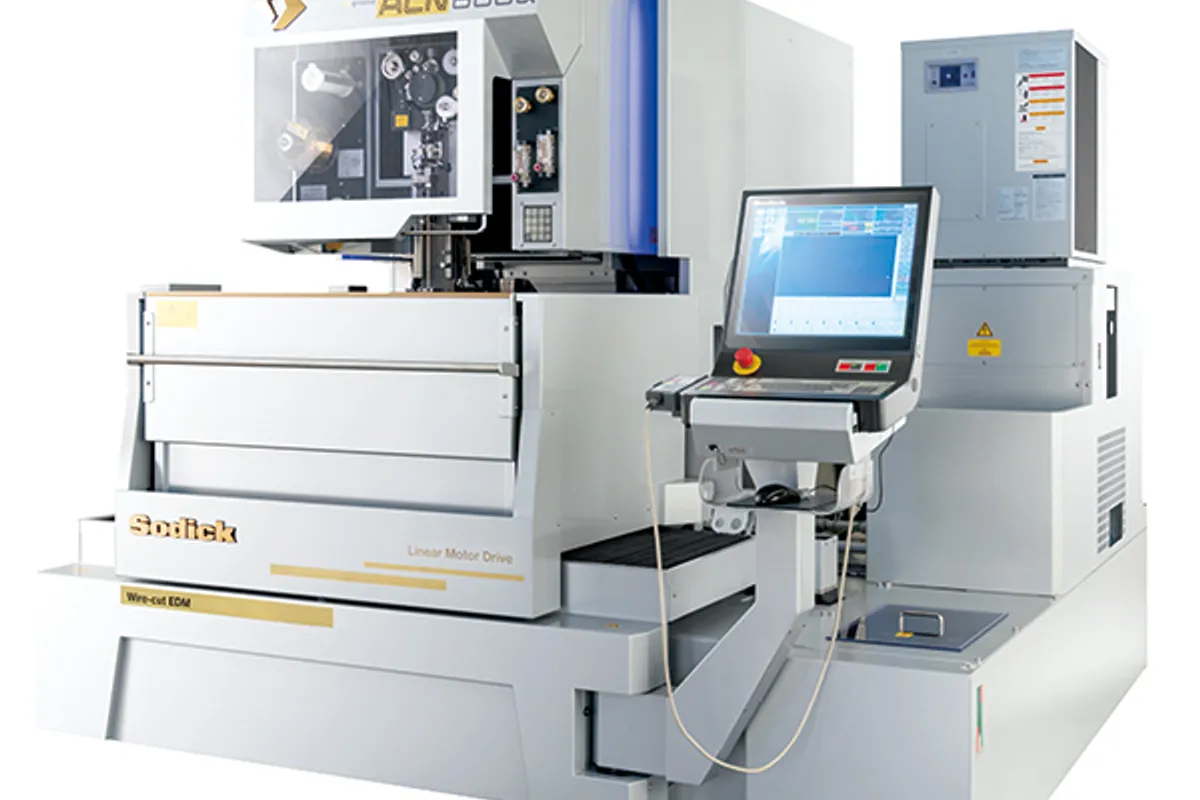

The Sodick ALN600Q i Groove Edition is a mid-large format value-tier linear motor wire EDM with 600 x 400 x 350 mm (23.6 x 15.75 x 13.78 in) X/Y/Z travel and 1,000 kg (2,205 lb) capacity. Provides 600mm-class capability at the most accessible price, combining linear motor accuracy with AIM AI Maintenance and TH COM thermal correction.
Same non-contact, maintenance-free linear motor technology. At 600 mm X-travel, eliminates thermal expansion and wear-related degradation that affects ball-screw machines.
1,050 x 840 mm work tank, workpieces up to 800 x 570 x 340 mm. Wire 0.10-0.30 mm. +/-25 degree taper at 130 mm.
At 4,200 kg and 2,525 x 2,760 mm footprint. Installation space 3,775 x 4,060 mm. Pricing typically $105,000-$155,000.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 600 mm (23.6 in) |
| Y-Axis Travel | 400 mm (15.75 in) |
| Z-Axis Travel | 350 mm (13.78 in) |
| U Axis | +/-75 mm (+/-2.95 in) |
| V Axis | +/-75 mm (+/-2.95 in) |
| Max Taper Angle | ±25°(plate thickness：130mm) |
| Max Workpiece Size Flushing | 800 x 570 x 340 mm (31.5 x 22.4 x 13.4 in) |
| Max Workpiece Size Submerged | 800 x 570 x 280 mm (31.5 x 22.4 x 11.0 in) |
| Max Workpiece Weight | 1,000 kg (2,205 lb) |
| Work Tank Dimensions | 1,050 x 840 mm (41.3 x 33.1 in) |
| Wire Diameter Range | 0.10 - 0.30 mm (0.004 - 0.012 in) |
| Wire Tension | 3 ～ 23 |
| Max Wire Feed Rate | 420 mm/sec |
| Drive System | Linear motor drive (non-contact, maintenance-free) |
| CNC Control | Sodick control with AIM temperature diagnosis and TH COM thermal correction |
| Power Input | 3-phase 50/60 Hz, 13 kVA max |
| Machine Dimensions | 2,525 x 2,760 x 2,295 mm (99.4 x 108.7 x 90.4 in) |
| Installation Space | 3,775 x 4,060 mm (148.6 x 159.8 in) |
| Machine Weight | 4,200 kg (9,259 lb) |
| Work Tank Inner Dimensions W X D | 1050 x 840 |
| Axis Stroke Xyz | 600 x 400 x 350 |
| U X V Axis Travel | 150 x 150 |
| Max Workpiece Dimensionsduring Flushing Machiningw X D X H | 800 x 570 x 340 |
| Max Workpiece Dimensionsduring Submerged Machiningw X D X H | 800 x 570 x 280 |
| Max Weight Of Workpieceduring Flushing Machiningkg | 1000 |
| Wire Electrode Diameter | 0.1 ～ 0.3*1 |
| Maximum Wire Feed Rate | 420 |
| Distance From Floor Surface To Upper Surface Of Table | 995 |
| Machine Tool Dimensions W X D X H | 2525 x 2760 x 2295*2 |
| Machine Installation Dimensions W X D | 3775 x 4060*3 |
| Total Unit Weightkg | 4200*4 |
| Total Power Input | 3-phase 50/60Hz 13 kVA |
Specifications sourced from sodick.co.jp — verified 2026-03-28
Strengths & Limitations
Strengths
- 600x400x350 mm at most accessible mid-large format price
- AIM/TH COM maintain accuracy in varying environments
- Linear motor with 10-year guarantee
- 1,000 kg capacity for heavy die plates
- Lighter than ALN600G at 4,200 kg
- 350 mm Z for generous cutting height
Limitations
- i Groove Edition lacks i Groove+ corner control
- Wire minimum 0.10 mm
- Value-tier generator vs Digital HF or Smart Pulse
- Service coverage varies by region
Best For
Frequently Asked Questions
01
ALN600G has i Groove+, Digital HF, fine wire to 0.05 mm. ALN600Q has i Groove, value generator, wire from 0.10 mm, plus AIM/TH COM. ALN600G costs $15,000-$20,000 more.
02
Linear motor accuracy is the same. Difference is corner accuracy (i Groove vs i Groove+) and cutting speed.
03
Automatically compensates for thermal displacement during cutting.
04
+/-25 degrees at 130 mm with 150 x 150 mm U/V travel.
