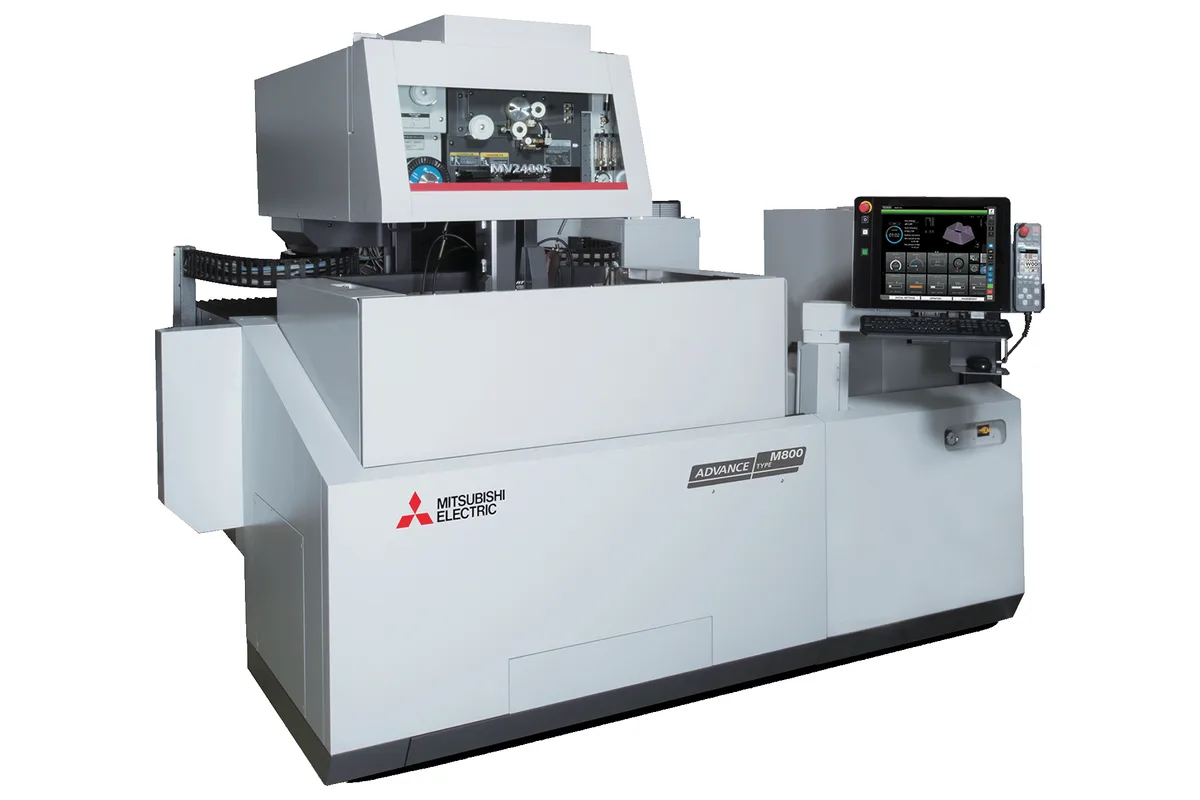

Mitsubishi MV2400S CNC Wire EDM

$250,000 – $500,000 Updated 2026-03-17

Key Specifications

X/Y Travel

600x400 mm (23.6x15.7 in)

U/V Travel

±90 mm at maximum taper

Z Travel

375 mm (14.8 in)

Maximum Workpiece Weight

700 kg

Wire Diameter

0.1 – 0.3 mm brass/coated wire

Minimum Kerf Width

0.12 mm

Overview

The Mitsubishi MV2400S is a large-table CNC wire EDM from Mitsubishi Electric's Machine Tool Division, designed for precision cutting of large die sets, progressive die tooling, and large aerospace structural features. The MV2400S offers a 600x400 mm XY travel with a UV taper axis capable of ±45° over 300 mm workpiece height, making it one of the most capable production wire EDMs in the large-format segment. Mitsubishi Electric is one of the world's largest wire EDM manufacturers and their MV series uses the GR digital generator, which Mitsubishi claims delivers 20-30% faster cutting speed compared to their previous series with equivalent surface finish quality. The GR generator also includes Mitsubishi's AI Automatic Expert System, which learns from previous cuts and automatically adjusts machining conditions for similar materials and geometries in subsequent programs. The machine is operated via Mitsubishi's own B-board controller with full G-code compatibility, integrating with offline programming systems including Mitsubishi's own EIDOS software.

Full Specifications

Parameter	Value
X/Y Travel	600x400 mm (23.6x15.7 in)
U/V Travel	±90 mm at maximum taper
Z Travel	375 mm (14.8 in)
Maximum Workpiece Weight	700 kg
Wire Diameter	0.1 – 0.3 mm brass/coated wire
Minimum Kerf Width	0.12 mm
Taper Angle	Up to ±45° over 300 mm height
Surface Finish	Ra 0.05 micron (mirror finish with 4 cuts)
Generator	Mitsubishi GR digital with AI Expert System
Control	Mitsubishi B-board CNC

Specifications sourced from machinetools.com — verified 2026-03-28

Strengths & Limitations

Strengths

600x400mm travel enables cutting of large progressive die blocks without repositioning
GR generator with AI Expert System automatically optimizes conditions from learned data
Ra 0.05 micron mirror finish for precision die and mold features
±45° taper over 300mm height for complex die punch and die plate features
Mitsubishi global service network — one of the largest in wire EDM

Limitations

Higher price tier vs Taiwanese wire EDM for similar table size
AI Expert System requires accumulated machining data to perform optimally
B-board controller has a steeper learning curve vs some competitors
Large machine footprint requires significant floor space

Best For

Progressive die shops cutting large die blocks for automotive stamping tooling Aerospace tooling manufacturers cutting large structural forming dies Precision mold shops cutting large core and cavity inserts Defense contractors cutting precision features in hardened specialty steels

Frequently Asked Questions

01 What is Mitsubishi's AI Automatic Expert System?

The AI Expert System monitors current machining conditions and compares them to historical data accumulated from previous jobs. It automatically selects optimal generator parameters for new materials, thicknesses, and finish requirements based on this learning database, reducing setup time for experienced operators.

02 Does the MV2400S support automatic wire threading?

Yes. The MV2400S includes automatic wire threading (AWT) that rethreads the wire at break points or at new start locations without operator intervention, enabling unattended multi-start programs overnight.

03 What is the maximum workpiece height the MV2400S can accommodate?

The Z-axis provides 375mm of headstock travel, accommodating workpiece heights up to approximately 350mm with standard setup. The UV taper system is rated to ±45° over a 300mm workpiece height reference.
