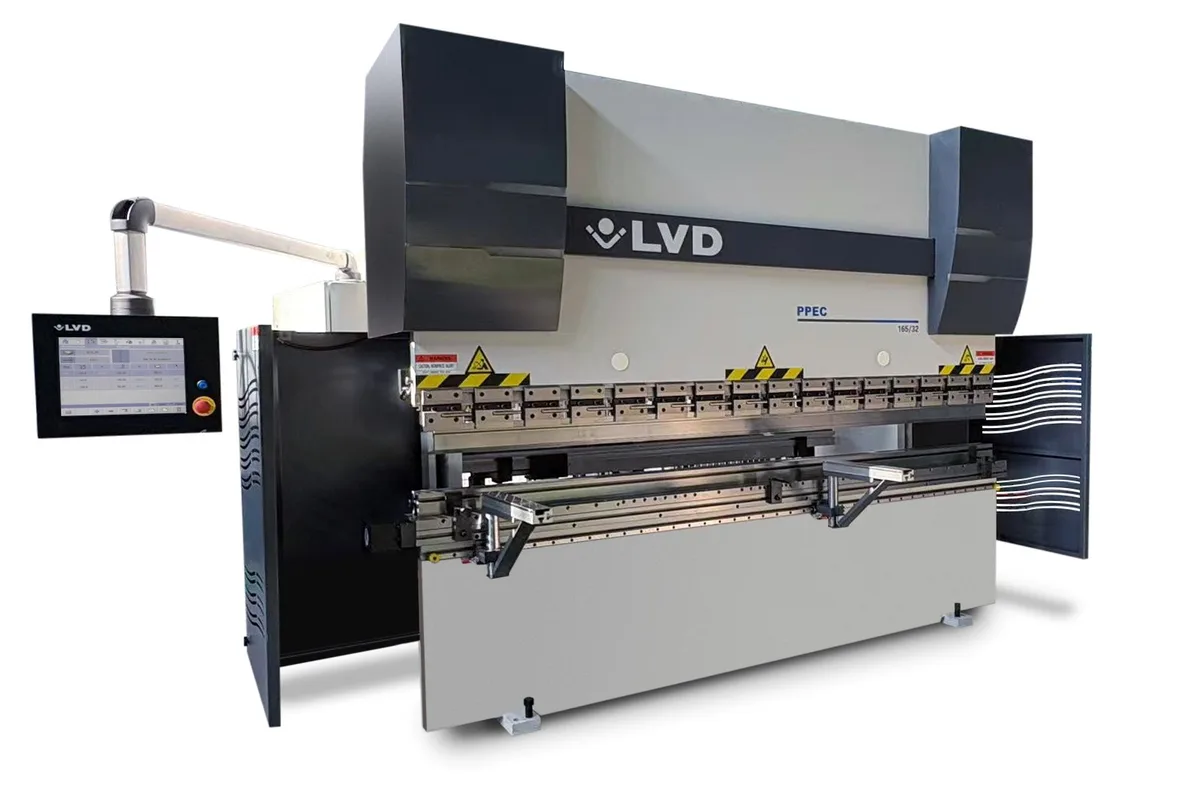

LVD PPEC 600/60
Image: lvdgroup.com, LVD
Key Specifications
pressing force
bending length
width between columns
ram stroke
open height
throat depth
How much does the LVD PPEC 600/60 cost?
Price estimate
We do not have a price for the LVD PPEC 600/60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The LVD PPEC 600/60 is the largest machine in LVD's PPEC table. It has a 6,000 mm (236.2 in) working length, a press force of 6,000 kN and an outline 6,800 mm (267.7 in) long. LVD states that the PPEC is available only for non-CE markets.
It combines the two extremes of the series, the longest bed and the highest force. The frame clears 5,050 mm (198.8 in) between the uprights. Above the 300 mm (11.8 in) table there are 640 mm (25.2 in) of open height and a 320 mm (12.6 in) stroke, so tall tooling and deep sections both fit along six metres.
The drive is shared with the four-metre model: a 45 kW servo motor and a 1,000 L tank, moving the ram at 80 mm/s on approach, 7 mm/s in the bend and 80 mm/s on return.
Against LVD's largest CE-market machine of this length, the PPEB 640/61, the PPEC has more daylight and a wider table, while the PPEB 640/61 has 6,400 kN, a 55 kW motor and a 9 mm/s working speed.
At 4,500 mm (177.2 in) high and 2,800 mm (110.2 in) wide, with a frame LVD's heading calls non mono, the machine is a construction project as much as a purchase. LVD lists a tandem configuration for the PPEC, in which two machines run synchronized or independently.
Full Specifications
| Parameter | Value |
|---|---|
| Pressing Force | 6,000 kN |
| Bending Length | 6,000 mm (236.2 in) |
| Width Between Columns | 5,050 mm (198.8 in) |
| Ram Stroke | 320 mm (12.6 in) |
| Open Height | 640 mm (25.2 in) |
| Throat Depth | 400 mm (15.7 in) |
| Table Width | 300 mm (11.8 in) |
| Approach Speed | 80 mm/s |
| Bending Speed | 7 mm/s |
| Return Speed | 80 mm/s |
| Servo Motor Power | 45 kW |
| Oil Tank Capacity | 1,000 L |
| Machine Length | 6,800 mm (267.7 in) |
| Machine Width | 2,800 mm (110.2 in) |
| Machine Height | 4,500 mm (177.2 in) |
| Series Type | PPEC-5 |
| Controlled Axes | Y1-Y2-X-V-R |
| Frame Type | Non mono frame |
Specifications sourced from lvdgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 6,000 kN across 6,000 mm (236.2 in)
- 5,050 mm (198.8 in) between the uprights
- 640 mm (25.2 in) of open height over a 300 mm (11.8 in) table
- 45 kW servo motor with a 1,000 L tank
- Tandem operation, synchronized or independent
Limitations
- Non-CE markets only, as LVD states
- 7 mm/s working speed and 80 mm/s return
- 6,800 mm (267.7 in) long, 4,500 mm (177.2 in) high
- 1,000 L of oil and no published weight
Best For
Frequently Asked Questions
01
The PPEB 640/61 has 6,400 kN, a 55 kW motor, a 9 mm/s working speed, 570 mm of open height and a 200 mm table. The PPEC has 6,000 kN, 45 kW, 7 mm/s, 640 mm and a 300 mm table.
02
6,800 mm (267.7 in) long, 2,800 mm (110.2 in) wide and 4,500 mm (177.2 in) high. The working length inside that is 6,000 mm (236.2 in).
03
5,050 mm (198.8 in) between the uprights, with a 400 mm (15.7 in) throat in the side frames for parts up to the full working length.
04
Slowly: 80 mm/s approach, 7 mm/s working and 80 mm/s return. Those are the figures LVD also lists for the PPEC 600/40.
