BLM Group LT360

Q: How much does the BLM Group LT360 cost?

The price estimate for the BLM Group LT360 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/blm-group-lt360#price; the request is passed to BLM Group or an authorised dealer.

Specs verified 2026-10-05 · blmgroup.com Updated 2026-10-05

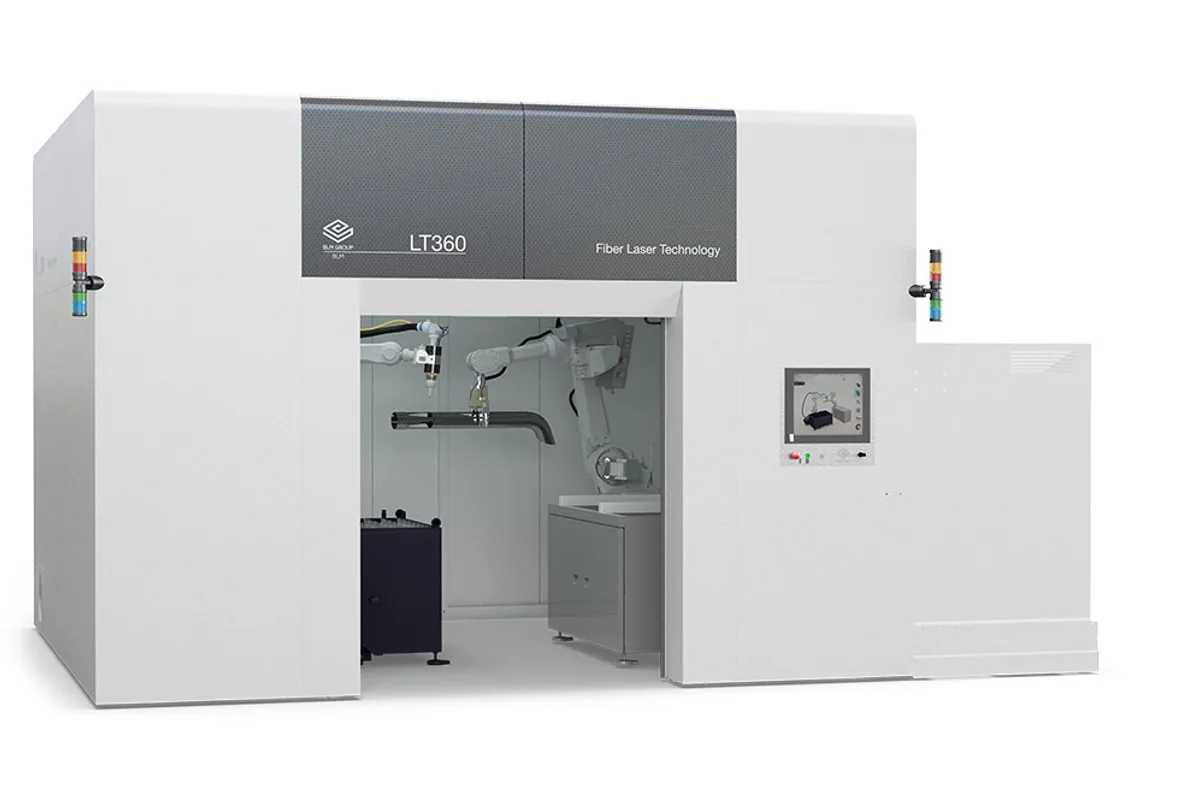

BLM Group LT360 robot laser cutting cell

Image: blmgroup.com, BLM Group

Key Specifications

Accuracy

±0.006 in (0.15 mm)

Repeatability

±0.002 in (0.05 mm)

laser source

Fiber, 2 kW - 3 kW

cutting head

head moving system

ABB IRB 2400 6+1 axis

handling robot

ABB IRB 2600

How much does the BLM Group LT360 cost?

Price estimate

Uncertain

We do not have a price for the BLM Group LT360 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

In the BLM Group LT360 the laser head is carried by a robot. That is the difference from BLM's other cell for formed parts, and it shows in the table: accuracy is ±0.006 in (0.15 mm), with repeatability of ±0.002 in (0.05 mm). The fiber source is 2 kW - 3 kW, and the work area is 59 x 39 in (1,500 x 1,000 mm).

Like the LT-FREE, it cuts parts that are already three-dimensional: bent, hydroformed, extruded or drawn sections and stamped sheet. The LT-FREE moves its head on a CNC system and lists ±0.002 in (0.05 mm) for accuracy as well as repeatability. A robot-carried head trades some of that positioning accuracy for the reach of a robot arm. Does the part's tolerance allow it? Trimmed ends and clearance holes in bent tube are the obvious candidates. For features that locate other components, check the drawing against the accuracy figure first.

There are three configurations, named ENTRY LEVEL, ONE FLEX and TAILORED. A fixed table accepts fixtures of many kinds. Adding a handling robot lets the cell cut a part all round without anyone repositioning it by hand, and BLM notes that the robot's gripping position can be configured on a support system instead of building dedicated tooling for each part. In the Tailored version the part is grabbed outside the work cell, which is what allows the LT360 to sit in a production chain.

Installed power is 40 kVA, against the 60 - 66 kW listed for the LT-FREE. The control is PC-based and listed as SIEMENS, behind the unified BLM GROUP operator interface. Access is through one large front door, and two internal cameras show the process on the interface screen.

Full Specifications

Parameter	Value
Laser Source	Fiber, 2 kW - 3 kW
Cutting Head	3D
Head Moving System	ABB IRB 2400 6+1 axis
Positioning Accuracy	±0.006 in (0.15 mm)
Repeatability	±0.002 in (0.05 mm)
Handling Robot	ABB IRB 2600
Work Area	59 x 39 in (1,500 x 1,000 mm)
Enclosure	Class C1
Installed Power	40 kVA
CNC Control	PC-based, SIEMENS
Operator Interface	Unified BLM GROUP interface

Specifications sourced from blmgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

Robot-carried 3D cutting head reaches round bent, hydroformed and stamped parts
Repeatability of ±0.002 in (0.05 mm)
A handling robot can reposition the part, so no manual repositioning or rework on the fixture
Tailored version grabs the part outside the work cell for integration into a production chain
Installed power of 40 kVA
Layout configurable according to requirements, in three named configurations

Limitations

Accuracy of ±0.006 in (0.15 mm) is coarser than the ±0.002 in (0.05 mm) of the LT-FREE
The fiber source stops at 3 kW; the LT-FREE is also offered at 4 kW
Work area of 59 x 39 in (1,500 x 1,000 mm) limits part size
The table lists no rotary or twin-table option for overlapping loading with cutting

Best For

Trimming and cutting holes in bent tube where ±0.006 in (0.15 mm) is sufficient Formed parts handled by robot without dedicated tooling for each part Cells fed from outside as a link in a production chain Sites where a 40 kVA supply is what is available

Frequently Asked Questions

01 What is the difference between the LT360 and the LT-FREE?

The way the head moves, and the accuracy that results. The LT360 carries its 3D head on a robot and lists an accuracy of ±0.006 in (0.15 mm). The LT-FREE uses a CNC head system and lists ±0.002 in (0.05 mm). The LT-FREE also offers a 4 kW source and split or rotary tables; the LT360 lists 40 kVA of installed power.

02 How accurate is the LT360?

Accuracy is ±0.006 in (0.15 mm) and repeatability ±0.002 in (0.05 mm). Repeatability is the tighter of the two, so a part cut many times will match its predecessors more closely than it matches the nominal drawing dimension.

03 Which configurations of the LT360 exist?

BLM names three: LT360 ENTRY LEVEL, LT360 ONE FLEX and LT360 TAILORED. Its descriptions cover a fixed table that takes varied fixtures, a fixed table combined with a handling robot, and an arrangement suited to integration into large production chains. In the Tailored version the part is grabbed outside the work cell.

04 What laser and control does the LT360 use?

A fiber laser source of 2 kW - 3 kW with a 3D cutting head. The control is PC-based and listed as SIEMENS, with the unified BLM GROUP operator interface. Installed power is 40 kVA and the enclosure is Class C1.

05 Does the LT360 need a fixture for every part?

Not necessarily. With a handling robot, the gripping position is configured on a support system, and BLM says this avoids making dedicated tooling for each part. Without the robot, the fixed table is equipped with fixtures in the usual way.
