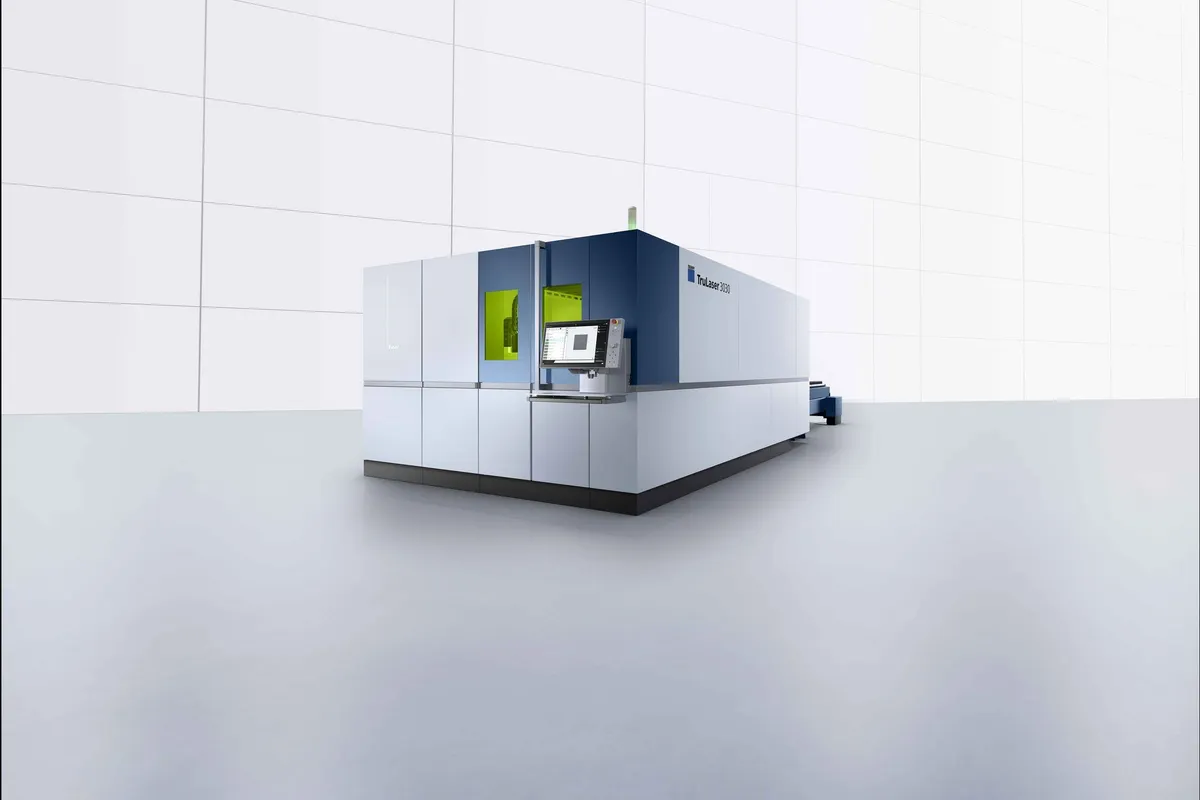

Trumpf TruLaser 3030 Fiber

$400,000 - $550,000 (new, 6 kW); $650,000 - $900,000 (12 kW with automation); $1,000,000+ (24 kW fully loaded) Updated 2025-03-15

Key Specifications

working area

3,000 x 1,500 mm (118 x 59 in)

laser type

TruFiber (diode-pumped fiber laser)

laser power options

4 kW / 6 kW / 9 kW / 12 kW / 24 kW

max thickness mild steel 12kw

30 mm (1.18 in); 35 mm with thick-sheet package

max thickness stainless steel 12kw

40 mm (1.57 in); 50 mm with thick-sheet package

max thickness aluminum 12kw

30 mm (1.18 in); 40 mm with thick-sheet package

Overview

The Trumpf TruLaser 3030 Fiber is the workhorse of Trumpf's mid-range 2D laser cutting lineup, and it's the machine you'll find in more sheet metal shops worldwide than any other Trumpf laser. The 3000 series sits between the entry-level 1000 and the high-performance 5000, delivering a balance of cutting speed, edge quality, and automation capability that makes it the default choice for serious fabricators.

The 3030 covers a 3,000 x 1,500 mm (118 x 59 in) working area -- standard 5x10 ft sheet capacity. Laser power options span from 4 kW to a massive 24 kW with the TruFiber 24001, which is among the highest power levels available on any production 2D laser cutter. At 12 kW, the machine cuts 30 mm (1.18 in) mild steel (35 mm with thick-sheet package), 40 mm (1.57 in) stainless (50 mm with package), and 30 mm aluminum (40 mm with package). The 24 kW option pushes those numbers even further for shops running extreme thick-plate work.

What separates the 3000 series from the 1000 is the technology package. BrightLine fiber technology uses a dual-core fiber to produce cleaner edges on thick stainless steel and aluminum -- a meaningful improvement in cut quality that reduces or eliminates secondary finishing. CoolLine sprays an aerosol mist near the cutting zone for controlled piercing on thick plate, reducing heat buildup and enabling smaller piercing holes. Highspeed Eco mode cuts nitrogen consumption by up to 70% on thin sheet, which directly reduces operating costs on the assist gas that represents one of the largest consumable expenses in laser cutting.

Maximum simultaneous positioning speed is 170 m/min, a 21% improvement over the 1000 series' 140 m/min. That translates to shorter non-cutting travel time between features on nested sheets, particularly noticeable on thin sheet work where cutting speed is fast and the head spends proportionally more time repositioning.

Machine weight is 11,700 kg (25,794 lb) with dimensions of 9,229 x 6,145 x 2,200 mm (363 x 242 x 87 in). Table load capacity is 1,100 kg without pallet changer, or 1,800 kg with the heavy-duty version. The Touchpoint HMI control and TruTops Boost CAM software are consistent across all Trumpf platforms.

New TruLaser 3030 Fiber machines with 6 kW start around $400,000-$550,000. The 12 kW configuration with automation runs $650,000-$900,000, and the 24 kW flagship can exceed $1 million fully loaded. This is the machine shops buy when they're serious about production laser cutting and want Trumpf's full technology stack without paying for the 5000 series' extreme dynamics.

Full Specifications

Parameter	Value
Working Area	3,000 x 1,500 mm (118 x 59 in)
Laser Type	TruFiber (diode-pumped fiber laser)
Laser Power Options	4 kW / 6 kW / 9 kW / 12 kW / 24 kW
Max Thickness Mild Steel 12kw	30 mm (1.18 in); 35 mm with thick-sheet package
Max Thickness Stainless Steel 12kw	40 mm (1.57 in); 50 mm with thick-sheet package
Max Thickness Aluminum 12kw	30 mm (1.18 in); 40 mm with thick-sheet package
Max Positioning Speed	170 m/min (simultaneous)
Table Load Capacity	1,100 kg (without pallet changer); 1,800 kg (heavy-duty pallet changer)
Machine Weight	11,700 kg (25,794 lb)
Machine Dimensions	9,229 x 6,145 x 2,200 mm (363 x 242 x 87 in)
CNC Control	Touchpoint HMI (touchscreen)
Cutting Technology	BrightLine fiber, CoolLine, Highspeed Eco, NanoJoints, PierceLine
Collision Protection	Yes
Integrated Gas Mixer	Yes
Length	9229 mm
Width	6145 mm
Height	2200 mm
Weight Of Basic Machine	11700 kg1
Simultaneous	170 m/min
X Axis	3000 mm
Y Axis	1500 mm
Maximum Workpiece Weight Without Heavy Duty Pallet Changer	1100 kg
Maximum Workpiece Weight With Heavy Duty Pallet Changer	1800 kg
Maximum Workpiece Weight On Both Pallets With Heavy Duty Pallet Changer	2200 kg2
Maximum Laser Power	With 24 kW, the TruFiber 24001 cuts up to three times faster
Maximum Sheet Thickness Mild Steel	40 mm
Maximum Mild Steel Sheet Thickness With Cutting Package For Thick Sheets	60 mm
Maximum Sheet Thickness Stainless Steel	40 mm
Maximum Stainless Steel Sheet Thickness With Cutting Package For Thick Sheets	60 mm
Maximum Sheet Thickness Aluminum	40 mm
Maximum Sheet Thickness Copper	16 mm
Maximum Sheet Thickness Brass	12.7 mm
Maximum Aluminum Sheet Thickness With Cutting Package For Thick Sheets	40 mm
Average Power Input In Production Trufiber 4001	10 kW
Average Power Input In Production Trufiber 6001	11 kW
Average Power Input In Production Trufiber 9001	14.5 kW
Average Power Input In Production Trufiber 12001	16 kW
Average Power Input In Production Trufiber 24001	27 kW
The Best Results Without Compromise	BrightLine fiber facilitates excellent part quality and seamless part removal.
Intricate Cutting Even In Thick Mild Steel	With the CoolLine function, you can even create small contours in thick mild steel.
Utilize Remainder Sheets Post Produce Parts Easily	Using Drop&Cut, you can easily post-produce parts from remainder sheets.
Simple Machine Operation	The menu navigation on the large display works intuitively. Integrated cutting parameters increase the level of process reliability.
Increased Machine Availability	Condition Guide always monitors the condition of your machine.
Reliability Without Microjoints	Smart collision prevention reduces the risk of collisions during laser cutting.
Accurate Position Recognition	DetectLine determines the position of the sheet and enables precise post-processing of cut parts.
Highspeed And Highspeed Eco	A new nozzle design reduces nitrogen consumption by up to 70% – for double the sheet throughput.
Modeltrulaser 3030 Fibertrulaser 3040 Fibertrulaser 3060 Fibertrulaser 3080 Fiber	TruLaser 3030 fiberTruLaser 3040 fiberTruLaser 3060 fiberTruLaser 3080 fiber

Specifications sourced from trumpf.com — verified 2026-03-28

Strengths & Limitations

Strengths

BrightLine fiber technology delivers dramatically cleaner edges on thick stainless and aluminum compared to standard fiber cutting -- reduces or eliminates secondary finishing
Highspeed Eco mode cuts nitrogen consumption by up to 70% on thin sheet, directly reducing one of the largest operating costs in laser cutting
CoolLine controlled piercing reduces heat buildup on thick plate, enabling smaller pierce holes and better edge quality at maximum thickness
24 kW laser option is among the highest power levels available on any production 2D laser cutter -- future-proofs the investment for thick-plate work
170 m/min simultaneous positioning is 21% faster than the 1000 series, noticeably reducing cycle times on thin sheet nesting
Trumpf's most popular 2D laser platform means strong parts availability, service network, and resale value

Limitations

1,100 kg table load without pallet changer is lower than some competitors and limits heavy plate capacity without the upgrade
Price premium over the 1000 series is significant -- $150,000-$200,000 more for what is fundamentally the same cutting capacity with added technology features
Trumpf service contracts run $15,000-$25,000/year, and the 3000 series' more complex technology stack (BrightLine, CoolLine) means more components to maintain
TruTops Boost CAM software is capable but expensive, and switching to third-party CAM is more difficult than with some competitors
170 m/min positioning is good but not exceptional -- the TruLaser 5030 runs at 280 m/min for shops where dynamics matter most

Best For

Production sheet metal shops running 5x10 ft sheets across mild steel, stainless, and aluminum with high quality requirements Fabricators cutting thick stainless steel and aluminum where BrightLine edge quality eliminates secondary finishing operations High-volume shops where Highspeed Eco mode's 70% nitrogen savings delivers meaningful operating cost reduction Job shops that need the full Trumpf technology stack at a mid-range price point between the 1000 and 5000 series Operations planning to scale with automation (LiftMaster, SortMaster, STOPA storage) on Trumpf's most automation-compatible platform Fabricators processing thick plate who need CoolLine controlled piercing for reliable pierce quality

Frequently Asked Questions

01 What does a Trumpf TruLaser 3030 Fiber cost?

New machines with 6 kW start around $400,000-$550,000. The 12 kW with automation runs $650,000-$900,000. The 24 kW flagship configuration can exceed $1 million fully loaded with automation and options. Used TruLaser 3030 machines from 2018-2022 trade in the $200,000-$450,000 range depending on laser power, hours, and included automation.

02 What is BrightLine fiber technology?

BrightLine fiber uses a dual-core fiber optic cable to deliver two different beam profiles from a single laser source. The outer ring produces a wider beam for thick material cutting, while the inner core delivers a focused beam for thin sheet. The result is dramatically cleaner edges on thick stainless steel and aluminum compared to standard single-core fiber lasers. Parts come off the machine with edges clean enough for welding or painting without grinding.

03 How does Highspeed Eco mode work?

Highspeed Eco reduces nitrogen assist gas consumption by up to 70% when cutting thin mild steel and stainless sheet. It uses a combination of reduced gas pressure, optimized nozzle standoff, and adapted cutting parameters to maintain cut quality while using dramatically less nitrogen. For shops running high volumes of thin sheet, nitrogen is one of the largest consumable costs -- Highspeed Eco can save $20,000-$50,000/year in gas costs alone.

04 Should I buy the TruLaser 3030 or 5030?

The 5030 offers 280 m/min positioning (vs 170 m/min), which makes a meaningful difference on high-volume thin sheet work. The 5030 also has more advanced dynamics and is optimized for maximum throughput. If your work is primarily thin sheet at high volume, the 5030's speed advantage pays for itself. If you run a mix of thin and thick material, or if thick plate is a significant portion of your work, the 3030 delivers equivalent cutting at a lower price point.

05 What automation options are available for the TruLaser 3030?

The full Trumpf automation ecosystem is available: LiftMaster for loading/unloading, SortMaster for automated part sorting, STOPA storage towers for multi-shelf material management, and pallet changers (standard and heavy-duty). The 3000 series is Trumpf's most automation-compatible platform, supporting everything from basic dual-pallet operation to fully integrated lights-out cells.

06 What is CoolLine and when do I need it?

CoolLine sprays a fine aerosol mist near the laser cutting zone during piercing and cutting of thick plate. It controls heat buildup, reduces thermal distortion, enables smaller piercing holes (closer part nesting), and improves edge quality at maximum thickness. You need it if you regularly cut mild steel above 20 mm or stainless/aluminum above 15 mm. For thin sheet work, it's not necessary.
