Amada PEGA 357

$220,000 - $360,000 Updated 2026-03-17

Key Specifications

punching force

300 kN (33 US ton)

sheet thickness max

6.4 mm mild steel, 4 mm stainless, 6 mm aluminum

sheet size max

1,270 x 3,048 mm (50 x 120 in)

number of tools

36 stations (single-D, double-D, large-D mix)

hits per minute max

520 hpm (single hit mode)

positioning speed

90 m/min (X and Y)

Overview

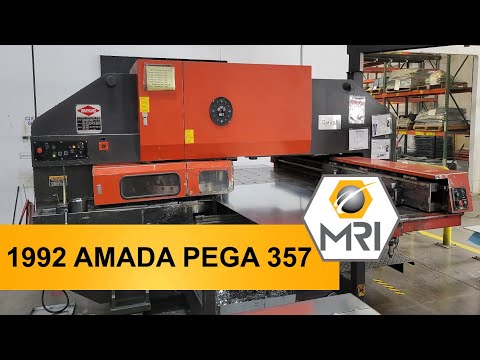

The Amada PEGA 357 is a CNC turret punch press representing Amada's long-running PEGA series, a platform known for its robust mechanical design, large tooling capacity, and reliable performance across demanding production environments. The PEGA designation has been associated with Amada's professional-grade punching machines for decades, and the 357 model combines a 300 kN punch force with a large-capacity turret and Amada's servo-driven positioning for consistent high-throughput operation.

The 357 designation reflects the machine's turret configuration: a 36-station turret with stations supporting single-D, double-D, and large-D tooling formats. This mix allows the machine to carry a broad variety of punch and die sets simultaneously, reducing tool change frequency during production runs. The PEGA 357 processes sheets up to 1,270 x 3,048 mm (50 x 120 inches), accommodating both standard 4x8 and 5x10 sheet formats common in North American sheet metal fabrication.

Amada's servo-driven ram system on the PEGA 357 provides programmable stroke control, allowing the operator to optimize the punch stroke depth for each material and thickness. Shorter strokes at higher speeds increase throughput for thin sheet work, while full strokes accommodate maximum thickness materials. The servo turret indexes quickly between tool stations, and the combined X-Y positioning system achieves speeds up to 90 m/min for fast part cycle times.

The PEGA 357 is built on a rigid C-frame construction with a large worktable and multiple sheet support brushes and ball transfers to minimize sheet marking on finished surfaces. The coordinate gripper system supports sheet repositioning within a single program, enabling parts to be processed across the full sheet length without manual intervention.

Programming is supported by Amada's AP100 CAM system and the onboard AMNC controller. The PEGA 357 is compatible with Amada's automation peripherals including sheet feeders and storage towers, making it a long-term-capable platform for shops planning production automation growth. Its combination of large station count, full-sheet capacity, and Amada's well-established tooling ecosystem makes it a popular choice for high-mix, medium-to-high-volume fabrication.

Full Specifications

Parameter	Value
Punching Force	300 kN (33 US ton)
Sheet Thickness Max	6.4 mm mild steel, 4 mm stainless, 6 mm aluminum
Sheet Size Max	1,270 x 3,048 mm (50 x 120 in)
Number Of Tools	36 stations (single-D, double-D, large-D mix)
Hits Per Minute Max	520 hpm (single hit mode)
Positioning Speed	90 m/min (X and Y)
CNC Control	Amada AMNC
Machine Weight	Approx. 8,500 kg
E	e
Online Order Parts Tooling	Log-in & New Users Registration(opens in new window)Access the Amada Parts Portal for online parts and tooling orders
Subscribeview Excerpt	Highlighting AMADA's latest technologies and industry news — all in one convenient email.RegisterView Latest

Specifications sourced from amada.com — verified 2026-03-28

Strengths & Limitations

Strengths

Proven PEGA platform with decades of reliability record in production environments
36-station turret with large-D stations for maximum tooling variety
Processes up to 50 x 120 inch sheets for full North American sheet format support
Servo ram with programmable stroke optimizes speed for material thickness
Compatible with Amada automation systems for future capacity growth

Limitations

Fewer stations than newer AC series turrets at comparable price points
Older platform variants may have limited support for latest AMNC controller features
Large sheet format capability may be underutilized in shops working primarily with standard 4x8 sheets

Best For

Production fabricators requiring large sheet format punching capability Job shops with high-mix programs benefiting from large turret tooling variety HVAC duct and panel fabricators using 5x10 sheet stock Shops seeking a proven, established platform with strong tooling ecosystem support

Frequently Asked Questions

01 What does the '357' designation indicate on the Amada PEGA 357?

The 357 refers to the machine's turret configuration — specifically a 36-station turret with 5 large-D stations and 7 special stations (or a similar breakdown depending on the exact variant). Amada's PEGA model numbering historically encodes turret station counts and configuration details.

02 What is the maximum sheet size the PEGA 357 handles?

The PEGA 357 processes sheets up to 1,270 x 3,048 mm (50 x 120 inches), which is the standard 5-foot by 10-foot sheet format widely used in North American HVAC and heavy fabrication work, in addition to the standard 4-foot by 8-foot format.

03 What is the benefit of the servo-driven ram system?

The servo ram allows programmable stroke length control on a per-hit or per-material basis. Shorter strokes on thin material increase hits per minute significantly. Full-stroke mode is used for maximum-thickness steel where complete die clearance is required. This flexibility improves cycle time without sacrificing quality.

04 Is the PEGA 357 compatible with Amada's automation systems?

Yes. The PEGA 357 supports Amada's material handling automation peripherals including the ASF sheet feeder, linear storage towers, and FMS (Flexible Manufacturing System) configurations. Automation can be added at purchase or retrofitted as production volumes grow.

05 How does the PEGA 357 compare to the Amada EM 2510 NT?

The EM series uses an electric servo press mechanism offering higher energy efficiency and lower noise levels. The PEGA 357 uses a conventional mechanical or servo-mechanical drive. The PEGA platform is typically more established and may offer advantages in available tooling and service support for older installations, while the EM series represents Amada's newer technology direction.
