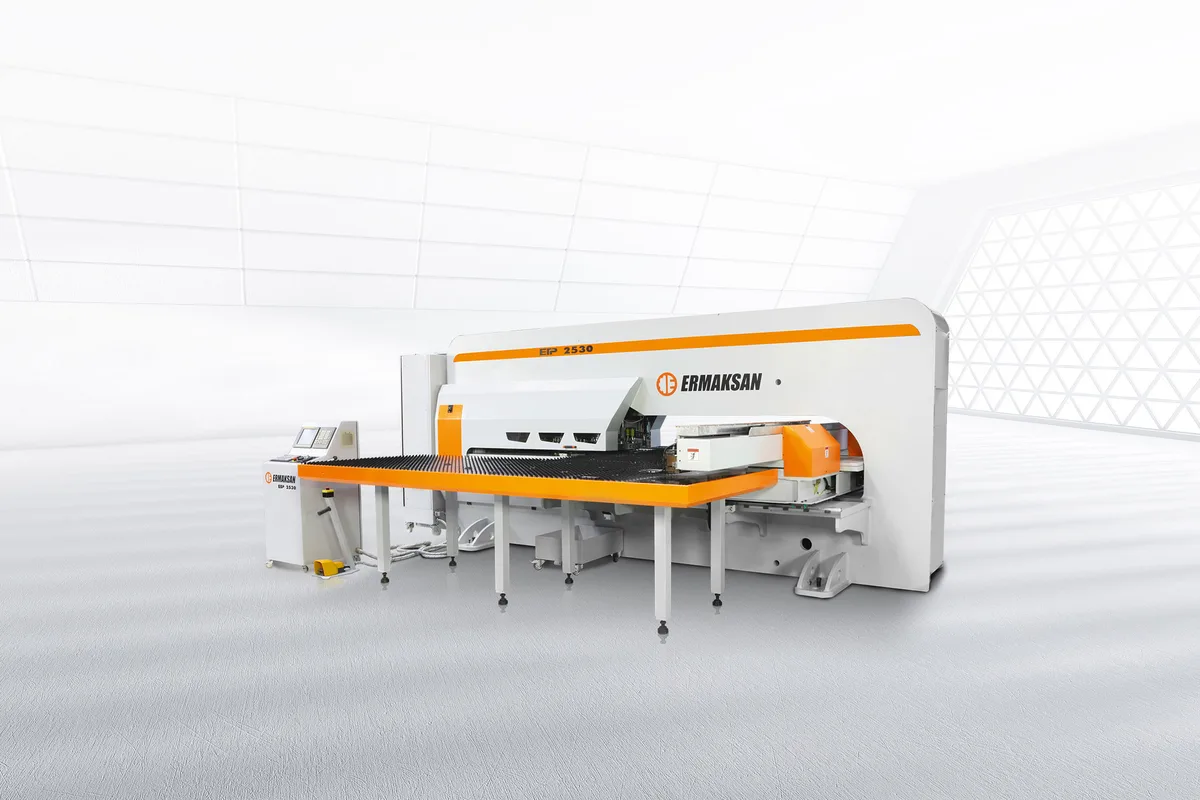

Ermak ETP 1500x3000
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
punching force
max sheet size
turret stations
max punch diameter
How much does the Ermak ETP 1500x3000 cost?
Price estimate
We do not have a price for the Ermak ETP 1500x3000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak ETP 1500x3000 is a hydraulic CNC turret punch press with 30 Ton of punching force, a 33-station turret and capacity for sheets of 3,000 x 1,500 mm (118.1 x 59.1 in). Where the ETP-S line uses a servo ram, the ETP uses a Voith Turbo H + L hydraulic stroke unit.
The hydraulic system is compact in electrical terms. Its motor is 11 kW (14.8 hp), the oil capacity is 300 lt and the power supply for the whole machine is 25 kW (33.5 hp). The ram stroke is 40 mm.
In output the machine matches the top of the range. Marking runs at 2,000 strokes/min, a 1 mm step at 900 strokes/min and a 25 mm step at 600 strokes/min. X and Y travel at 80 m/min each. Y travel is 1,500 mm, and X covers 3,000 mm before the clamps reposition.
Ermak builds the ETP on what it calls a hardened and stress-relieved O-type body. The frame, with a table for three-metre sheets, makes this the heaviest ETP at 22,000 kg (48,501 lb), and at 6,660 mm the widest.
Four clamps hold sheets up to 225 kg (496 lb). Control is a GE Fanuc 31i-PB with Ermaksan HMI software; programming is done in Metalix.
Full Specifications
| Parameter | Value |
|---|---|
| Punching Force | 30 Ton (33 US tons) |
| Max Sheet Size | 3,000 x 1,500 mm (118.1 x 59.1 in) |
| Turret Stations | 33 |
| Max Punch Diameter | 88.9 mm (3.5 in), single tool in 1 mm sheet |
| X Axis Travel | 3,000 mm (118.1 in) + R |
| X Axis Speed | 80 m/min |
| Y Axis Travel | 1,500 mm (59.1 in) |
| Y Axis Speed | 80 m/min |
| Xy Combined Speed | 114 m/min |
| Turret Rotation Speed | 20 rpm |
| Auto Index Rotation Speed | 65 rpm |
| Punch Rate Marking | 2,000 strokes/min (1 mm stroke) |
| Punch Rate 1 Mm Step | 900 strokes/min (1 mm step in X and Y) |
| Punch Rate 25 Mm Step | 600 strokes/min (25 mm step in X and Y) |
| Max Thickness Fixed Station Mild Steel | 6.35 mm (0.25 in) |
| Max Thickness Fixed Station Stainless Steel | 3 mm (0.12 in) |
| Max Thickness Auto Index Station Mild Steel | 4 mm (0.16 in) |
| Max Thickness Auto Index Station Stainless Steel | 2.5 mm (0.10 in) |
| Repeatability | ±0.05 mm |
| Positioning Accuracy | ±0.1 mm |
| Index Positioning Accuracy | 0.01° |
| Multi Tool Change Time | 3 s |
| Max Sheet Weight | 225 kg (496 lb) |
| Main Motor Power | 11 kW (14.8 hp) |
| Oil Capacity | 300 lt |
| Air Pressure | 6 - 7 bar |
| Ram Stroke | 40 mm (1.57 in) |
| Sheet Clamps | 4 |
| Sheet Clamping Force | 1,200 kg (2,646 lb) |
| Power Supply | 25 kW (33.5 hp) |
| Air Supply | 2.5 L/min |
| CNC Control | GE Fanuc 31i-PB with Ermaksan HMI software |
| Press Drive | Voith Turbo H + L Hydraulic |
| Working Height | 950 mm (37.4 in) |
| Table Type | Brush, ball or brush + ball |
| Machine Length | 5,520 mm (217.3 in) |
| Machine Width | 6,660 mm (262.2 in) |
| Machine Height | 2,220 mm (87.4 in) |
| Machine Weight | 22,000 kg (48,501 lb) |
| CAD CAM Software | Metalix |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 30 Ton hydraulic press with a Voith Turbo H + L stroke unit
- Full 3,000 x 1,500 mm sheet capacity
- 25 kW (33.5 hp) power supply
- 33 stations and a marking rate of 2,000 strokes/min
- Ram stroke of 40 mm (1.57 in)
Limitations
- 300 lt of hydraulic oil to maintain
- 22,000 kg (48,501 lb) on a 5,520 x 6,660 mm footprint
- Stainless steel is limited to 3 mm in a fixed station
Best For
Frequently Asked Questions
01
A Voith Turbo H + L hydraulic system, which Ermak describes as an integrated stroke unit optimized for punching, threading and forming. The motor is 11 kW (14.8 hp) and the oil capacity 300 lt.
02
30 Ton, sheets up to 3,000 x 1,500 mm and 225 kg (496 lb), a maximum punch diameter of 88.9 mm, and 6.35 mm mild steel in a fixed station.
03
The power supply is listed as 25 kW (33.5 hp). Compressed air is needed at 6 - 7 bar, with an air supply of 2.5 L/min.
04
Ermak states that with the RE-POSITION function the machine can process sheet metal longer than the X axis without interruption. X travel is listed as 3,000 mm + R.
