Machitech Silver Cut 5x20

Q: How much does the Machitech Silver Cut 5x20 cost?

The price estimate for the Machitech Silver Cut 5x20 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/machitech-silver-cut-5x20#price; the request is passed to Machitech Automation or an authorised dealer.

Specs verified 2026-10-05 · machitech.com Updated 2026-10-05

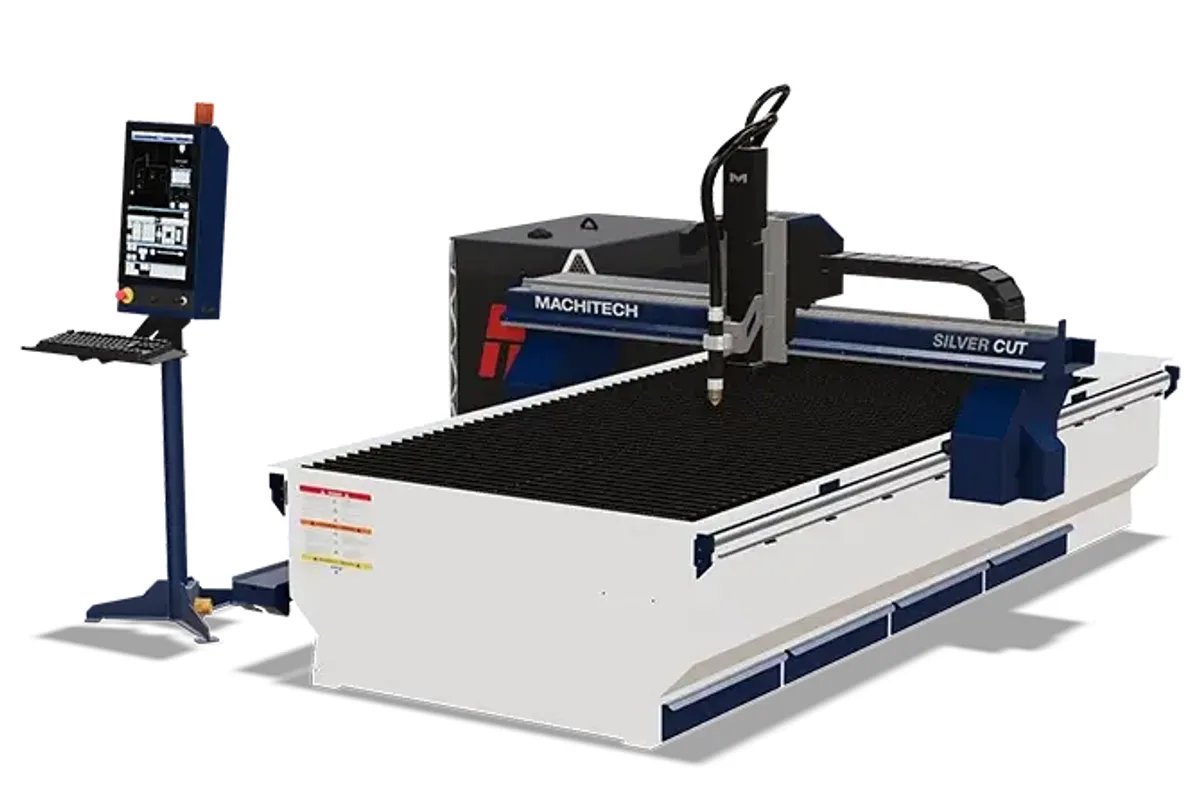

Machitech Silver Cut series CNC plasma table

Image: machitech.com, Machitech Automation

Key Specifications

Rapid Traverse

1,000 ipm (25,400 mm/min)

Accuracy

0.003 in (0.07 mm)

Repeatability

0.002 in (0.05 mm)

processing range

66 x 252 in (1,676 x 6,400 mm)

table type

Downdraft

plasma amperage

170A, 200A, 45-125A

How much does the Machitech Silver Cut 5x20 cost?

Price estimate

Uncertain

We do not have a price for the Machitech Silver Cut 5x20 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Two standard sheets end to end, or one long plate: the Machitech Silver Cut 5x20 stretches the narrow Silver Cut bed to a processing range of 66 x 252 in (1,676 x 6,400 mm). It is a downdraft table. Machitech does not list a water version at this length.

A long bed pays off in how the operator works. One half can be unloaded and reloaded while the torch cuts on the other, which is the closest a table without a shuttle comes to continuous running. Long parts such as stair stringers and frame rails fit in one piece. The downdraft bed has drawers for retrieving parts and slag.

The frame stays 95 in (2,416 mm) wide and grows to 290 in (7,380 mm) long. Machine weight is 5,140 lbs (2,330 kg) before the plasma source, and the table carries a workpiece of 6,120 lbs (2,775 kg), twice the figure of the Silver Cut 5x10.

Cutting performance is the family's: 600 ipm (15,240 mm/min) maximum cutting speed, 1,000 ipm (25,400 mm/min) rapid traverse, 0.003 in (0.07 mm) positional accuracy and 0.002 in (0.05 mm) repeatability, from servo motors on all axes under a steel gantry. Plate thickness goes to 1.5 in (38 mm) and Z-axis clearance is 7.5 in (190 mm). Plasma amperage is 170A, 200A, 45-125A, with the XPR170 CorePlus as the system the line is designed around. Options are pipe cutting for 1.6 to 8 in diameter, manual bevel, pneumatic scribing and oxyfuel.

Full Specifications

Parameter	Value
Processing Range	66 x 252 in (1,676 x 6,400 mm)
Table Type	Downdraft
Plasma Amperage	170A, 200A, 45-125A
Max Plate Thickness	1.5 in (38 mm)
Z Axis Clearance	7.5 in (190 mm)
Max Cutting Speed	600 ipm (15,240 mm/min)
Rapid Traverse Rate	1,000 ipm (25,400 mm/min)
Positioning Accuracy	0.003 in (0.07 mm)
Repeatability	0.002 in (0.05 mm)
Workpiece Weight	6,120 lbs (2,775 kg)
CNC Control	Machitech NX4 CNC
Laser Positioning	Included
Manual Bevel	Optional
Pneumatic Scribing	Optional
Oxyfuel Cutting	Optional, choice of fuel
Pipe Cutting	Optional, 1.6 to 8 in diameter
Machine Width	95 in (2,416 mm)
Machine Length	290 in (7,380 mm)
Machine Height	72 in (1,816 mm)
Machine Weight	5,140 lbs (2,330 kg), without plasma source or options
Install and Training	Included, on-site
Remote Support	Included, unlimited

Specifications sourced from machitech.com — verified 2026-10-05

Strengths & Limitations

Strengths

Processing range of 66 x 252 in (1,676 x 6,400 mm) for long parts or two sheets
Workpiece weight of 6,120 lbs (2,775 kg)
Downdraft bed with drawers for parts and slag
Same 95 in (2,416 mm) width as the 5x10
Servo-driven, 0.003 in (0.07 mm) positional accuracy

Limitations

Downdraft only; no water table at this length
Needs 290 in (7,380 mm) of floor length
Rapid traverse of 1,000 ipm (25,400 mm/min) on a long bed
Plate thickness remains 1.5 in (38 mm)

Best For

Long parts up to 252 in (6,400 mm) Loading one end while cutting the other Stair, frame and trailer components High-definition cutting in a narrow bay

Frequently Asked Questions

01 How long a plate does the Silver Cut 5x20 take?

The processing range is 66 x 252 in (1,676 x 6,400 mm) and the rated workpiece weight is 6,120 lbs (2,775 kg). Maximum plate thickness is 1.5 in (38 mm).

02 Can it be ordered as a water table?

No. The table type for the 5x20 is downdraft. Water or downdraft is offered on the Silver Cut 5x10 and Silver Cut 6x12 only.

03 How much space does the machine take?

Total width is 95 in (2,416 mm), total length 290 in (7,380 mm) and total height 72 in (1,816 mm). It weighs 5,140 lbs (2,330 kg) with standard equipment, without plasma source or options.

04 Does a longer bed change accuracy or speed?

The table lists the same figures for every Silver Cut size: 0.003 in (0.07 mm) positional accuracy, 0.002 in (0.05 mm) repeatability, 600 ipm (15,240 mm/min) cutting and 1,000 ipm (25,400 mm/min) rapid traverse.
