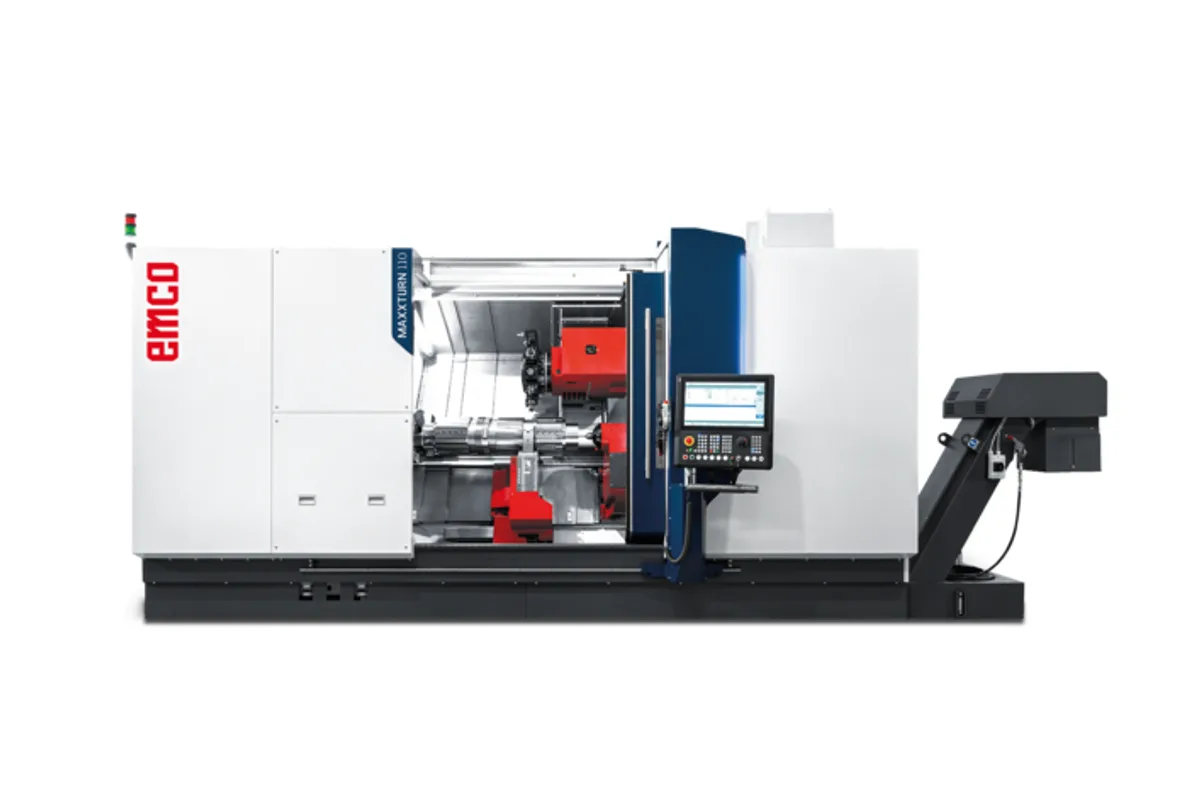

Emco Maxxturn 110

Three bed lengths define the Emco Maxxturn 110. Z travel is listed as 1560-2560-3560 mm and tailstock travel as 1300/2300/3300 mm, and Emco describes the range as a main spindle with three bed lengths up to 3500 mm. Around that sits a large-capacity lathe: 680 mm (26.8 in) maximum turning diameter, 840 mm (33.1 in) swing over the bed and a 110 mm (4.3 in) spindle bore that passes 95 mm (3.7 in) bar.

The spindle rows carry several drive variants. Speed is 3500/2500 (2000) rpm, power 33/52 kW and torque 800/2480 (3400) Nm on an A2-11 nose. The spread is wide. The lightest drive is a fast general-purpose spindle and the heaviest is a low-speed drive for large-diameter roughing, so the right variant depends on whether the work is mostly bar and small chuck parts or mostly big forgings and tube.

For a turning centre the Y axis is long at 180 mm (7.1 in), and X travel is 420 mm (16.5 in). The turret is listed as VDI 50 (BMT65p short) with 12 driven tools rated 4,000 rpm, 10 kW (13.4 hp) and 60 Nm (44.3 lb-ft). That milling torque is in a different class from the smaller Maxxturn machines and suits face milling and larger drills.

The tailstock is automatic, with an MK5 (MK6) taper and 150 (250) mm of quill travel, and a steady rest is offered for shafts. Machine weight is given as 17000/25000 kg depending on the version. The control is the Sinumerik ONE.
