Emco Emcoturn E25

Specs verified 2026-10-05 · emco-world.com Updated 2026-10-05

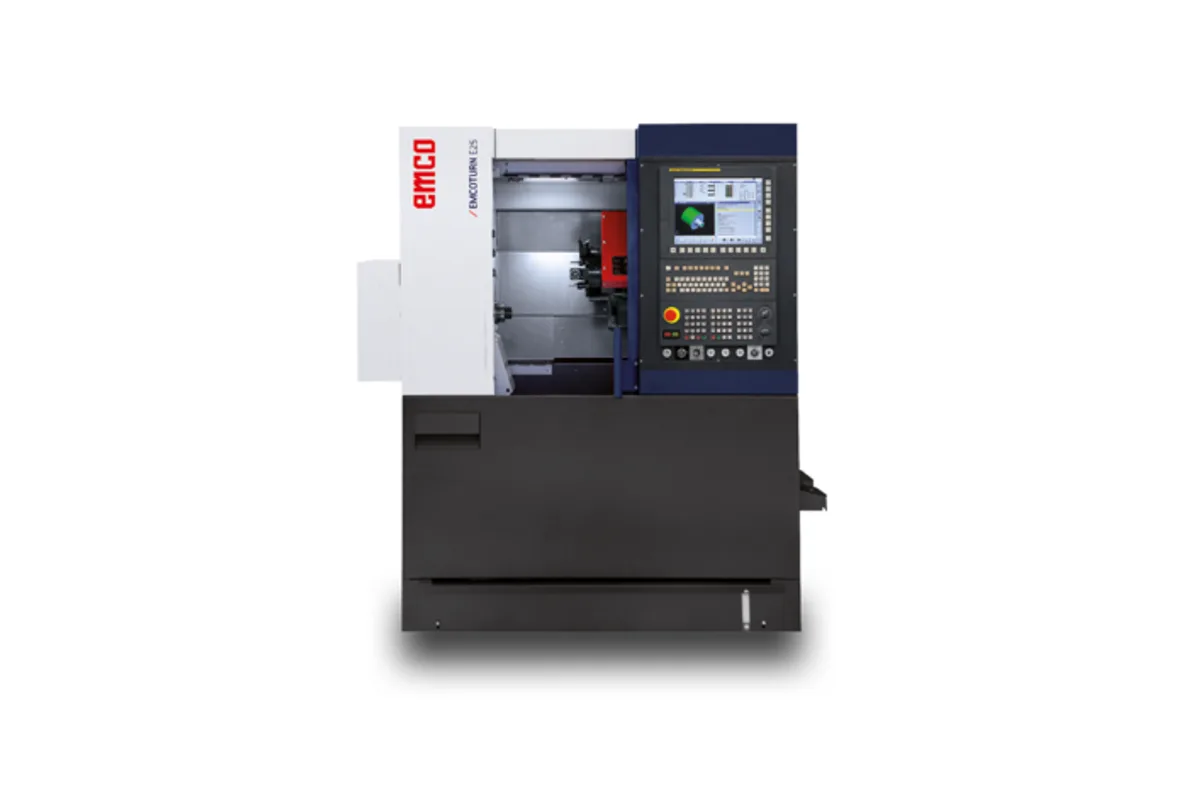

Image: emco-world.com, Emco

Key Specifications

Max Spindle

6,300 rpm

Spindle Power

5.5 kW (7.4 hp)

x axis travel

100 mm (3.9 in)

z axis travel

300 mm (11.8 in)

bar capacity

25.5 mm (1.0 in)

max turning diameter

85 mm (3.3 in)

How much does the Emco Emcoturn E25 cost?

Price estimate

Uncertain

We do not have a price for the Emco Emcoturn E25 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Emco Emcoturn E25 is a compact bar-and-chuck lathe built around a 25.5 mm (1.0 in) bar passage, a 85 mm (3.3 in) maximum turning diameter and a main spindle that runs to 6,300 rpm. It is the smallest of the three Emcoturn E machines, and everything about it is scaled to small parts: 100 mm (3.9 in) of X travel, 300 mm (11.8 in) of Z and 405 mm (15.9 in) between centres.

Spindle output is 5.5 kW (7.4 hp) and 35 Nm (25.8 lb-ft). Those are modest figures, and they suit the envelope, because a part that fits under this turning limit rarely asks for more. The nose is listed as ø70mm h5, not a standard short-taper size, so chucks and collet fixtures from other lathes will not bolt straight on.

The turret takes VDI 16 holders in 12 stations, and 6 of them can be driven. Driven tools turn at up to 6,000 rpm with 1.2 kW (1.6 hp) and 4 Nm (3.0 lb-ft). That covers cross holes, small flats and light slots, with the C axis that Emco lists for the main spindle doing the positioning. The travel row shows no Y figure and the table has no counter spindle; in this family those start with the Emcoturn E45.

Shaft work is held by a manual tailstock with an automatic quill, and the quill moves 120 mm (4.7 in). The machine weighs 1,400 kg (3,086 lb) and occupies 1,700 x 1,270 x 1,820 mm (66.9 x 50.0 x 71.7 in), which is why it ends up in cells and corners where a larger turning centre would not go. Emco names the Sinumerik 828D or the Fanuc 0iTD as the control.

Full Specifications

Parameter	Value
X Axis Travel	100 mm (3.9 in)
Z Axis Travel	300 mm (11.8 in)
Bar Capacity	25.5 mm (1.0 in)
Max Turning Diameter	85 mm (3.3 in)
Swing Over Bed	250 mm (9.8 in)
Distance Between Centers	405 mm (15.9 in)
Rapid Traverse X	15 m/min (591 ipm)
Rapid Traverse Z	24 m/min (945 ipm)
Max Spindle Speed	6,300 rpm
Spindle Nose	ø70mm h5
Spindle Motor Power	5.5 kW (7.4 hp)
Spindle Torque	35 Nm (25.8 lb-ft)
Tailstock Travel	200 mm (7.9 in)
Tailstock Quill Travel	120 mm (4.7 in)
Turret Tooling	VDI 16
Turret Stations	12
Driven Tool Stations	6
Driven Tool Speed	6,000 rpm
Driven Tool Power	1.2 kW (1.6 hp)
Driven Tool Torque	4 Nm (3.0 lb-ft)
Machine Dimensions	1,700 x 1,270 x 1,820 mm (66.9 x 50.0 x 71.7 in)
Machine Weight	1,400 kg (3,086 lb)

Specifications sourced from emco-world.com — verified 2026-10-05

Strengths & Limitations

Strengths

Small footprint: 1,700 x 1,270 x 1,820 mm (66.9 x 50.0 x 71.7 in) at 1,400 kg (3,086 lb)
Main spindle runs to 6,300 rpm, useful surface speed on diameters under 85 mm (3.3 in)
12-station VDI 16 turret with 6 driven positions and a C axis on the main spindle
Rapids of 15 m/min (591 ipm) in X and 24 m/min (945 ipm) in Z keep short cycles short
Choice of Sinumerik 828D or Fanuc 0iTD with dialogue programming

Limitations

Bar passage stops at 25.5 mm (1.0 in) and turning diameter at 85 mm (3.3 in)
Driven tools have 1.2 kW (1.6 hp) and 4 Nm (3.0 lb-ft): drilling and light milling only
No Y axis and no counter spindle in the table, so back-side work needs a second setup
The tailstock is manual; only the quill is automatic

Best For

Bar-fed small parts up to 25.5 mm (1.0 in) stock Fittings, pins and bushings under 85 mm (3.3 in) diameter Shops with little floor space for a turning centre Light cross-drilling and flats with 6 driven tools

Frequently Asked Questions

01 What bar size does the Emcoturn E25 take?

The table lists a bar diameter of 25.5 mm (1.0 in). Chuck work is limited by the 85 mm (3.3 in) maximum turning diameter and the 250 mm (9.8 in) swing over the bed, so this is a machine for small parts in both modes.

02 Does the Emcoturn E25 have driven tools?

Yes. 6 of the 12 turret stations can be driven, at up to 6,000 rpm with 1.2 kW (1.6 hp) and 4 Nm (3.0 lb-ft). Emco lists a C axis for the main spindle alongside them. The figures point to drilling, tapping and light milling, not heavy slotting.

03 How does the Emcoturn E25 differ from the Emcoturn E45?

Size and configuration. The Emcoturn E45 passes bar of 45 (51) mm, has 510 mm (20.1 in) of Z travel and lists Y travel and a counter spindle in its table. The E25 stays at 25.5 mm (1.0 in) bar and 300 mm (11.8 in) of Z, with a single spindle and a tailstock.

04 How much space does the Emcoturn E25 need?

The machine itself measures 1,700 x 1,270 x 1,820 mm (66.9 x 50.0 x 71.7 in) (length x width x height) and weighs 1,400 kg (3,086 lb). Allow extra length for a bar loader if the machine is going to run from bar stock.
