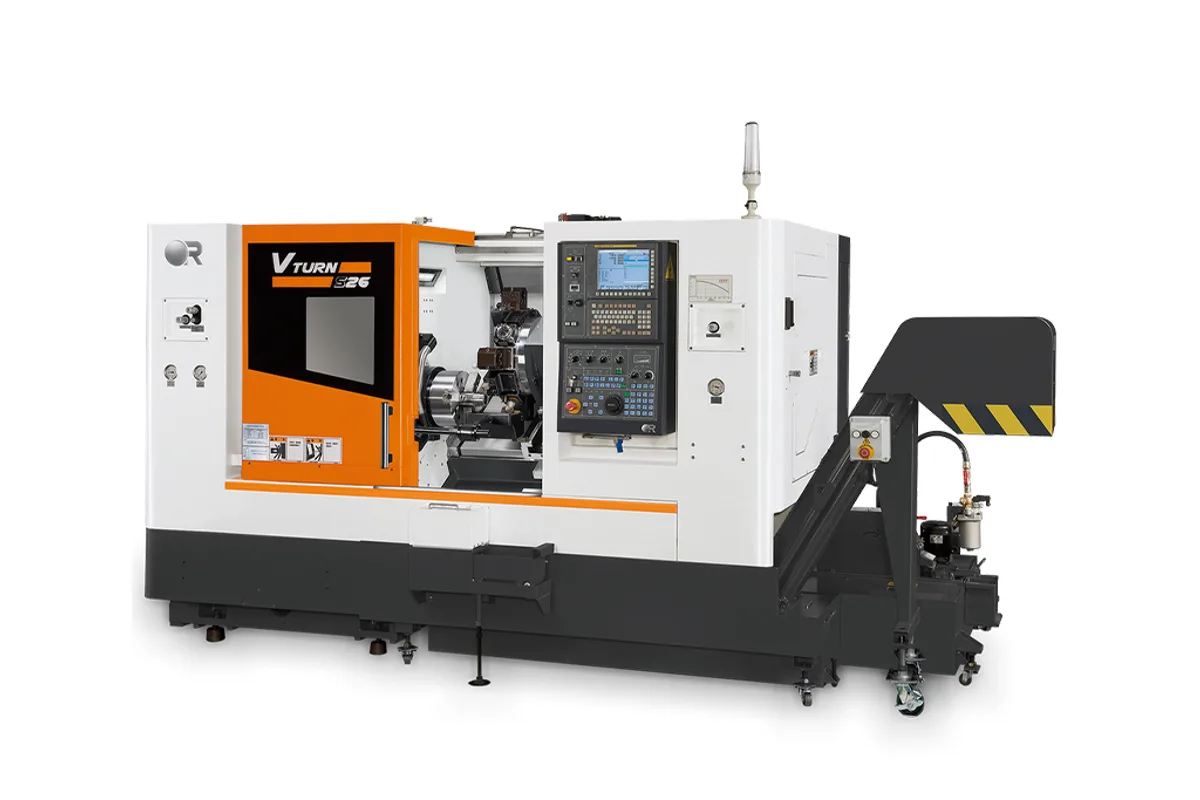

Victor Taichung Vturn-S26/110
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Max Turn Length
standard turning diameter
max turning diameter
swing over carriage
spindle nose
How much does the Victor Taichung Vturn-S26/110 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-S26/110 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Long shafts in the 10 in chuck class are the job of the Victor Taichung Vturn-S26/110. Its turning length is 1,130 mm (44.48 in), on the same A2-8, 3,500 rpm spindle and Ø75 mm (Ø2.95 in) bore as the short-bed Vturn-S26/60.
The pairing of that bed with the series' spindle is the interesting part. The maker rates the Vturn-S26 spindle at 22kW with 574Nm, so the long machine can rough a shaft hard and not merely finish it. Box slideways and a one-piece 30° slant bed carry the cut, and the M.T. #5 programmable tailstock holds the far end.
By configuration, the table reads as follows. The 2 Axis machine turns Ø430 mm (Ø16.92 in) at most, with Ø350 mm (Ø13.77 in) as the standard diameter and 10 tools. The C Axis machine turns Ø420 mm (Ø16.53 in), with Ø285 mm (Ø11.22 in) standard and 12 tools. Shanks are □25 mm throughout. Weight is 6,650 kg (14,660.72 lb) and 6,750 kg (14,881.18 lb).
Two things are missing for slender work. The S series option list has no steady rest, and Z rapid feed is 24 m/min, so long idle strokes take time. For stout shafts, rolls and axles under Ø285 mm that also need keyways or cross holes, the C Axis machine does the whole part.
Full Specifications
| Parameter | Value |
|---|---|
| Standard Turning Diameter | 2 Axis: Ø350 mm (Ø13.77 in); C Axis: Ø285 mm (Ø11.22 in) |
| Max Turning Diameter | 2 Axis: Ø430 mm (Ø16.92 in); C Axis: Ø420 mm (Ø16.53 in) |
| Max Turning Length | 1,130 mm (44.48 in) |
| Swing Over Carriage | Ø480 mm (Ø18.89 in) |
| Max Spindle Speed | 3,500 rpm |
| Spindle Nose | A2-8 (10") |
| Bar Capacity | Ø75 mm (Ø2.95 in) |
| Turret Tools | 2 Axis: 10; C Axis: 12 |
| Tool Shank Size | □25 mm |
| Tailstock Quill Taper | M.T. #5 |
| Machine Weight | 2 Axis: 6,650 kg (14,660.72 lb); C Axis: 6,750 kg (14,881.18 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,130 mm (44.48 in) turning length with an M.T. #5 programmable tailstock
- The series spindle is rated 22kW with 574Nm by the maker
- Ø75 mm (Ø2.95 in) bar capacity
- C Axis column keeps Ø420 mm (Ø16.53 in) of turning diameter and has 12 tools
- Box slideways on a one-piece 30° slant bed
Limitations
- No steady rest on the S series option list
- 10 tools on the 2 Axis turret
- Rapid feeds of 18/24 m/min (X/Z) over a long Z stroke
- Standard turning diameter with the C axis is Ø285 mm (Ø11.22 in)
Best For
Frequently Asked Questions
01
1,130 mm (44.48 in), the longest in the S26 size. The Vturn-S26/60 on the same spindle has 640 mm (25.19 in). Maximum turning diameter is Ø430 mm (Ø16.92 in) for the 2 Axis machine.
02
A programmable tailstock is on the S series standard list, and the table gives an M.T. #5 quill taper for this model. A tailstock centre is listed separately as an option.
03
6,650 kg (14,660.72 lb) as a 2 Axis machine and 6,750 kg (14,881.18 lb) with the C axis. Check the floor loading and the length needed for the chip conveyor before siting it.
04
A bar feeder interface and a bar stopper are both on the S series option list. Bar capacity through the A2-8 spindle is Ø75 mm (Ø2.95 in) at speeds up to 3,500 rpm.
