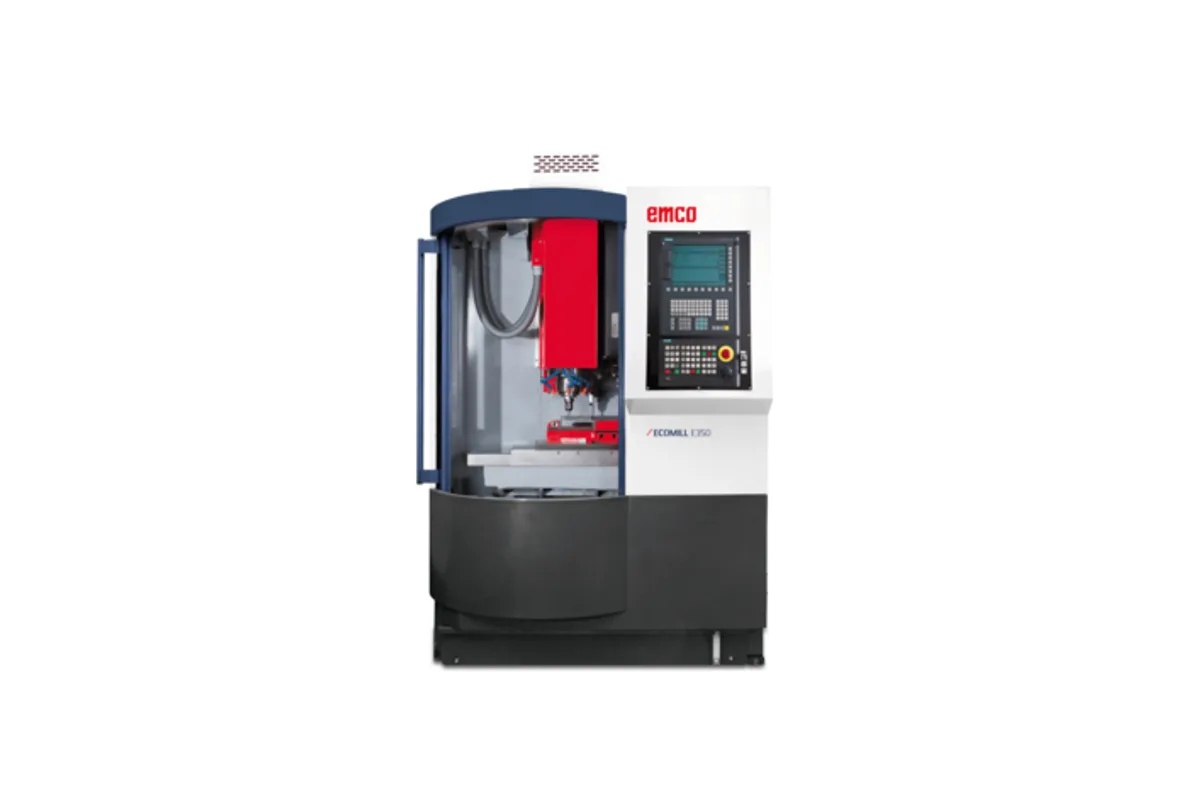

Emco Emcomill E350
Image: emco-world.com, Emco
Key Specifications
Max Spindle
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Emco Emcomill E350 cost?
Price estimate
We do not have a price for the Emco Emcomill E350 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Emco Emcomill E350 is a very small vertical machining centre: 350 mm (13.8 in) of X travel, 250 mm (9.8 in) of Y and 300 mm (11.8 in) of Z, in a machine that weighs 1,970 kg (4,343 lb) and stands on 1,600 x 1,700 x 2,200 mm (63.0 x 66.9 x 86.6 in). It is a production machine in miniature, with a 20-tool magazine, a two-arm changer and a Siemens control.
Size the work to the table before anything else. The clamping area is 520x300 mm and the table carries 100 kg (220 lb), fixture included. A single small vise or a fixture plate fills it. Within that envelope the machine is quick, with rapids of 24/24/24 m/min and a tool change of 2.5 s tool to tool.
The mechanical spindle reaches 10,000 rpm with 6.8 kW (S1) and 34 Nm (S6 60%). Those ratings point to aluminium, brass, plastics and light cuts in steel with small cutters. Tools can be up to 200 mm (7.9 in) long, and the diameter row reads 63 (80) mm; on magazines of this kind the bracketed figure normally applies with the neighbouring pockets empty, so confirm it.
A dividing unit as a 4th axis is optional. Emco pairs the machine with Siemens JobShop programming software and aims it at small to medium lot sizes.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 350 mm (13.8 in) |
| Y Axis Travel | 250 mm (9.8 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Distance Spindle Nose to Table | 120-420 mm |
| Rapid Traverse Xyz | 24/24/24 m/min |
| Table Size | 520x300 mm |
| Max Table Load | 100 kg (220 lb) |
| Tool Capacity | 20 |
| Tool Change Time | 2.5 s |
| Max Tool Diameter (full magazine) | 63 (80) mm |
| Max Tool Length | 200 mm (7.9 in) |
| Max Spindle Speed | 10,000 rpm |
| Spindle Motor Power | 6.8 kW (S1) |
| Spindle Torque | 34 Nm (S6 60%) |
| Machine Dimensions | 1,600 x 1,700 x 2,200 mm (63.0 x 66.9 x 86.6 in) |
| Machine Weight | 1,970 kg (4,343 lb) |
Specifications sourced from emco-world.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Footprint of 1,600 x 1,700 x 2,200 mm (63.0 x 66.9 x 86.6 in) and a weight of 1,970 kg (4,343 lb)
- 20-fold tool magazine with a two-arm changer, 2.5 s tool to tool
- 10,000 rpm mechanical spindle
- Optional dividing unit as a 4th axis
- Siemens control with JobShop programming software
Limitations
- Table load is only 100 kg (220 lb)
- Travels of 350 mm (13.8 in), 250 mm (9.8 in) and 300 mm (11.8 in) rule out all but small parts
- Spindle power of 6.8 kW (S1) and torque of 34 Nm (S6 60%) limit steel roughing
- The 4th axis is an option, not part of the base machine
Best For
Frequently Asked Questions
01
Travels are 350 mm (13.8 in) in X, 250 mm (9.8 in) in Y and 300 mm (11.8 in) in Z. The clamping area is 520x300 mm, the table load 100 kg (220 lb), and the spindle nose sits 120-420 mm above the table.
02
A mechanical spindle with a maximum speed of 10,000 rpm, a drive power of 6.8 kW (S1) and a torque of 34 Nm (S6 60%).
03
The magazine has 20 stations and is served by a two-arm changer with a tool-to-tool time of 2.5 s. Maximum tool diameter is listed as 63 (80) mm and maximum tool length as 200 mm (7.9 in).
04
The Emcomill 800 is a full-size 3-axis machine with 800 mm (31.5 in) of X travel, a 600 kg (1,323 lb) table load and 30 tools. The E350 is the compact alternative at 1,970 kg (4,343 lb).
