Emco S45

Specs verified 2026-10-05 · emco-world.com Updated 2026-10-05

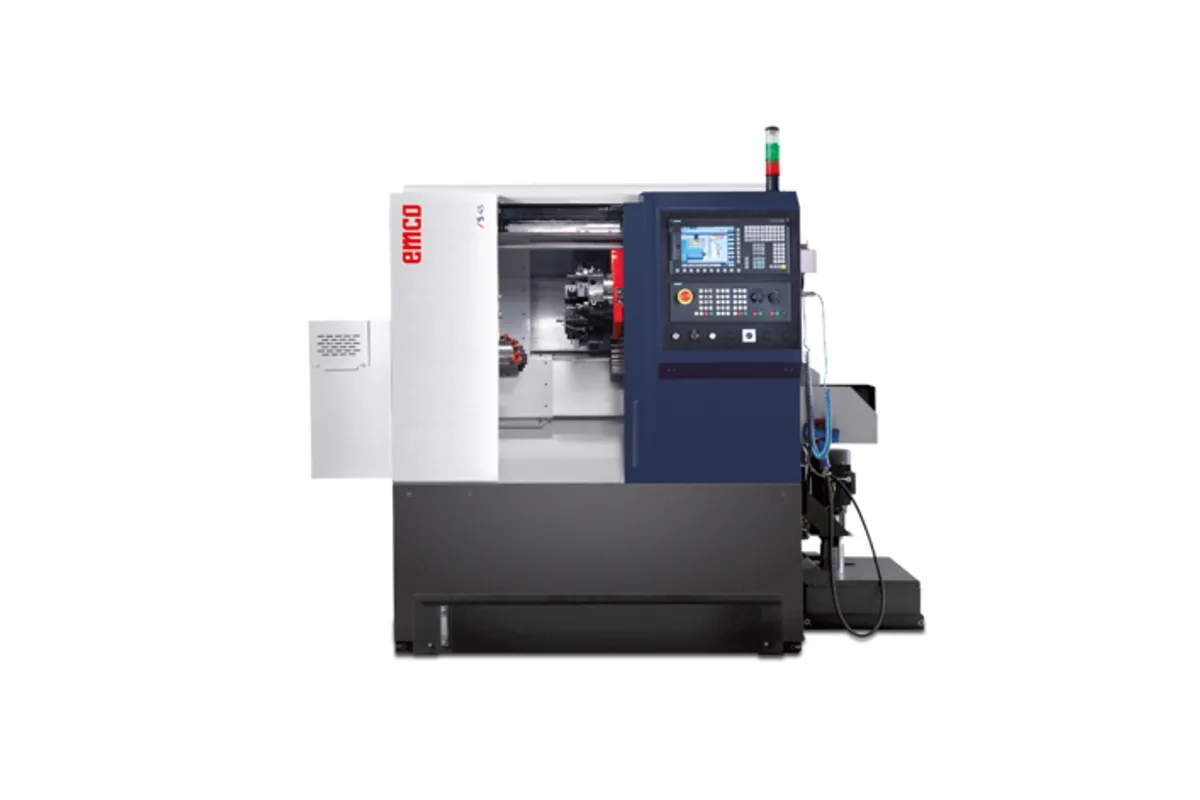

Image: emco-world.com, Emco

Key Specifications

Max Spindle

6,300 rpm

Spindle Power

11 kW (14.8 hp)

x axis travel

160 mm (6.3 in)

z axis travel

310 mm (12.2 in)

bar capacity

45 mm (1.8 in)

max turning diameter

170 mm (6.7 in)

How much does the Emco S45 cost?

Price estimate

Uncertain

We do not have a price for the Emco S45 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Emco S45 is a two-axis CNC lathe with a short bed: 310 mm (12.2 in) of Z travel, 160 mm (6.3 in) of X and a 45 mm (1.8 in) bar passage. Emco sells it as a plain production lathe, and the table reflects that. There is one spindle, one 12-station turret, and no Y travel or counter spindle row.

The spindle turns at up to 6,300 rpm with 11 kW (14.8 hp) and 70 Nm (51.6 lb-ft). Maximum turning diameter is 170 mm (6.7 in), well inside the 430 mm (16.9 in) swing, so the limit comes from the turret and slide, not from the bed. For bar parts and small chuck work that is rarely a constraint. For flanges it is.

Six of the turret stations can be driven, at 5,000 rpm, 4 kW (5.4 hp) and 16 Nm (11.8 lb-ft). Those are the same driven-tool ratings the Emcoturn E45 lists, on a machine with less Z travel and fewer configuration choices. A buyer choosing between the two is really deciding whether Y travel and a counter spindle will ever be needed.

The S45 weighs 3,300 kg (7,275 lb) and measures 2,250 x 1,675 x 1,940 mm (88.6 x 65.9 x 76.4 in). Emco names the Sinumerik 828D with ShopTurn or the Fanuc Oi TD with ManualGuide i as controls, both conversational systems aimed at programming at the machine.

Full Specifications

Parameter	Value
X Axis Travel	160 mm (6.3 in)
Z Axis Travel	310 mm (12.2 in)
Bar Capacity	45 mm (1.8 in)
Max Turning Diameter	170 mm (6.7 in)
Swing Over Bed	430 mm (16.9 in)
Distance Between Centers	631 mm (24.8 in)
Max Spindle Speed	6,300 rpm
Spindle Motor Power	11 kW (14.8 hp)
Spindle Torque	70 Nm (51.6 lb-ft)
Turret Stations	12
Driven Tool Stations	6
Driven Tool Speed	5,000 rpm
Driven Tool Power	4 kW (5.4 hp)
Driven Tool Torque	16 Nm (11.8 lb-ft)
Machine Dimensions	2,250 x 1,675 x 1,940 mm (88.6 x 65.9 x 76.4 in)
Machine Weight	3,300 kg (7,275 lb)

Specifications sourced from emco-world.com — verified 2026-10-05

Strengths & Limitations

Strengths

6,300 rpm spindle with 11 kW (14.8 hp) and 70 Nm (51.6 lb-ft)
6 driven stations in a 12-station turret, rated 4 kW (5.4 hp) and 16 Nm (11.8 lb-ft)
Compact: 2,250 x 1,675 x 1,940 mm (88.6 x 65.9 x 76.4 in), 3,300 kg (7,275 lb)
Sinumerik 828D with ShopTurn or Fanuc Oi TD with ManualGuide i for shop-floor programming

Limitations

Z travel is 310 mm (12.2 in), so long shafts are out
Maximum turning diameter is 170 mm (6.7 in) despite the 430 mm (16.9 in) swing
The table lists no Y axis and no counter spindle

Best For

Short bar parts from stock up to 45 mm (1.8 in) Small chuck parts under 170 mm (6.7 in) diameter Shops that program at the control

Frequently Asked Questions

01 What size parts fit the Emco S45?

Bar up to 45 mm (1.8 in), turning diameters up to 170 mm (6.7 in) and lengths within 310 mm (12.2 in) of Z travel. The distance between centres is 631 mm (24.8 in) and the swing over the bed is 430 mm (16.9 in).

02 Does the S45 have live tooling?

Yes. 6 of the 12 turret stations can be driven, at up to 5,000 rpm with 4 kW (5.4 hp) and 16 Nm (11.8 lb-ft). The table does not list a Y axis, so milling is limited to what a C axis and radial or axial tools can reach on centre.

03 How does the S45 differ from the S65?

The S65 is the larger machine: a 65 mm (2.6 in) bar passage, 610 mm (24.0 in) of Z travel, 18 kW (24.1 hp) and 12 driven stations. The S45 runs faster, 6,300 rpm against the 4,200 rpm of the S65, and weighs 3,300 kg (7,275 lb).

04 Which controls does Emco offer on the S45?

Emco names the Sinumerik 828D or the Fanuc Oi TD, with ShopTurn and ManualGuide i as the respective conversational programming systems. Check which one a quoted machine carries, since programs and operator training do not carry over between them.
