Ecoca VB-2000
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
How much does the Ecoca VB-2000 cost?
Price estimate
We do not have a price for the Ecoca VB-2000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 17,200 kg (37,919 lb), the Ecoca VB-2000 is the heaviest machining center Ecoca lists and the longest: 2,000 mm (78.7 in) of X travel over a 2,100 x 850 mm (82.7 x 33.5 in) table that takes 3,000 kg (6,614 lb). Y travel is 810 mm (31.9 in) and Z travel 700 mm (27.6 in).
A fixed-column, moving-table VMC of this length is a way to machine long parts without buying a bridge mill. Machine beds, press plates, long weldments and rows of smaller parts on a common fixture all fit. The table is the moving mass, and with 3,000 kg (6,614 lb) on it there is a lot to accelerate. That is reflected in the rapid traverse rate, which Ecoca gives as 15/15/15 m/min (591/591/591 ipm), the lowest in the VB table; the VB-1400 is listed at 20/20/15 m/min (787/787/591 ipm).
Ecoca's description of the series fits this model especially well. Four guide ways on the base distribute heavy loading evenly, which on a long saddle keeps the table supported toward the ends of its stroke. The guide ways of all 3 axes are coated with Turcite-B, and the ball screws are pre-loaded and pre-tensioned.
The spindle does not grow with the machine. It is the BT-50, 8,000 rpm belt-drive unit of the VB-1400 and VB-1600, with a 15/18.5 kW (20.1/24.8 hp) motor and a 20-tool armless changer. On a part two metres long, cycle time may depend more on that spindle than on axis speed, so check the torque it offers. Foundation and access for a machine of this weight should be planned before ordering.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 2,100 x 850 mm (82.7 x 33.5 in) |
| Max Table Load | 3,000 kg (6,614 lb) |
| X Axis Travel | 2,000 mm (78.7 in) |
| Y Axis Travel | 810 mm (31.9 in) |
| Z Axis Travel | 700 mm (27.6 in) |
| Spindle Motor Power | 15/18.5 kW (20.1/24.8 hp) |
| Spindle Taper | BT-50 |
| Max Spindle Speed | 8,000 rpm (belt drive) |
| Rapid Traverse Xyz | 15/15/15 m/min (591/591/591 ipm) |
| Tool Capacity | 20 |
| ATC Type | Armless |
| Guideways | HARD RAIL |
| Machine Weight | 17,200 kg (37,919 lb) |
Specifications sourced from ecoca.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,000 mm (78.7 in) X travel on a 2,100 x 850 mm (82.7 x 33.5 in) table
- 3,000 kg (6,614 lb) table load, the highest in Ecoca's VMC range
- 17,200 kg (37,919 lb) box-way structure with four guide ways on the base
- BT-50 spindle, 20 tools and a standard spindle cooling system
Limitations
- Rapid traverse is 15/15/15 m/min (591/591/591 ipm), the slowest of the VB series
- Spindle motor remains 15/18.5 kW (20.1/24.8 hp) on the largest machine
- Y travel of 810 mm (31.9 in) is no wider than on the VB-1600
- Armless ATC and no published tool weight limit; heavy foundation needed
Best For
Frequently Asked Questions
01
The table is 2,100 x 850 mm (82.7 x 33.5 in) with a maximum load of 3,000 kg (6,614 lb). Travels are 2,000 mm (78.7 in) in X, 810 mm (31.9 in) in Y and 700 mm (27.6 in) in Z.
02
15/15/15 m/min (591/591/591 ipm) for X, Y and Z. That is slower than the 20/20/15 m/min (787/787/591 ipm) listed for the VB-1400, which is consistent with the heavier table and load of this model.
03
A BT-50 taper spindle, belt driven, with a top speed of 8,000 rpm and a spindle motor listed as 15/18.5 kW (20.1/24.8 hp). The table for the VB series shows no other spindle or motor for this size.
04
The net machine weight is 17,200 kg (37,919 lb). The VB-1600 weighs 12,500 kg (27,557 lb). Ecoca publishes no footprint on the page, so ask for the foundation and layout drawings.
More from Ecoca
Other Vertical Machining Centers (VMC)
TRAK DPM RX2
Campro CNV-750
Hurco BX40i
Haas VF-4SS

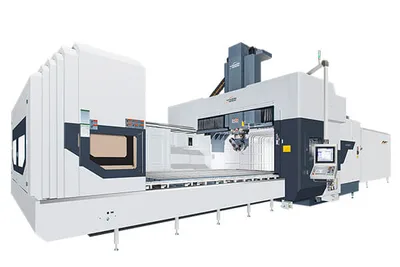

Vision Wide NF-4023 / NF-4030
