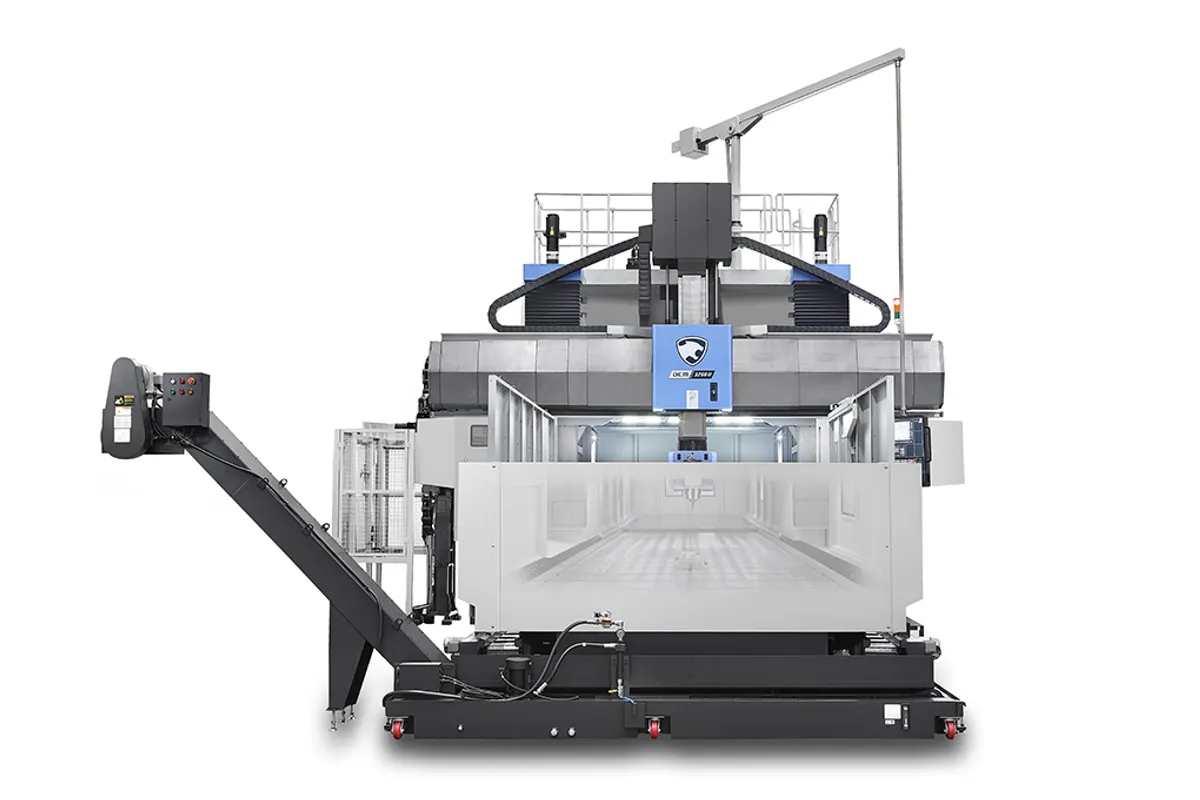

DN Solutions DCM 3260 U

$2,200,000 - $3,000,000 Updated 2026-03-19

Key Specifications

X Travel

6,250 mm (246.1 in)

Y Travel

3,700 mm (145.7 in)

Z Travel

1,000 mm (39.4 in)

Max Spindle

15,000 RPM

Spindle Taper

HSK-A100

Tool Capacity

Overview

The DN Solutions DCM 3260 U combines the wider DCM 32xx column spacing with 6,250 mm of X-travel, creating a 6,100 x 2,700 mm working surface that supports 39,000 kg (85,980 lb). It's the mid-range option in the DCM 32xx series, bridging the gap between the 5-meter 3250 U and the 8-meter 3280 U.

With 3,700 mm of Y-travel and the wider 2,700 mm table, the DCM 3260 U opens up machining of parts that are both long and wide — full-size automotive body side dies, wide aerospace panels, and oversized mold halves that won't fit on the narrower DCM 27xx series. The W-axis provides 1,100 mm of crossrail travel for vertical flexibility on tall parts and deep cavities.

The spindle runs the DCM standard: 15,000 RPM, 46 kW, 146 Nm through HSK-A100. The universal head delivers 5-axis positioning, and auto-change head attachments provide versatility between roughing and finishing operations. DSQ I/II/III functions optimize surface finish quality.

Rapid traverse hits 16/20/15/3 m/min on X/Y/Z/W. The 40-tool magazine is standard. U-head cooling and comprehensive thermal compensation are included.

At 91,000 kg (200,622 lb), the DCM 3260 U is a 91-ton machine with a footprint of 15,710 x 8,230 x 7,700 mm. That's over 15 meters long and 8 meters wide — installation planning starts early and involves structural engineers, foundation specialists, and rigging experts.

The 39,000 kg table capacity is a sweet spot for shops working with large die blocks and heavy mold assemblies. It's enough capacity for most parts that fit within the 6-meter envelope without paying for the 45,000 kg capacity of the larger 37xx and 42xx models.

Full Specifications

Parameter	Value
X-Axis Travel	6,250 mm (246.1 in)
Y-Axis Travel	3,700 mm (145.7 in)
Z-Axis Travel	1,000 mm (39.4 in)
Travel W	1,100 mm (43.3 in)
Table Size	6,100 x 2,700 mm (240.2 x 106.3 in)
Max Workpiece Weight	39,000 kg (85,980 lb)
Max Spindle Speed	15,000 RPM
Spindle Motor Power	46 kW (61.7 hp)
Spindle Torque	146 Nm (107.7 ft-lbs)
Spindle Taper	HSK-A100
Tool Capacity	40
Rapid Traverse X	16 m/min (630 ipm)
Rapid Traverse Y	20 m/min (787 ipm)
Rapid Traverse Z	15 m/min (591 ipm)
Rapid Traverse W	3 m/min (118 ipm)
Machine Dimensions	15,710 x 8,230 x 7,700 mm (619 x 324 x 303 in)
Machine Weight	91,000 kg (200,622 lb)
X Axis Travel Distance	6250 mm
Y Axis Travel Distance	3700 mm
Z Axis Travel Distance	1000 mm
Metric	IMPERIAL
Capacity	Table to spindle nose
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel DistanceX1/X2-Axis Rapid Traverse
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid TraverseW-Axis Rapid Traverse
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle TorqueTool Taper
Table	Table LengthTable WidthMaximum Workpiece weight
Tool Storage Capacity	No. of tool station
Dimensions	LengthHeightWidthWeight
Favorites	DCM 2750U

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

6,250 mm X-travel with 2,700 mm table width covers parts that are both long and wide
3,700 mm Y-travel provides generous cross-axis reach for the widest workpieces
39,000 kg table capacity handles extremely heavy die blocks and large castings
91,000 kg machine mass ensures vibration-free cutting on large surfaces
W-axis crossrail with 1,100 mm travel for deep cavity and tall part access
DSQ I/II/III and auto-change heads optimize die/mold surface quality and productivity

Limitations

91,000 kg weight requires extensive foundation engineering and facility preparation
15+ meter length and 8+ meter width demand substantial dedicated floor space
40-tool magazine may limit complex multi-tool programs on 6-meter parts
Investment of $2.2-3M plus installation costs targets only large-volume operations

Best For

Automotive die shops cutting wide body panel dies that exceed the DCM 27xx's table width Aerospace manufacturers machining broad structural panels and wing skins with 5-axis contours Large injection mold shops producing wide mold halves for automotive and appliance parts Energy sector operations cutting wide turbine casings and diaphragms Shops that need both 6-meter length and over 2.2 meters of table width

Frequently Asked Questions

01 How does the DCM 3260 U compare to the DCM 2760 U?

The DCM 3260 U provides 500 mm more table width (2,700 vs 2,200 mm), 500 mm more Y-travel (3,700 vs 3,200 mm), and 9,000 kg more table capacity (39,000 vs 30,000 kg). X and Z travel are identical. The 3260 U weighs 15,000 kg more (91,000 vs 76,000 kg). Choose the 3260 U when your parts need the wider table. If 2,200 mm table width is sufficient, the 2760 U saves money and floor space.

02 What's the advantage of the DCM 32xx wider column spacing?

The wider columns allow a broader table (2,700 mm vs 2,200 mm) and more Y-travel (3,700 mm vs 3,200 mm). This isn't just about numbers — it changes which parts physically fit on the machine. Wide automotive dies and broad aerospace panels that overhang a 2,200 mm table clamp safely within the 2,700 mm surface.

03 Is 39,000 kg table capacity enough for most applications?

For parts that fit within the 6,100 x 2,700 mm table, 39,000 kg is typically more than adequate. A solid steel block filling that entire table surface would weigh far less than 39 tons. The capacity provides comfortable margins for the heaviest die blocks and castings you'd put on a table this size.

04 What surface finishes are achievable?

With DSQ I/II/III functions active, proper tooling, and optimized parameters, Ra 0.4-0.8 um finishes are standard on die/mold surfaces. The 91,000 kg machine mass contributes to vibration-free cutting, and the universal head cooling system prevents thermal drift during finishing passes.
