DN Solutions DVF 5000

Est. $250,000 - $385,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

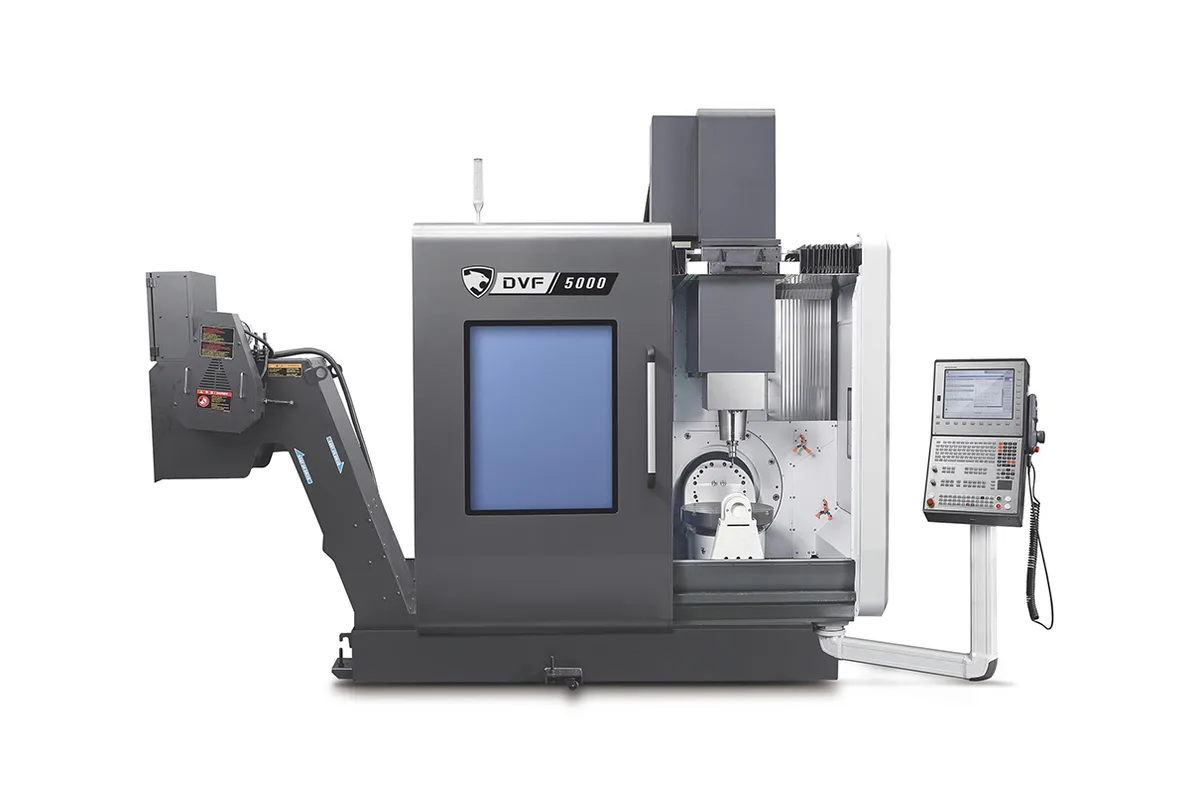

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

625 mm (25 in)

Y Travel

450 mm (18 in)

Z Travel

400 mm (16 in)

Max Spindle

12,000 rpm; option: 18,000 rpm

Spindle Taper

ISO 40

Tool Capacity

How much does the DN Solutions DVF 5000 cost?

Estimated price range

Est.$250,000 - $385,000

Our best estimate for a 5-axis machining center in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

With a 500 mm (20 in) table rated for 400 kg (882 lb), the DN Solutions DVF 5000 is the second size in the DVF family of 5-axis vertical machining centers. It travels 625 mm (25 in) in X, 450 mm (18 in) in Y and 400 mm (16 in) in Z, and rapids at 40 m/min (1,575 ipm).

Its nearest relative is the DVF 4000, and travel hardly separates them: that machine has 620 mm (24 in), 440 mm (17 in) and 430 mm (17 in). What differs is how much can sit on the table. The DVF 5000 carries double the 200 kg (441 lb) of the DVF 4000, yet the DVF 4000 and the DVF 5000 each weigh 7,500 kg (16,535 lb), so the extra capacity does not come with a heavier frame.

The standard spindle is ISO 40, 12,000 rpm, 18.5 kW (25 hp) and 118 N·m (87 ft-lb). Two options change that: an 18,000 rpm speed and a 22 kW (30 hp) rating. They appear in separate rows and the table does not say whether they belong to one spindle, so ask. Torque is listed at 118 N·m (87 ft-lb) with no alternative, which keeps this a machine for moderate cuts. A stronger standard spindle starts with the DVF 6500, at 204 N·m (151 ft-lb).

The figure to watch is Z. At 400 mm (16 in) it is shorter than the table is wide, and it has to hold the part, the fixture and the tool above a tilting table. Tall workpieces run out of height before they run out of table.

B and C are each listed at 20 rpm and the magazine holds 30 tools. DN's series features, a standard tool length measurement probe, standard spindle cooling and thermal compensation, apply here too. The machine occupies 2,700 × 2,205 mm (106 × 87 in) and stands 2,890 mm (114 in) high.

Full Specifications

Parameter	Value
X-Axis Travel	625 mm (25 in)
Y-Axis Travel	450 mm (18 in)
Z-Axis Travel	400 mm (16 in)
Rapid Traverse Rate	40 m/min (1,575 ipm)
Rapid Traverse C	20 rpm
Rapid Traverse B	20 rpm
Max Spindle Speed	12,000 rpm; option: 18,000 rpm
Spindle Motor Power	18.5 kW (25 hp); option: 22 kW (30 hp)
Spindle Torque	118 N·m (87 ft-lb)
Spindle Taper	ISO 40
Table Diameter	500 mm (20 in)
Max Table Load	400 kg (882 lb)
Tool Capacity	30
Floor Space Required	2,700 × 2,205 × 2,890 mm (106 × 87 × 114 in)
Machine Weight	7,500 kg (16,535 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

400 kg (882 lb) table load on a 500 mm (20 in) table, in a machine that weighs 7,500 kg (16,535 lb)
40 m/min (1,575 ipm) rapids, against 36 m/min (1,417 ipm) on the DVF 4000
Spindle options of 18,000 rpm and 22 kW (30 hp) over the standard 12,000 rpm and 18.5 kW (25 hp)
Occupies only 2,700 × 2,205 mm (106 × 87 in) of floor
DN lists a tool length measurement probe as standard for the series

Limitations

Z travel is 400 mm (16 in), less than the 430 mm (17 in) of the smaller DVF 4000
Spindle torque is 118 N·m (87 ft-lb) with no higher figure listed; the DVF 6500 has 204 N·m (151 ft-lb)
18,000 rpm and 22 kW (30 hp) are options, not part of the standard machine
The magazine is listed at 30 tools, which a family of 5-axis parts can fill quickly

Best For

5-axis parts up to 400 kg (882 lb) that fit a 500 mm (20 in) table Low, wide workpieces that stay within 400 mm (16 in) of Z Light-to-moderate cuts with 40-taper tooling and 118 N·m (87 ft-lb) Fine-detail work with small cutters when the 18,000 rpm option is fitted

Frequently Asked Questions

01 How much weight can the DVF 5000 table carry?

400 kg (882 lb) on a table 500 mm (20 in) in diameter. That is twice the 200 kg (441 lb) rating of the DVF 4000. Count the fixture or vise in that figure, and remember that a load held far from the table centre is harder on a tilting table than the same load at the centre.

02 Should I choose the DVF 5000 or the DVF 6500?

The DVF 6500 is a much larger machine: 750 mm (30 in), 785 mm (31 in) and 600 mm (24 in) of travel, a 600 kg (1,323 lb) table load, a 40-tool magazine and a 204 N·m (151 ft-lb) spindle, at 14,500 kg (31,967 lb). The DVF 5000 has 625 mm (25 in), 450 mm (18 in) and 400 mm (16 in), carries 400 kg (882 lb), lists 118 N·m (87 ft-lb) and weighs 7,500 kg (16,535 lb). Pick on Z height, part weight and how hard you need to cut.

03 Does the DVF 5000 come with an 18,000 rpm spindle?

Not as standard. The standard spindle is 12,000 rpm with 18.5 kW (25 hp) and 118 N·m (87 ft-lb) on an ISO 40 taper. 18,000 rpm is listed as an option, and so is a 22 kW (30 hp) rating. The table does not state whether the two options go together, so confirm the pairing with DN.

04 Why does the short Z travel of the DVF 5000 matter?

Z is 400 mm (16 in), and on a tilting-table machine that distance is shared by the fixture, the part and the tool with its holder. A part that is comfortably inside the 500 mm (20 in) table can still be too tall once it sits on a vise or riser and a long tool is loaded. Check the stack-up for the tallest job before deciding.

05 What automation can be added to the DVF 5000?

DN states that compact automation systems, named as AWC, RPS and LPS, are available for the DVF series, and that the series magazine can hold up to 120 tools with a multi-pallet system for unmanned running. Those are series maxima and options. The DVF 5000 column itself lists a 30-tool magazine.
