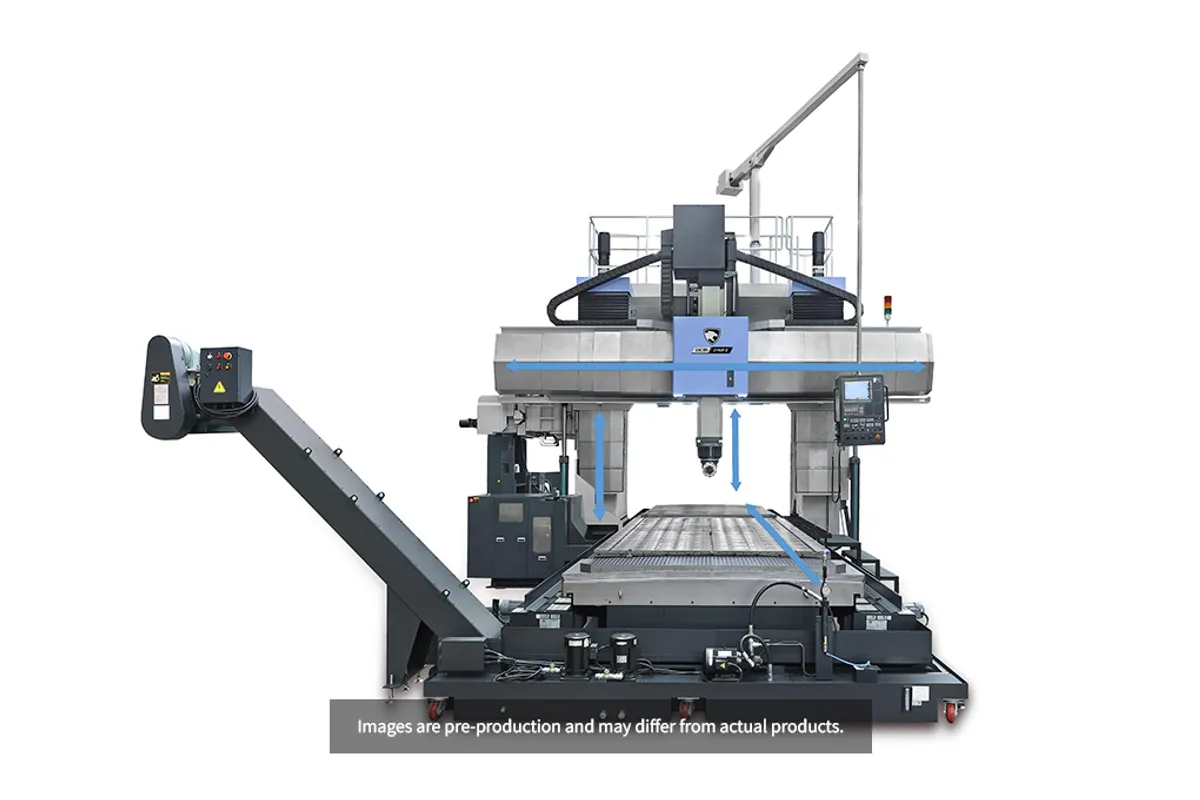

DN Solutions DCM 2760 U

$1,800,000 - $2,600,000 Updated 2026-03-19

Key Specifications

X Travel

6,250 mm (246.1 in)

Y Travel

3,200 mm (126.0 in)

Z Travel

1,000 mm (39.4 in)

Max Spindle

15,000 RPM

Spindle Taper

HSK-A100

Tool Capacity

Overview

The DN Solutions DCM 2760 U pushes X-travel to 6,250 mm while holding the same 3,200 mm Y, 1,000 mm Z, and 1,100 mm W-axis as the rest of the DCM 27xx family. The 6,100 x 2,200 mm table handles up to 30,000 kg. When you need to machine 6-meter-long parts with full 5-axis capability and W-axis vertical flexibility, this is the machine that gets the job done.

The spindle runs the DCM family standard: 15,000 RPM, 46 kW, 146 Nm, HSK-A100 with a universal head for 5-axis positioning. Auto-change head attachments provide access to high-precision and high-speed configurations. DSQ I/II/III functions smooth feed rates and optimize paths for die/mold surface quality. The U-head cooling system maintains thermal stability.

Rapid traverse matches the rest of the DCM 27xx line at 16/20/15/3 m/min on X/Y/Z/W. The 40-tool magazine is standard. Rear and semi covers contain chips.

At 76,000 kg (167,551 lb), the DCM 2760 U is a massive machine spanning 15,710 x 7,730 x 7,700 mm. The footprint is driven by that 6+ meter X-travel — you'll need roughly 16 meters of clear floor space just for the machine, plus access for maintenance and chip removal.

The 2760 U fills the gap between the 5-meter 2750 U and the 8-meter 2780 U. It's sized for workpieces that are genuinely too long for a 5-meter machine but don't require the full 8-meter capability of the largest models. Smart sizing saves significant capital and floor space.

Full Specifications

Parameter	Value
X-Axis Travel	6,250 mm (246.1 in)
Y-Axis Travel	3,200 mm (126.0 in)
Z-Axis Travel	1,000 mm (39.4 in)
Travel W	1,100 mm (43.3 in)
Table Size	6,100 x 2,200 mm (240.2 x 86.6 in)
Max Workpiece Weight	30,000 kg (66,139 lb)
Max Spindle Speed	15,000 RPM
Spindle Motor Power	46 kW (61.7 hp)
Spindle Torque	146 Nm (107.7 ft-lbs)
Spindle Taper	HSK-A100
Tool Capacity	40
Rapid Traverse X	16 m/min (630 ipm)
Rapid Traverse Y	20 m/min (787 ipm)
Rapid Traverse Z	15 m/min (591 ipm)
Rapid Traverse W	3 m/min (118 ipm)
Machine Dimensions	15,710 x 7,730 x 7,700 mm (619 x 304 x 303 in)
Machine Weight	76,000 kg (167,551 lb)
X Axis Travel Distance	6250 mm
Y Axis Travel Distance	3200 mm
Z Axis Travel Distance	1000 mm
Metric	IMPERIAL
Capacity	Table to spindle nose
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel DistanceX1/X2-Axis Rapid Traverse
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid TraverseW-Axis Rapid Traverse
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle TorqueTool Taper
Table	Table LengthTable WidthMaximum Workpiece weight
Tool Storage Capacity	No. of tool station
Dimensions	LengthHeightWidthWeight
Favorites	DCM 2750U

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

6,250 mm X-travel handles 6-meter workpieces that most 5-axis platforms can't accommodate
30,000 kg table capacity supports heavy die blocks and large castings
W-axis crossrail adds 1,100 mm of vertical positioning for deep cavity access
76,000 kg mass provides exceptional damping for vibration-free cutting on large surfaces
DSQ I/II/III die machining quality functions optimize surface finish automatically
Auto-change head attachments for seamless roughing-to-finishing transitions

Limitations

76,000 kg weight and 15+ meter length require substantial foundation and facility investment
40-tool magazine is tight for complex programs spanning 6 meters of travel
Price approaching $2M+ limits accessibility to large operations with matching workloads
W-axis rapid at 3 m/min makes crossrail repositioning a cycle time consideration

Best For

Automotive die shops cutting body-in-white dies and large transfer die sets over 5 meters long Aerospace manufacturers machining 6-meter structural components and wing structures Energy sector shops cutting large turbine components and reactor vessel parts Marine and defense manufacturers producing long precision components Shops with parts too long for 5-meter machines but not large enough to justify an 8-meter platform

Frequently Asked Questions

01 How does the DCM 2760 U compare to the 2750 U and 2780 U?

The 2760 U offers 6,250 mm X-travel — 1,000 mm more than the 2750 U (5,250 mm) and 2,000 mm less than the 2780 U (8,250 mm). Table capacity is 30,000 kg for both the 2750 and 2760 U, jumping to 40,000 kg on the 2780 U. The 2760 U is the right choice when your parts are in the 5-6 meter range. Going to the 2780 U for parts that fit on the 2760 U wastes significant capital and floor space.

02 Can this machine handle simultaneous 5-axis contouring?

Yes. The universal head supports full simultaneous 5-axis machining. The X/Y/Z linear axes plus two rotary axes in the universal head interpolate simultaneously for complex 5-axis toolpaths. The W-axis is used for positioning, not simultaneous interpolation.

03 What types of materials can the DCM 2760 U cut?

The HSK-A100 spindle with 146 Nm torque handles aluminum, steel, cast iron, and tool steel up to moderate hardness. For aggressive roughing in tough materials, the auto-change head attachments provide higher torque options. The machine's 76,000 kg mass gives it the stability for heavy cutting, and the thermal compensation system maintains accuracy across material types and cutting conditions.

04 What floor space is needed?

The machine itself spans 15,710 x 7,730 mm. Plan for at least 18 x 10 meters of clear floor space to allow for maintenance access, chip removal, and workpiece handling on all sides. Overhead clearance needs to accommodate the 7,700 mm machine height plus crane access for installation and head changes.
