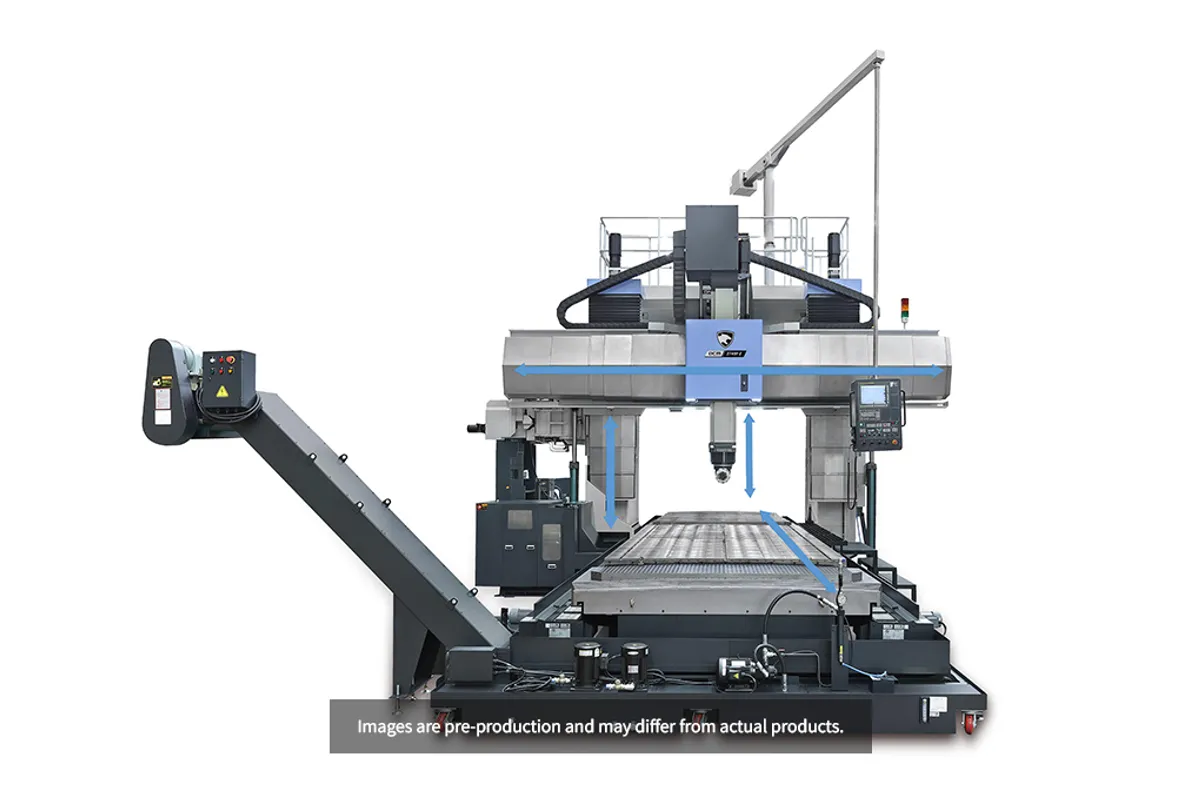

DN Solutions DCM 3260 F II

$1,200,000 - $1,700,000 Updated 2026-03-19

Key Specifications

Table Size

6,100 x 2,700 mm (240 x 106 in)

x axis travel

6,250 mm (246 in)

y axis travel

3,700 mm (146 in)

z axis travel

700 mm (28 in)

table load capacity

39,000 kg (85,980 lb)

rapid traverse x

16 m/min (630 in/min)

Overview

The DN Solutions DCM 3260 F II combines the wider 32-series column spacing with 6,250 mm of X-axis travel, creating a machine that handles both wide and long workpieces. The 6,100 x 2,700 mm table rated for 39,000 kg puts this in the territory of the most demanding mold, die, and structural machining applications in heavy industry.

Y-axis travel reaches 3,700 mm — 500 mm more than the 27-series machines — and the 2,700 mm table width provides clearance for parts that simply won't fit between narrower columns. At 86,000 kg, this machine has the gravitational authority to absorb cutting forces from the most aggressive roughing strategies in cast iron and tool steel. Rapids hold at 16/20/15 m/min on X/Y/Z.

The DCM platform features carry through: W-axis crossrail for independent depth positioning above the 700 mm Z-stroke, auto-change head attachments for switching between roughing, finishing, and angular configurations, ram-type spindle options, and DSQ I/II/III functions for die-spotting and precision contouring. The footprint stretches to 15,710 x 8,230 mm. For shops that need both the width of the 32-series and the length to cover 6-meter parts, the DCM 3260 F II is one of the few machines in the world that delivers both dimensions in a single platform. It competes with European gantry mills from Waldrich Siegen and Pama, typically at a more accessible price point.

Full Specifications

Parameter	Value
X Axis Travel	6,250 mm (246 in)
Y Axis Travel	3,700 mm (146 in)
Z Axis Travel	700 mm (28 in)
Table Size	6,100 x 2,700 mm (240 x 106 in)
Table Load Capacity	39,000 kg (85,980 lb)
Rapid Traverse X	16 m/min (630 in/min)
Rapid Traverse Y	20 m/min (787 in/min)
Rapid Traverse Z	15 m/min (591 in/min)
Machine Length	15,710 mm (619 in)
Machine Height	6,700 mm (264 in)
Machine Width	8,230 mm (324 in)
Machine Weight	86,000 kg (189,598 lb)
X Axis Travel Distance	6250 mm
Y Axis Travel Distance	3700 mm
Z Axis Travel Distance	700 mm
Metric	IMPERIAL
Capacity	Table to spindle nose
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse
Table	Table LengthTable WidthMaximum Workpiece weight
Dimensions	LengthHeightWidthWeight
Favorites	DCM 4280F

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

6,250 mm X-travel combined with 3,700 mm Y and 2,700 mm table width covers both long and wide workpieces
39,000 kg table capacity handles nearly any mold block or casting in the heavy industry sector
86,000 kg machine mass delivers outstanding cutting stability and vibration damping
W-axis crossrail and auto-change heads provide comprehensive machining flexibility
Competes with European gantry mills at a more accessible price point
Same proven DCM platform as smaller models, scaled proportionally

Limitations

15.7-meter length and 8.2-meter width require a large dedicated bay with engineered foundation
86,000 kg installation weight demands specialized rigging and heavy-lift crane capacity
Capital investment exceeding $1.2 million requires consistent large-part production to justify
700 mm Z-stroke needs W-axis supplementation for the deepest cavity work

Best For

Large automotive mold shops producing the widest and longest body panel molds Wind energy manufacturers machining wide blade root mold sections and nacelle components Press manufacturers machining wide bolsters and crowns that exceed 2.2-meter table widths Shipbuilding facilities machining wide marine structural components and mold sections Shops needing European gantry-mill capability at a Korean-built price point

Frequently Asked Questions

01 What does the DN Solutions DCM 3260 F II cost?

New DCM 3260 F II machines typically run $1,200,000-$1,700,000 depending on spindle configuration, head attachments, and options. Total project cost including foundation and installation can approach $2 million.

02 How does the DCM 3260 F II compare to the DCM 2760 F II?

Both have 6,250 mm X-travel, but the 3260 offers 3,700 mm Y (vs 3,200 mm), 2,700 mm table width (vs 2,200 mm), and 39,000 kg capacity (vs 30,000 kg). The 3260 weighs 86,000 kg versus 71,000 kg. Choose the 3260 for wider parts; the 2760 for narrower ones at a lower price.

03 How does this compare to European gantry mills?

The DCM 3260 F II competes with gantry mills from Waldrich Siegen, Pama, and similar European builders. The Korean-built DCM typically comes at 60-80% of the European price with comparable specifications. European machines may offer more spindle options and customization; the DCM offers better value.

04 Is a 5-axis version available?

Yes, the DCM 3260 U adds a universal head for simultaneous 5-axis machining capability. The U variant enables complex mold surface contouring with continuous multi-axis toolpath control.
