Cincinnati XFORM 175XF8

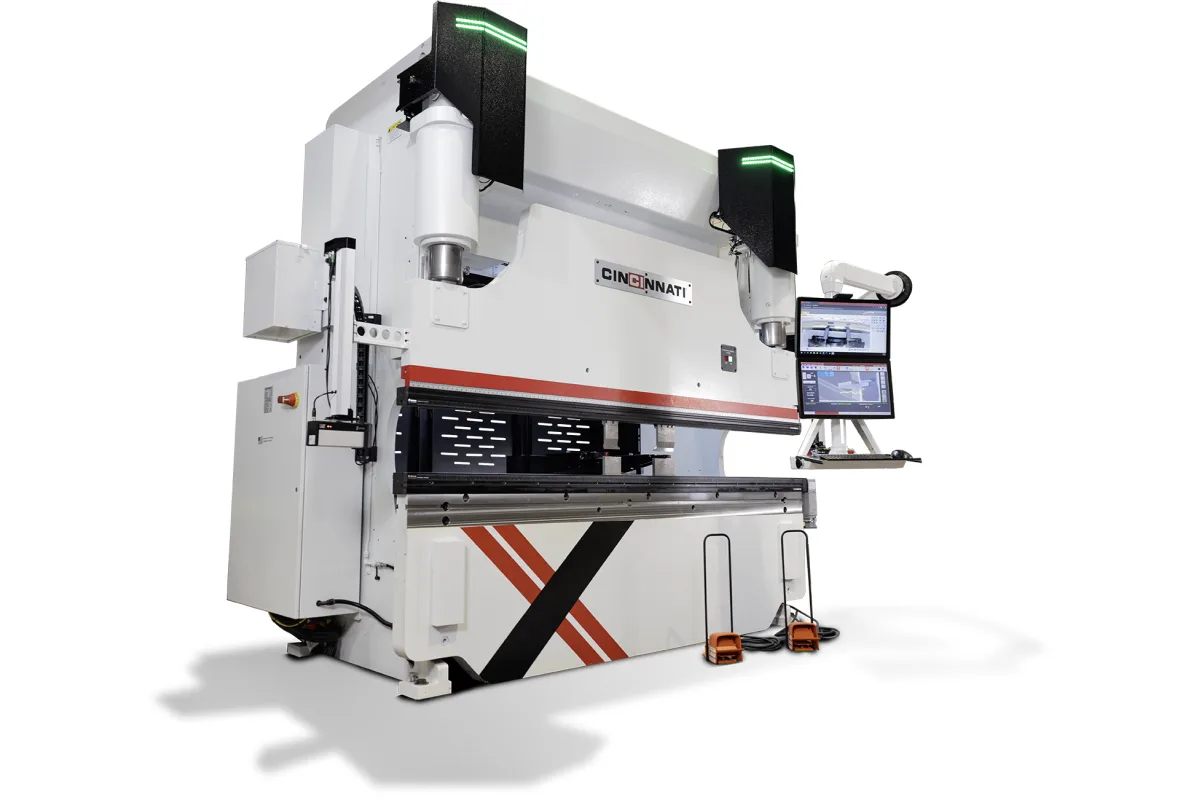

Image: e-ci.com, Cincinnati Incorporated
Key Specifications
overall die surface
closed height
stroke length
open height
throat
approach speed
How much does the Cincinnati XFORM 175XF8 cost?
Price estimate
We do not have a price for the Cincinnati XFORM 175XF8 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The step up to the Cincinnati XFORM 175XF8 brings a bigger opening as well as a bigger frame. Stroke length rises to 16 in (406 mm) and open height to 23 in (584 mm), while the overall die surface is 10 ft (3,048 mm) and the throat 18 in (457 mm). Closed height remains 7 in (178 mm).
The XFORM 135XF8, at the same bed length, has a 14 in (356 mm) stroke. The extra ram travel sounds minor, but on return-flanged parts and deep U-sections it is often the difference between pulling the part out forwards and having to slide it off the end of the tooling.
The price in speed is moderate. Approach is 550 ipm (13,970 mm/min), forming 45 ipm (1,143 mm/min) and return 485 ipm (12,319 mm/min). The hybrid XFORMe 175XFe8 has the same approach speed and a forming speed of 70 ipm (1,778 mm/min), so anyone ordering this size should look at both drive types.
Full Specifications
| Parameter | Value |
|---|---|
| Overall Die Surface | 10 ft (3,048 mm) |
| Closed Height | 7 in (178 mm) |
| Stroke Length | 16 in (406 mm) |
| Open Height | 23 in (584 mm) |
| Throat | 18 in (457 mm) |
| Approach Speed | 550 ipm (13,970 mm/min) |
| Forming Speed | 45 ipm (1,143 mm/min) |
| Return Speed | 485 ipm (12,319 mm/min) |
Specifications sourced from e-ci.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 16 in (406 mm) stroke and 23 in (584 mm) open height on a 10 ft (3,048 mm) bed
- 550 ipm (13,970 mm/min) approach speed
- 18 in (457 mm) throat behind the die line
Limitations
- Forming speed is 45 ipm (1,143 mm/min); the hybrid XFORMe 175XFe8 forms at 70 ipm (1,778 mm/min)
- Approach is slower than the 650 ipm (16,510 mm/min) of the XFORM 135XF8
- Die surface stops at 10 ft (3,048 mm) on this model
Best For
Frequently Asked Questions
01
Open height is 23 in (584 mm) and closed height 7 in (178 mm), giving a 16 in (406 mm) stroke. The XFORM 135XF8 at the same bed length opens to 21 in (533 mm).
02
The table lists 550 ipm (13,970 mm/min) for approach, 45 ipm (1,143 mm/min) for forming and 485 ipm (12,319 mm/min) for return. Cincinnati describes the XFORM as offering faster ram speed with a quieter drive system.
