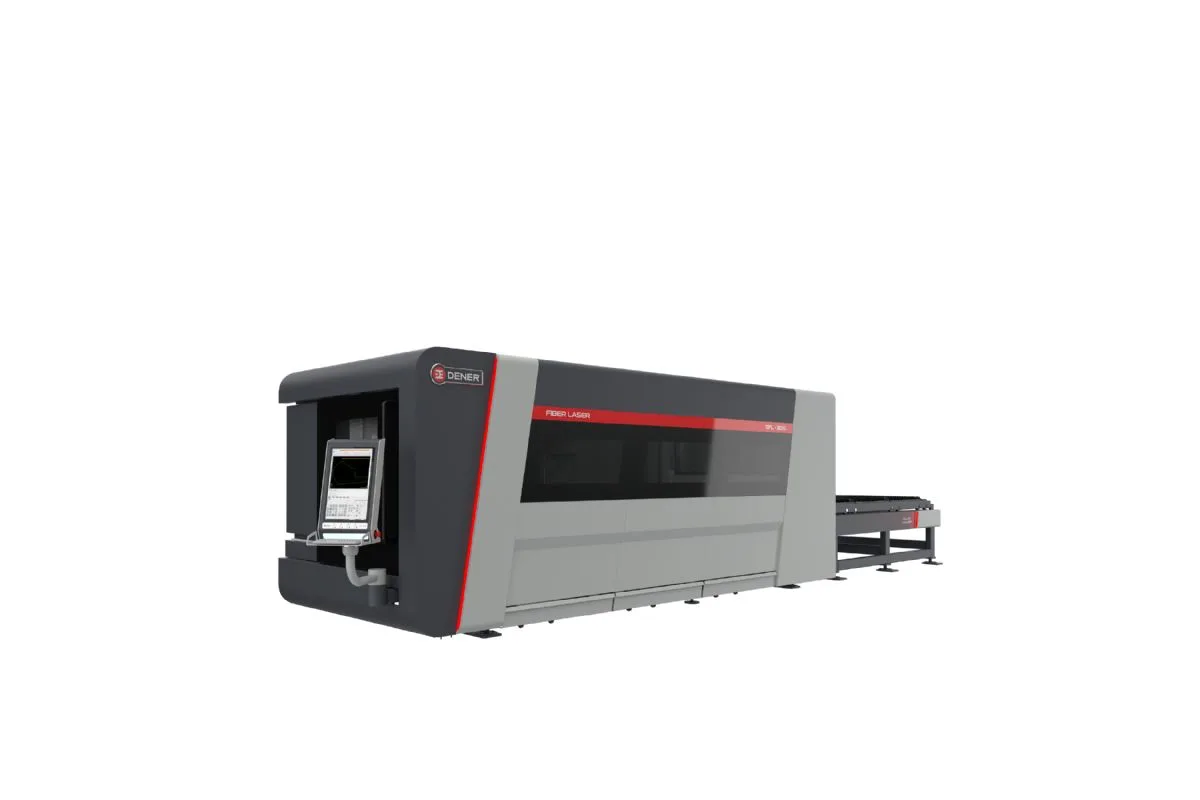

Dener Pro DC 6020
Image: en.dener.com, Dener
Key Specifications
Accuracy
Repeatability
xy acceleration
z acceleration
xy axis speed
z axis travel
How much does the Dener Pro DC 6020 cost?
Price estimate
We do not have a price for the Dener Pro DC 6020 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Dener Pro DC 6020 is the longest Pro DC fiber laser for which Dener publishes a specification table. It belongs to the 6020 table size and is aimed at long sheets and at nests that fill a large pallet.
Long tables shift the economics of a laser. Each pallet carries more work, so the machine runs longer between changes, and the change itself is slower: 30 s on this model. For thick plate, where a single nest can run for hours, that half minute is irrelevant. For thin sheet cut at 120 m/min it adds up, and the smaller tables may suit better.
Dener keeps the dynamics constant across the series. X-Y acceleration is 1.5 G and Z acceleration 1 G, with 350 mm (13.8 in) of Z travel. Repeatability is 0.03 mm, positioning accuracy 0.05 mm.
Power determines the electronics. Machines from 12 to 20 kW get the FsCut8000 controller and the HypCut interface; lower powers get FsCut4000 and CypCut. On a table this size, buyers typically look at the upper range, and the 20 kW configuration uses the Blt 662H head.
The automatic pallet changing system has two moving tables, so loading and unloading continue while the machine cuts.
Full Specifications
| Parameter | Value |
|---|---|
| Xy Acceleration | 1.5 G |
| Z Acceleration | 1 G |
| Xy Axis Speed | 120 m/min |
| Z Axis Travel | 350 mm (13.8 in) |
| Positioning Accuracy | 0.05 mm |
| Repeatability | 0.03 mm |
| Pallet Change Time | 30 s |
| Control 3 8 Kw | FsCut4000 (3-8 kW) |
| Control 12 20 Kw | FsCut8000 (12-20 kW) |
| Interface 3 8 Kw | CypCut (3-8 kW) |
| Interface 12 20 Kw | HypCut (12-20 kW) |
| Laser Head 3 8 Kw | Blt 421S (3-8 kW) |
| Laser Head 12 15 Kw | Blt 643H (12-15 kW) |
| Laser Head 20 Kw | Blt 662H (20 kW) |
| Gearbox | Framo Morat |
| Motor and Drive | Yaskawa |
| Rack and Pinion | Framo Morat |
| Guide Rail | THK |
| Gas Regulator | Hoerbiger |
| Pneumatic Components | SMC |
Specifications sourced from en.dener.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Largest Pro DC table with a published specification
- Two moving tables keep loading going during cutting
- FsCut8000 control and HypCut interface from 12 to 20 kW
- Same 1.5 G and 120 m/min dynamics as the smaller tables
Limitations
- 30 s pallet change time, the longest listed
- Dener names an 8025 table size as well but publishes no table for it
- Sheet capacity in mm and machine footprint are not stated in the table
Best For
Frequently Asked Questions
01
30 s. The table lists 16 s for the Pro DC 3015 and 22 s for the Pro DC 4020, so the change time grows with table length.
02
X-Y speed of 120 m/min, X-Y acceleration of 1.5 G, Z acceleration of 1 G and Z travel of 350 mm. Positioning accuracy is 0.05 mm with 0.03 mm repeatability.
03
The FsCut8000 controller with the HypCut interface, used for 12-20 kW. The laser head listed for 20 kW is the Blt 662H.
04
Dener says the Pro DC series is manufactured in 3015, 4020, 6020 and 8025 table sizes. The specification tables on its page cover the first three only.
