Dener Pro DC 3015
Image: en.dener.com, Dener
Key Specifications
Accuracy
Repeatability
xy acceleration
z acceleration
xy axis speed
z axis travel
How much does the Dener Pro DC 3015 cost?
Price estimate
We do not have a price for the Dener Pro DC 3015 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

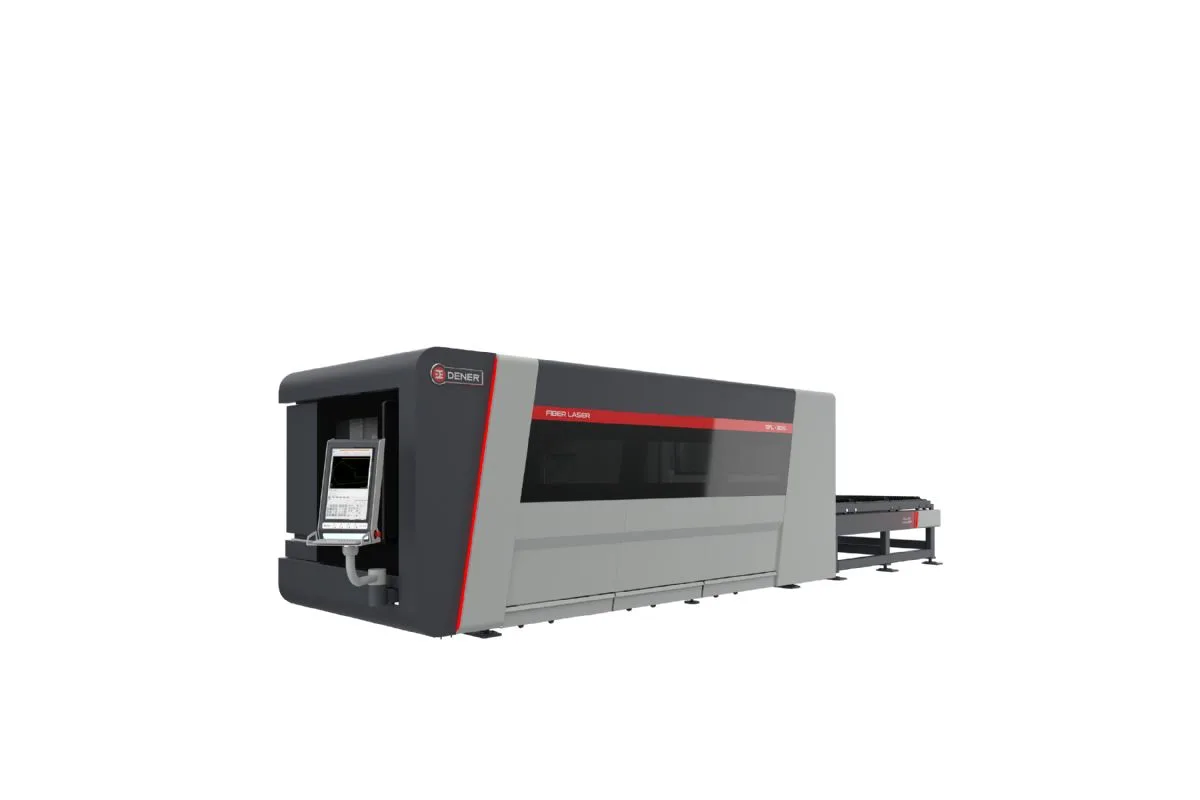

The Dener Pro DC 3015 is the smallest table size of Dener's Pro DC fiber laser cutting machines, a gantry-type flatbed laser with an automatic pallet changer. Dener offers the Pro DC series with laser power from 3 kW to 20 kW and builds it in 3015, 4020, 6020 and 8025 table sizes.
Axis dynamics are the same for every size in the table: 1.5 G of X-Y acceleration, 1 G on Z and an X-Y speed of 120 m/min. Z travel is 350 mm (13.8 in), which is long for a flatbed laser and leaves clearance over formed or warped sheet. Positioning accuracy is 0.05 mm and repeatability 0.03 mm.
What distinguishes this size is the pallet change. At 16 s it is the shortest of the three listed machines, so on thin sheet with short nests the table swap takes the least time out of the cycle.
The control and cutting head depend on the power ordered. From 3 to 8 kW the machine has an FsCut4000 controller with the CypCut interface and a Blt 421S head. From 12 to 20 kW it has FsCut8000 with HypCut, and a Blt 643H or Blt 662H head. Drives are Yaskawa, guide rails THK, rack, pinion and gearbox Framo Morat.
Standard equipment includes a Raycus resonator, CypNest software, a chiller and automatic gas selection. A fume extraction filter is an option, so budget for it.
Full Specifications
| Parameter | Value |
|---|---|
| Xy Acceleration | 1.5 G |
| Z Acceleration | 1 G |
| Xy Axis Speed | 120 m/min |
| Z Axis Travel | 350 mm (13.8 in) |
| Positioning Accuracy | 0.05 mm |
| Repeatability | 0.03 mm |
| Pallet Change Time | 16 s |
| Control 3 8 Kw | FsCut4000 (3-8 kW) |
| Control 12 20 Kw | FsCut8000 (12-20 kW) |
| Interface 3 8 Kw | CypCut (3-8 kW) |
| Interface 12 20 Kw | HypCut (12-20 kW) |
| Laser Head 3 8 Kw | Blt 421S (3-8 kW) |
| Laser Head 12 15 Kw | Blt 643H (12-15 kW) |
| Laser Head 20 Kw | Blt 662H (20 kW) |
| Gearbox | Framo Morat |
| Motor and Drive | Yaskawa |
| Rack and Pinion | Framo Morat |
| Guide Rail | THK |
| Gas Regulator | Hoerbiger |
| Pneumatic Components | SMC |
Specifications sourced from en.dener.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 16 s pallet change, the quickest in the Pro DC table
- 1.5 G X-Y acceleration and 120 m/min X-Y speed
- 350 mm (13.8 in) of Z travel
- Laser power options from 3 kW to 20 kW on one frame
- Exchange table, chiller and CypNest software are standard
Limitations
- Fume extraction filter is optional equipment
- The specification table gives no sheet dimensions, weight or power consumption
- Positioning accuracy of 0.05 mm is a machine figure, not a cut tolerance
Best For
Frequently Asked Questions
01
Dener states power options from 3 kW to 20 kW for the Pro DC series. The table lists different controllers and cutting heads for the 3-8 kW and 12-20 kW ranges.
02
X-Y speed is 120 m/min with 1.5 G acceleration, and the Z axis accelerates at 1 G over 350 mm of travel. Positioning accuracy is 0.05 mm and repeatability 0.03 mm.
03
16 s according to the specification table. The Pro DC 4020 needs 22 s and the Pro DC 6020 needs 30 s, since their tables are longer.
04
An FsCut4000 controller with the CypCut interface from 3 to 8 kW, and an FsCut8000 with the HypCut interface from 12 to 20 kW. A 21.5-inch touchscreen is standard.
