Dener FTL 12064
Key Specifications
laser power
chuck size
max cutting length
max cutting weight
acceleration
chuck type
How much does the Dener FTL 12064 cost?
Price estimate
We do not have a price for the Dener FTL 12064 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Dener FTL 12064 is the largest tube fiber laser Dener lists. Its chuck is 640 mm (25.2 in), nearly twice the next size down, and a single bar may weigh 2,600 kg (5,732 lb) at a cutting length of up to 12,300 mm.
This is heavy structural territory: large-diameter pipe, big box sections, and the hollow sections used in cranes, bridges and offshore frames. Dener says the model is designed specifically for metal tube processing and names bevel cutting as an option for cuts at different angles, which is how weld preparations are produced on such parts.
Every axis is scaled up. X travel is 1,300 mm, Z travel 540 mm and Y travel 13,400 mm. The machine occupies 30,500 × 3,900 × 3,400 mm.
Speed is not the aim. The chucks rotate at 25 r/min and the tube feeds at 50 m/min, with 0.6 G of acceleration. Turning 2,600 kg quickly would need drives out of proportion to the gain, since cutting time in thick wall dominates the cycle.
Laser power is 6-20 kW, and the 20 kW source uses the BOCI BLT560H head. As on the other FTL machines, three moving chucks give a minimum tail of ≥0 mm and the unloading length is 12 m.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 6-20 kW |
| Chuck Size | 640 mm (25.2 in) |
| Max Cutting Length | 12,300 mm (484.3 in) |
| Max Cutting Weight | 2,600 kg (5,732 lb) |
| Acceleration | 0.6 G |
| Chuck Type | 3 Moving Chucks |
| Min Tail Length | ≥0 mm |
| Support Type | Servo Follow-Up Support System |
| Resonator | Maxphotonics |
| Laser Head Up to 3 Kw | BOCI BLT310T (≤3 kW) |
| Laser Head 6 Kw | BOCI BLT421TS (6 kW) |
| Laser Head 12 Kw | BOCI BLT442T (12 kW) |
| Laser Head 20 Kw | BOCI BLT560H (20 kW) |
| CNC Control | FSCUT5000A |
| Interface Software | TubePro |
| Guide Rail Pinion and Rack | HIWIN, YYC |
| Motor and Drive | Inovance |
| Gearbox | Motoreducer |
| Nesting Software | TubesT Professional |
| X Axis Travel | 1,300 mm (51.2 in) |
| Y Axis Travel | 13,400 mm (527.6 in) |
| Z Axis Travel | 540 mm (21.3 in) |
| Xy Positioning Accuracy | ±0.05 mm |
| Xy Repeatability | ±0.05 mm |
| Tube Feeding Speed | 50 m/min |
| Machine Dimensions | 30,500 × 3,900 × 3,400 mm |
| Unloading Length | 12 m |
| Chuck Rotation Speed | 25 r/min |
| Loading Unloading Length | 12 + 12 m |
Specifications sourced from en.dener.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 640 mm chuck, the largest in the range
- 2,600 kg (5,732 lb) maximum cutting weight
- 1,300 mm of X travel and 540 mm of Z travel
- 6-20 kW with the BOCI BLT560H head at 20 kW
- 12 m unloading length and zero minimum tail
Limitations
- Chuck rotation of 25 r/min and feed of 50 m/min
- 30,500 × 3,900 × 3,400 mm of floor and height
- Bevel cutting, needed for weld preparation, is optional
- No laser source below 6 kW is listed
Best For
Frequently Asked Questions
01
The chuck size is 640 mm (25.2 in), the maximum cutting length 12,300 mm and the maximum cutting weight 2,600 kg (5,732 lb).
02
Bevel cutting is listed as optional equipment. Dener states that precise cuts at different angles can be performed with the optional bevel cutting feature.
03
Tube feeding speed is 50 m/min and chuck rotation speed 25 r/min, with 0.6 G of acceleration. The FTL 12035 runs at 81 m/min and 54 r/min.
04
30,500 × 3,900 × 3,400 mm. Axis travels are 1,300 mm in X, 13,400 mm in Y and 540 mm in Z, and loading/unloading length is 12 + 12 m.
More from Dener
Other CNC Laser Cutting Machines

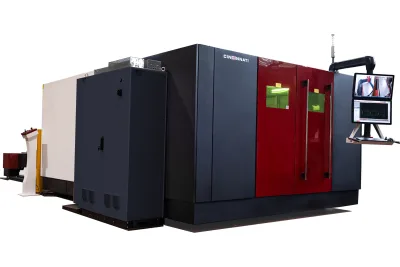

Cincinnati CI Fiber 4020
