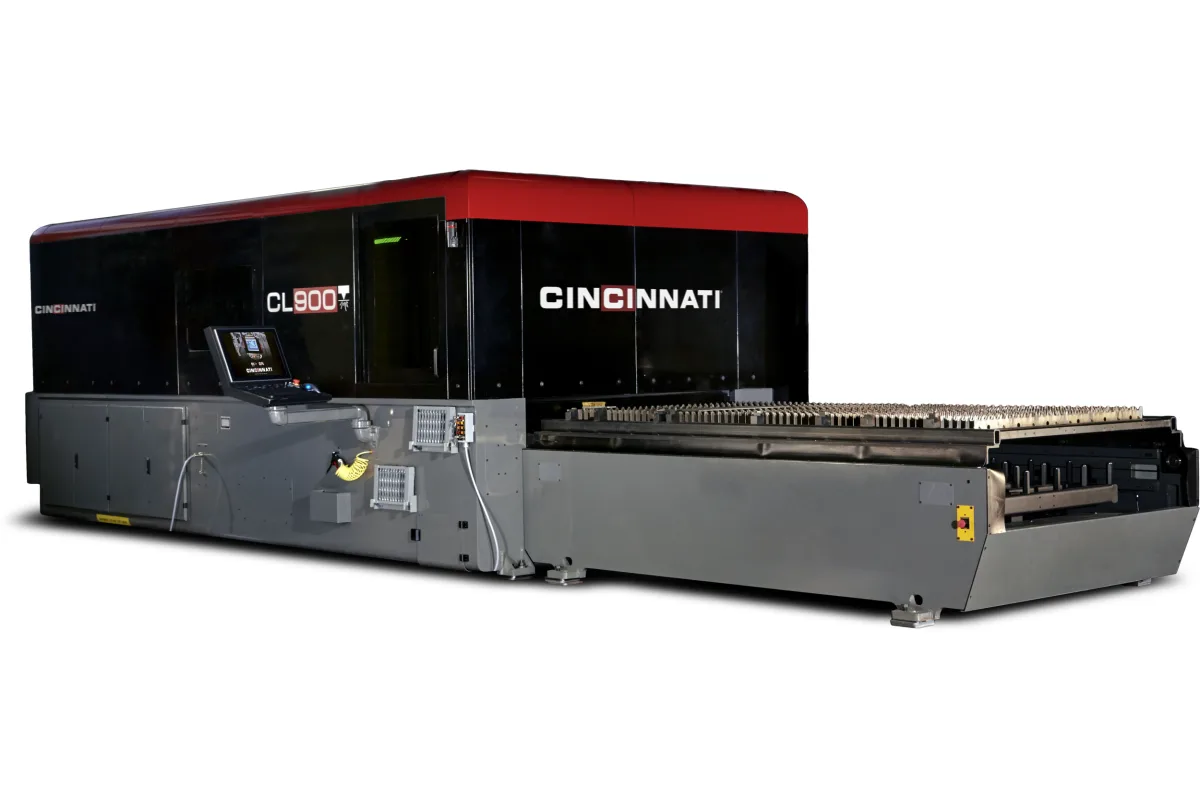

Cincinnati CL-900 2m x 4m
Image: e-ci.com, Cincinnati Incorporated
Key Specifications
Rapid Traverse
Accuracy
pallet dimensions
acceleration
control
enclosure width a
How much does the Cincinnati CL-900 2m x 4m cost?
Price estimate
We do not have a price for the Cincinnati CL-900 2m x 4m that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Built on 2 m x 4 m pallets, this version of the Cincinnati CL-900 is the larger of the two the maker lists. It is the same linear-motor fiber laser as the 5' x 10' machine, with a heavier and longer frame: 37,400 lb (16,964 kg) and 468.2 in (11,892 mm) overall.
Size by size, the differences are easy to read from Cincinnati's table. Enclosure width goes to 143.2 in (3,637 mm) and overall width to 208.2 in (5,288 mm). The enclosure is 323.5 in (8,217 mm) long. Height is unchanged at 96 in (2,438 mm), and so is the pallet height of 39.6 in (1,006 mm), which means loading equipment set up for one size suits the other.
The performance statements on the page are made for the CL-900 as a whole. Rapid traverse speeds are 12,020 ipm (305,308 mm/min), acceleration is in excess of 2.3 G, and positioning accuracy is ±0.001 in (±0.0254 mm) over the entire cutting range. Cincinnati does not give separate figures for the larger table, so a buyer who needs that acceleration on full-size sheet should ask whether it applies unchanged.
Everything else follows the series. Two pallets shuttle so that the time between sheets is the pallet shift alone. The beam arrives by fiber, with no mirrors. Scrap is cleared without a moving conveyor, Dynamic Power Control watches laser power and feedrate, and the control is a 22 in Windows-based touchscreen. Laser power is not part of the specification table.
Full Specifications
| Parameter | Value |
|---|---|
| Pallet Dimensions | 2 m x 4 m |
| Rapid Traverse Rate | 12,020 ipm (305,308 mm/min) |
| Acceleration | in excess of 2.3 G |
| Positioning Accuracy | ±0.001 in (±0.0254 mm) |
| CNC Control | 22 in touchscreen control, Windows-based operating system |
| Enclosure Width A | 143.2 in (3,637 mm) |
| Overall Width B | 208.2 in (5,288 mm) |
| Height C | 96 in (2,438 mm) |
| Enclosure Length D | 323.5 in (8,217 mm) |
| Overall Length E | 468.2 in (11,892 mm) |
| Pallet Height F | 39.6 in (1,006 mm) |
| Machine Weight | 37,400 lb (16,964 kg) |
Specifications sourced from e-ci.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 2 m x 4 m pallets for sheet beyond the 60 x 120 in (1,524 x 3,048 mm) of the smaller CL-900
- Same 96 in (2,438 mm) height and 39.6 in (1,006 mm) pallet height as the 5' x 10' machine
- Linear motor drive rated for rapid traverse speeds of 12,020 ipm (305,308 mm/min)
- Positioning accuracy of ±0.001 in (±0.0254 mm) over the entire cutting range
- Dual pallet configuration and a scrap system with no moving conveyor
Limitations
- Weighs 37,400 lb (16,964 kg) and measures 468.2 in (11,892 mm) overall
- Overall width of 208.2 in (5,288 mm)
- Speed and acceleration are stated for the series, not separately for this table size
- No laser power or pallet load appears in the specification table
Best For
Frequently Asked Questions
01
Pallet size, footprint and weight. This machine has 2 m x 4 m pallets, weighs 37,400 lb (16,964 kg) and is 468.2 in (11,892 mm) long overall with a 143.2 in (3,637 mm) wide enclosure. Height, at 96 in (2,438 mm), and pallet height, at 39.6 in (1,006 mm), are the same on both.
02
Overall length is 468.2 in (11,892 mm) and overall width 208.2 in (5,288 mm). Within that, the enclosure is 323.5 in (8,217 mm) long and 143.2 in (3,637 mm) wide. Cincinnati notes that dimensions are subject to change and that a certified foundation plan is furnished for each installation.
03
A linear motor drive, which Cincinnati describes as a non-mechanical drive system that does not wear. The stated figures are rapid traverse speeds of 12,020 ipm (305,308 mm/min), acceleration rates in excess of 2.3 G and positioning accuracy of ±0.001 in (±0.0254 mm) over the entire cutting range.
04
Because cutting does not wait for handling. Cincinnati states that the time between sheets is only the pallet shift time and does not include unloading and reloading. It also points out that two different materials can be loaded at once, one on each pallet.
