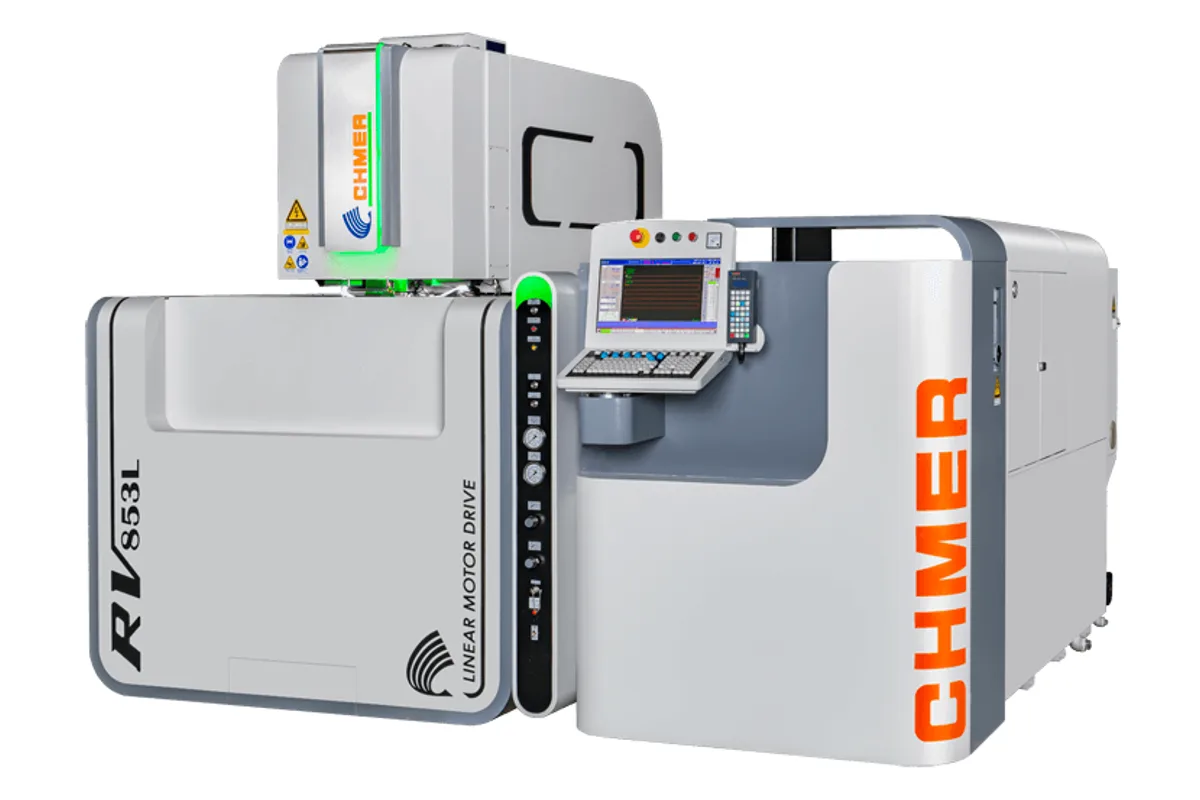

CHMER RV853L
Image: chmer.com, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER RV853L cost?
Price estimate
We do not have a price for the CHMER RV853L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER RV853L is the RV-series wire EDM for which CHMER publishes the fullest equipment list, and that list is the best reason to read this page. Travels are 800 x 500 mm (31.5 x 19.7 in) in X and Y and 300 mm (11.8 in) in Z, with a 3,000 kg (6,614 lb) workpiece rating on a fixed table.
Standard equipment includes the AWT system, a threading assistant device, X/Y axis linear motors with linear scales, an inverter chiller (20,000BTU), an auto sliding door, a touch screen panel with USB, network transmission and a DXF transferring function. On CHMER's servo-driven G and RX series, wire threading is an extra.
The option list is short and specific: a sink door with a transparent window, a jumbo wire feeder, a wire chopper, the I-Connected system, CE conformity, a 2 in 1 transformer and AVR, and a 6th axis rotary table.
This model also has the tallest taper band in the RV table, ±21°/150mm with the wide-angle nozzle; the RV855L is listed at ±21°/80mm. U and V travel is 150 x 150 mm (5.9 x 5.9 in). The maximum workpiece measures 1,200 x 800 x 295 mm (47.2 x 31.5 x 11.6 in). At 7,800 kg (17,196 lb) and 3,840 x 3,250 mm (151.2 x 128.0 in), it is a substantial installation.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 800 mm (31.5 in) |
| Y Axis Travel | 500 mm (19.7 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Uv Axis Travel | 150 x 150 mm (5.9 x 5.9 in) |
| Max Workpiece Size | 1,200 x 800 x 295 mm (47.2 x 31.5 x 11.6 in) (W x D x H) |
| Max Workpiece Weight | 3,000 kg (6,614 lb) |
| Xy Feed Rate | Max. 1,800 mm/min (70.9 ipm) |
| Axis Drive System | X,Y axis by linear Motor; U,V,Z axis by AC Servo |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Tension | 300-2,500 gf |
| Taper Angle | ±21°/150mm (Wide Angle Nozzle DA+DB=15mm) |
| Machine Dimensions | 3,840 x 3,250 x 2,200 mm (151.2 x 128.0 x 86.6 in) (W x D x H) |
| Machine Weight | 7,800 kg (17,196 lb) |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- AWT system, inverter chiller (20,000BTU) and auto sliding door are standard accessories
- ±21°/150mm taper rating, the tallest in the RV series table
- 3,000 kg (6,614 lb) workpiece on a fixed table
- X and Y linear motors with linear scales, feed up to 1,800 mm/min (70.9 ipm)
- DXF transferring function and network transmission included
Limitations
- Z travel is 300 mm (11.8 in); taller parts need the RV855L with 500 mm
- CE conformity is listed as an option, not standard
- 7,800 kg (17,196 lb) and a 3,840 x 3,250 mm (151.2 x 128.0 in) footprint
- Wire chopper and jumbo wire feeder cost extra
Best For
Frequently Asked Questions
01
Yes. CHMER's standard accessory list for the RV853L includes the AWT system and a threading assistant device, together with the i8 energy-efficient power circuit, an inverter chiller (20,000BTU) and an auto sliding door.
02
A sink door with transparent window, a jumbo wire feeder, high speed zinc coating wire, the I-Connected system, a wire chopper, CE conformity (EC circuit and EMC shield), a 6th axis rotary table and a 2 in 1 transformer and AVR.
03
Z travel and taper band. The RV853L has 300 mm (11.8 in) of Z and a ±21°/150mm taper rating. The RV855L has 500 mm (19.7 in) of Z, takes a workpiece 495 mm tall and is listed at ±21°/80mm. X and Y travel and the 3,000 kg (6,614 lb) load are the same.
04
Outside dimensions are 3,840 x 3,250 x 2,200 mm (151.2 x 128.0 x 86.6 in), and the machine weighs 7,800 kg (17,196 lb). The maximum workpiece is 1,200 x 800 x 295 mm (47.2 x 31.5 x 11.6 in).
