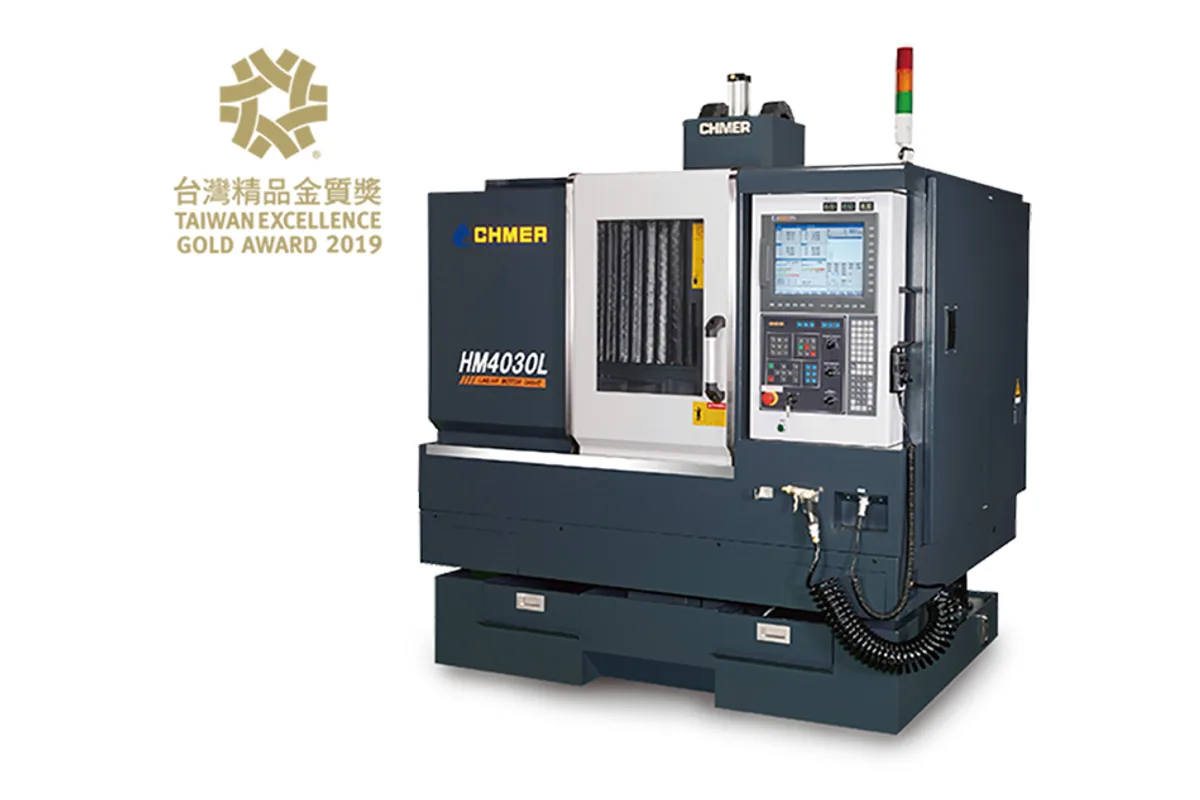

CHMER HM4030L

Specs verified 2026-10-05 · chmer.com Updated 2026-10-05

Image: chmer.com, CHMER

Key Specifications

Max Spindle

8,000-30,000 rpm

Spindle Taper

HSK E32

Table Size

500 x 400 mm (19.7 x 15.7 in)

Spindle Power

3/5 kW (4.0/6.7 hp) (S1/S6)

t slot

16x4x100 mm

max table load

120 kg (265 lb)

How much does the CHMER HM4030L cost?

Price estimate

Uncertain

We do not have a price for the CHMER HM4030L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The CHMER HM4030L belongs to the linear motor branch of CHMER's HM high speed milling machines. It has 400 x 300 x 200 mm (15.7 x 11.8 x 7.9 in) of travel, an HSK E32 spindle listed at 8,000-30,000 rpm and a 3/5 kW (S1/S6) spindle motor.

CHMER publishes a short table for this model: ten rows, with no rapid traverse, no power consumption and no outside dimensions. What it does give is enough to place the machine. The table is 500 x 400 mm (19.7 x 15.7 in), work feed is 10 m/min (394 ipm), and net weight is 2,750 kg (6,063 lb).

The table load deserves attention. It is 120 kg (265 lb), against 200 kg (441 lb) on the ballscrew HM43(G)T with the same travels. A lighter moving mass is what lets direct-drive axes follow small, fast contour moves, so the limit is consistent with a machine meant for electrodes and small inserts. A steel mould base with its vice will not fit inside it.

Spindle nose to table distance is 150-350 mm (5.9-13.8 in), more at the top end than the 150-300 mm of the HM43(G)T. Buyers should ask CHMER for the items the page omits: rapid traverse, acceleration, control, tool changer and footprint. No accessory list or feature text is published for this model either.

Full Specifications

Parameter	Value
Max Spindle Speed	8,000-30,000 rpm
Spindle Taper	HSK E32
Spindle Motor Power	3/5 kW (4.0/6.7 hp) (S1/S6)
Table Size	500 x 400 mm (19.7 x 15.7 in)
T Slot	16x4x100 mm
Max Table Load	120 kg (265 lb)
X Axis Travel	400 mm (15.7 in)
Y Axis Travel	300 mm (11.8 in)
Z Axis Travel	200 mm (7.9 in)
Distance Spindle Nose to Table	150-350 mm (5.9-13.8 in)
Cutting Feed Rate	10 m/min (394 ipm)
Machine Weight	2,750 kg (6,063 lb)

Specifications sourced from chmer.com — verified 2026-10-05

Strengths & Limitations

Strengths

Listed in CHMER's linear motor HM series
HSK E32 spindle with an 8,000-30,000 rpm speed range
150-350 mm (5.9-13.8 in) between table surface and spindle nose
Work feed of 10 m/min (394 ipm)

Limitations

Table load is only 120 kg (265 lb)
Spindle motor of 3/5 kW (S1/S6) suits small cutters only
No rapid traverse, dimensions or accessory list published
Z travel of 200 mm (7.9 in)

Best For

Graphite electrodes with fine detail Small, light mould inserts and precision parts Contour finishing with small-diameter tools at high rpm Workpieces under 120 kg (265 lb) including fixtures

Frequently Asked Questions

01 What is the table load of the HM4030L?

The maximum load of the table is 120 kg (265 lb). The working table measures 500 x 400 mm (19.7 x 15.7 in) and has T-slots listed as 16x4x100 mm.

02 What are the travels and spindle of the HM4030L?

Travel is 400 x 300 x 200 mm (15.7 x 11.8 x 7.9 in). The spindle has an HSK E32 taper, a speed range of 8,000-30,000 rpm and a 3/5 kW (S1/S6) motor.

03 How is the HM4030L different from the HM43(G)T?

Travels, table size and spindle figures match. The HM4030L is in CHMER's linear motor series, carries 120 kg (265 lb) and weighs 2,750 kg (6,063 lb). The HM43(G)T has AC servo motor axes, carries 200 kg (441 lb) and weighs 2,680 kg (5,908 lb).

04 What information is missing from CHMER's HM4030L page?

The table has no rapid traverse, no axis drive row, no power consumption and no outside dimensions, and the page carries no accessory or control description. Net weight, 2,750 kg (6,063 lb), and work feed, 10 m/min (394 ipm), are given.
