CHMER HM43(G)T

Q: How much does the CHMER HM43(G)T cost?

The price estimate for the CHMER HM43(G)T is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chmer-hm43gt#price; the request is passed to CHMER or an authorised dealer.

Specs verified 2026-10-05 · chmer.com Updated 2026-10-05

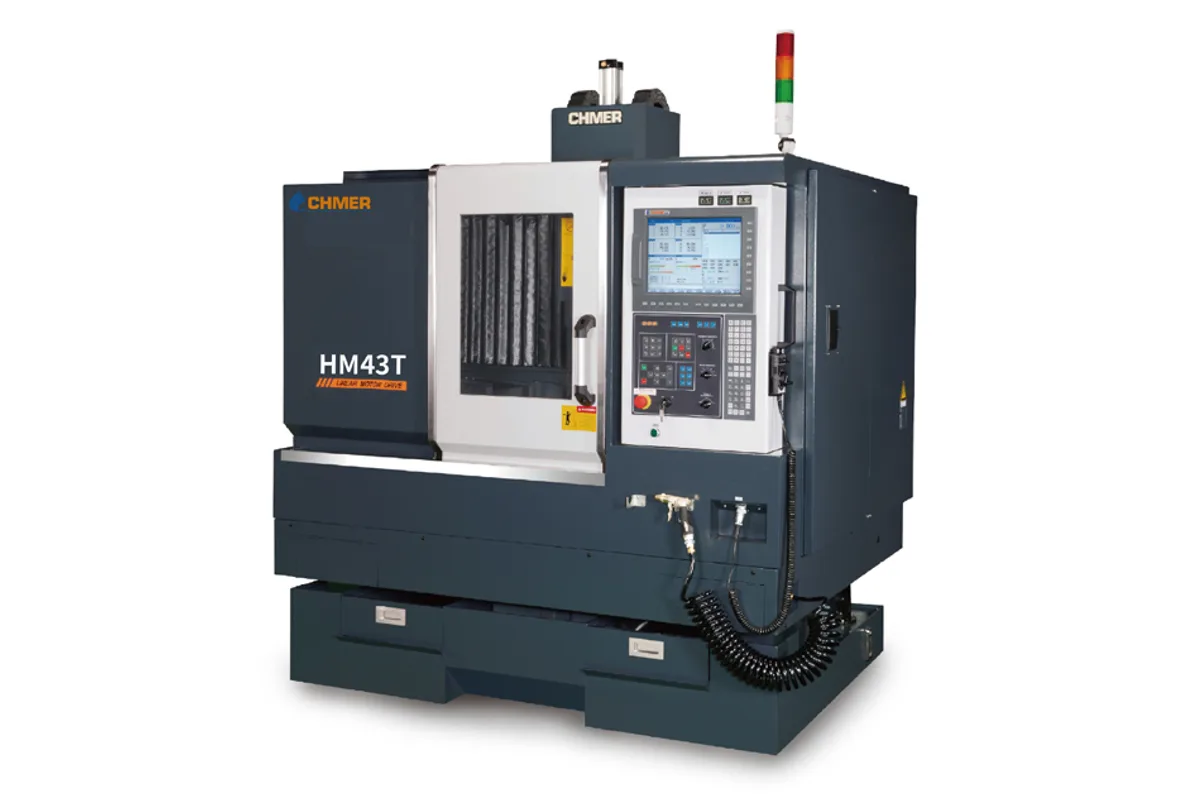

CHMER HM43(G)T high speed milling machine

Image: chmer.com, CHMER

Key Specifications

Max Spindle

8,000-30,000 rpm

Spindle Taper

HSK E32

Table Size

500 x 400 mm (19.7 x 15.7 in)

Spindle Power

3/5 kW (4.0/6.7 hp) (S1/S6)

t slot

16x4x100 mm

max table load

200 kg (441 lb)

How much does the CHMER HM43(G)T cost?

Price estimate

Uncertain

We do not have a price for the CHMER HM43(G)T that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The CHMER HM43(G)T is a small high speed milling machine with an HSK E32 spindle listed at 8,000-30,000 rpm and travels of 400 x 300 x 200 mm (15.7 x 11.8 x 7.9 in). It comes from an EDM builder, and its cut samples show why: graphite electrodes, small mould inserts and thin-walled features, the work that feeds a die-sinking department.

The spindle motor is rated 3/5 kW (S1/S6). That is a small motor, and with an E32 interface it defines the machine as a finishing and electrode mill for small cutters, not a roughing machine. The table is 500 x 400 mm (19.7 x 15.7 in) and carries 200 kg (441 lb). Spindle nose to table distance runs from 150 to 300 mm.

Axes are ballscrew driven by AC servo motors, with a work feed of 10 m/min (394 ipm) and rapid traverse of 15 m/min (591 ipm). CHMER says each machine's X and Y axes are laser measured and ball bar tested, with the results recorded. The CNC is CHMER's own controller, built for high speed milling, with a 15" full color TFT LCD screen.

Check the accessory lists before comparing quotations. Automatic tool length measurement, coolant equipment and a manual pulse generator are standard, but the ATC itself is on the option list, as are a 4th axis rotary table and 3-axis linear scales. Net weight is 2,680 kg (5,908 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	8,000-30,000 rpm
Spindle Taper	HSK E32
Spindle Motor Power	3/5 kW (4.0/6.7 hp) (S1/S6)
Table Size	500 x 400 mm (19.7 x 15.7 in)
T Slot	16x4x100 mm
Max Table Load	200 kg (441 lb)
X Axis Travel	400 mm (15.7 in)
Y Axis Travel	300 mm (11.8 in)
Z Axis Travel	200 mm (7.9 in)
Distance Spindle Nose to Table	150-300 mm (5.9-11.8 in)
Cutting Feed Rate	10 m/min (394 ipm)
Rapid Traverse Xyz	15 m/min (591 ipm)
Axis Drive System	AC servo motor
Machine Weight	2,680 kg (5,908 lb)

Specifications sourced from chmer.com — verified 2026-10-05

Strengths & Limitations

Strengths

Spindle speed range of 8,000-30,000 rpm on an HSK E32 taper
Laser calibration and ball bar testing of X and Y on every machine, per CHMER
Automatic tool length measurement and spindle air blast are standard accessories
CHMER's own CNC controller for high speed milling with a 15" full color TFT LCD screen
Rapid traverse of 15 m/min (591 ipm) and work feed of 10 m/min (394 ipm)

Limitations

Spindle motor is 3/5 kW (S1/S6), so heavy roughing is out of scope
ATC is listed as an option, not as standard equipment
Table load is limited to 200 kg (441 lb)
Z travel is 200 mm (7.9 in)
Linear scales are optional

Best For

Graphite and copper electrodes for sinker EDM Small mould inserts finished with small-diameter cutters Parts within 400 x 300 x 200 mm (15.7 x 11.8 x 7.9 in) Toolrooms that already run CHMER EDM machines

Frequently Asked Questions

01 What spindle does the HM43(G)T have?

An HSK E32 spindle with a listed speed range of 8,000-30,000 rpm. The spindle motor row reads 3/5 kW (S1/S6). Spindle air blast and spindle central lubrication are on the standard accessory list, both marked for ATC.

02 Does the HM43(G)T come with a tool changer?

CHMER lists ATC under options for this model, together with tool shanks, collets, a pneumatic freezing dryer, a 4th axis rotary table, AVR, an Ethernet card and linear or optical scales. Automatic tool length measurement is standard.

03 What are the travels and table size of the HM43(G)T?

Travel is 400 x 300 x 200 mm (15.7 x 11.8 x 7.9 in) in X, Y and Z. The working table is 500 x 400 mm (19.7 x 15.7 in) with a maximum load of 200 kg (441 lb), and the distance from table surface to spindle nose is 150-300 mm.

04 How does the HM43(G)T differ from the HM4030L?

Both have 400 x 300 x 200 mm travels, an HSK E32 spindle at 8,000-30,000 rpm and a 500 x 400 mm table. The HM43(G)T has AC servo motor axes and a 200 kg (441 lb) table load. The HM4030L is listed in CHMER's linear motor HM series with a 120 kg (265 lb) table load.
