Yamazaki Mazak Vertical Machining Centers (VMC)

Mazak VCN-700

Est. $175,000 - $300,000 Possible older model Updated 2026-10-02

This model was not found in Yamazaki Mazak's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

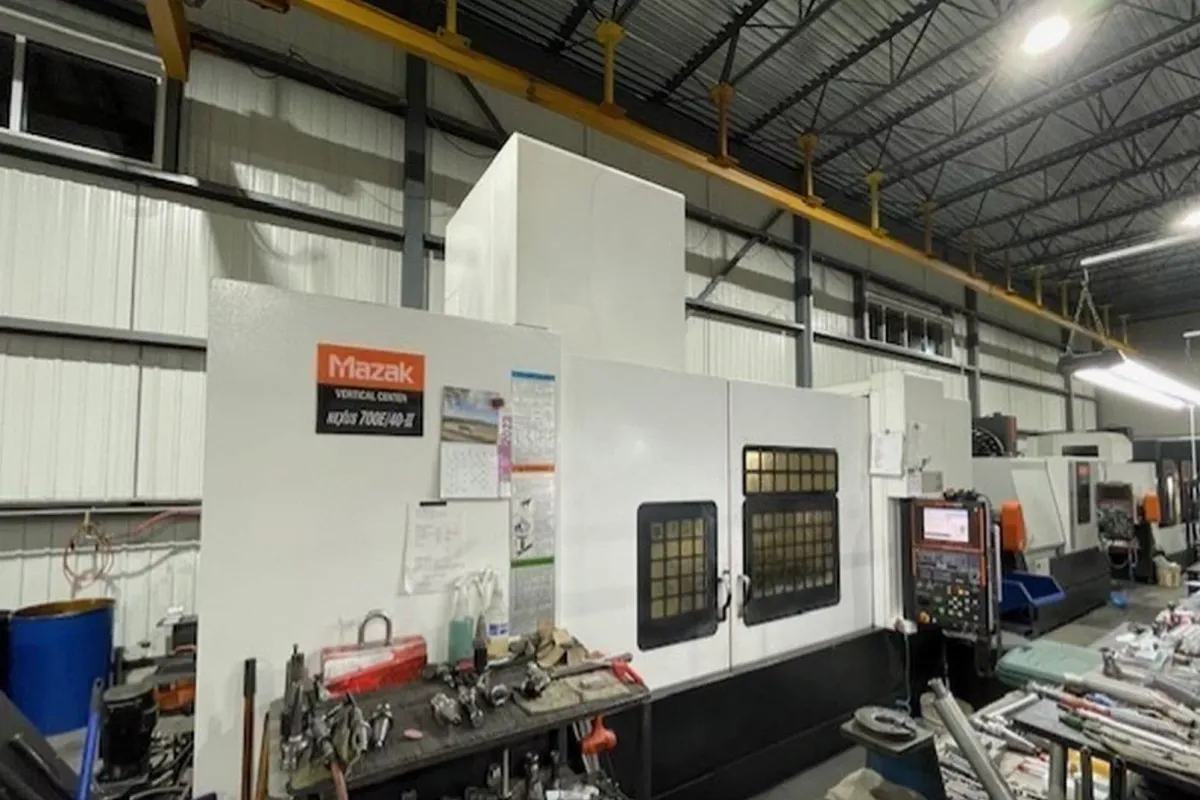

Mazak VCN-700 Vertical Machining Centers (VMC)

Key Specifications

X Travel

1,537 mm (60.5 in)

Y Travel

700 mm (27.5 in)

Z Travel

650 mm (25.6 in)

Max Spindle

12,000 RPM (standard) / 18,000 RPM (high-speed option)

Spindle Taper

CAT 40 (No. 40)

Tool Capacity

30 (standard), up to 48

How much does the Mazak VCN-700 cost?

Estimated price range

Est.$175,000 - $300,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

The Mazak VCN-700 is a VCN series vertical machining center listed with a 1,740 x 700 mm (68.5 x 27.5 in) table rated for 2,000 kg (4,409 lb), and travels of 1,537 mm (60.5 in) in X, 700 mm (27.5 in) in Y and 650 mm (25.6 in) in Z. All of these are listed figures.

Height deserves attention first. The spindle nose sits between 200 mm (7.9 in) and 850 mm (33.5 in) above the table, so the 650 mm (25.6 in) Z stroke starts 200 mm (7.9 in) up. Short tools on low parts may need a riser or a tall vise to reach, while tall fixtures and tombstone-style setups have room up to 850 mm (33.5 in). Mazak's series material also refers to high column specifications, which is the question to raise if a part is taller still.

The spindle is listed as CAT 40 at 12,000 RPM and 30 kW (40 hp), with an 18,000 RPM high-speed option. No duty rating or torque accompanies the power figure. Tool capacity is 30 as standard and up to 48, at 1.3 seconds tool-to-tool, and rapids are 42 m/min (1,654 ipm) in X, Y and Z. The control is listed as Mazak SmoothG CNC with Quick Mazatrol.

Mazak describes the VCN series around a rigid structure for heavy-duty machining, with bed and column designed by CAD FEA; it states a 40% improvement in column distortion from heat displacement against the conventional model. Among other Mazak verticals, the FJV-35/60 has a table of the same length, 68.5 in (1,740 mm) × 29.53 in (750 mm), but carries 5,512 lb (2,500 kg) and uses a CAT No.50 spindle at 10,000 rpm.

Full Specifications

Parameter	Value
X-Axis Travel	1,537 mm (60.5 in)
Y-Axis Travel	700 mm (27.5 in)
Z-Axis Travel	650 mm (25.6 in)
Max Spindle Speed	12,000 RPM (standard) / 18,000 RPM (high-speed option)
Spindle Taper	CAT 40 (No. 40)
Spindle Motor Power	30 kW (40 hp)
Tool Capacity	30 (standard), up to 48
Tool Change Time	1.3 seconds (tool-to-tool)
Table Size	1,740 x 700 mm (68.5 x 27.5 in)
Table Load Capacity	2,000 kg (4,409 lb)
Rapid Traverse Xyz	42 m/min (1,654 ipm)
Spindle Nose to Table (min)	200 mm (7.9 in)
Spindle Nose to Table (max)	850 mm (33.5 in)
CNC Control	Mazak SmoothG CNC with Quick Mazatrol

Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.

Strengths & Limitations

Strengths

Table of 1,740 x 700 mm (68.5 x 27.5 in) with a listed 2,000 kg (4,409 lb) load
Up to 850 mm (33.5 in) between spindle nose and table for tall parts and fixtures
Y travel of 700 mm (27.5 in) equals the table depth
Listed 30 kW (40 hp) spindle at 12,000 RPM, with an 18,000 RPM high-speed option
Rapids of 42 m/min (1,654 ipm) are the same in X, Y and Z

Limitations

Minimum spindle nose to table distance is 200 mm (7.9 in), so short tools on low parts need the work raised
X travel of 1,537 mm (60.5 in) is less than the 1,740 mm table length
The 18,000 RPM spindle and the 48-tool magazine are options; standard is 12,000 RPM and 30 tools
The 30 kW (40 hp) figure has no duty rating and no torque is listed

Best For

Large plates, frames and weldments up to 1,537 x 700 mm in plan Tall parts and fixtures needing up to 850 mm (33.5 in) under the spindle Heavy setups up to the listed 2,000 kg (4,409 lb) Multi-part fixturing along a 1,740 mm table

Frequently Asked Questions

01 How tall a part fits under the VCN-700 spindle?

The listed distance from spindle nose to table runs from 200 mm (7.9 in) to 850 mm (33.5 in), which corresponds to the 650 mm (25.6 in) Z travel. The part, its fixture and the tool length together must fit under 850 mm (33.5 in). Mazak's series description mentions high column specifications, so ask about that if you need more height.

02 What are the VCN-700 travels and table load?

Listed travels are 1,537 mm (60.5 in) in X, 700 mm (27.5 in) in Y and 650 mm (25.6 in) in Z. The table is 1,740 x 700 mm (68.5 x 27.5 in) and is listed for 2,000 kg (4,409 lb).

03 Which spindle options are listed for the VCN-700?

The standard spindle is listed at 12,000 RPM with a CAT 40 taper and 30 kW (40 hp). An 18,000 RPM high-speed spindle is the listed option. The power figure carries no duty rating, and no torque value is listed, so request the output charts for both spindles before choosing.

04 How does the VCN-700 compare with the FJV-35/60?

Both have a 1,740 mm long table. The FJV-35/60 table is 68.5 in (1,740 mm) × 29.53 in (750 mm) with a 5,512 lb (2,500 kg) load, a CAT No.50 spindle at 10,000 rpm and travels of 59.06 in (1,500 mm) × 31.5 in (800 mm) × 25.98 in (660 mm). The VCN-700 is listed with a CAT 40 spindle at 12,000 RPM and a 2,000 kg (4,409 lb) table load.
