CHMER HM6050L

Q: How much does the CHMER HM6050L cost?

The price estimate for the CHMER HM6050L is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chmer-hm6050l#price; the request is passed to CHMER or an authorised dealer.

Specs verified 2026-10-05 · chmer.com Updated 2026-10-05

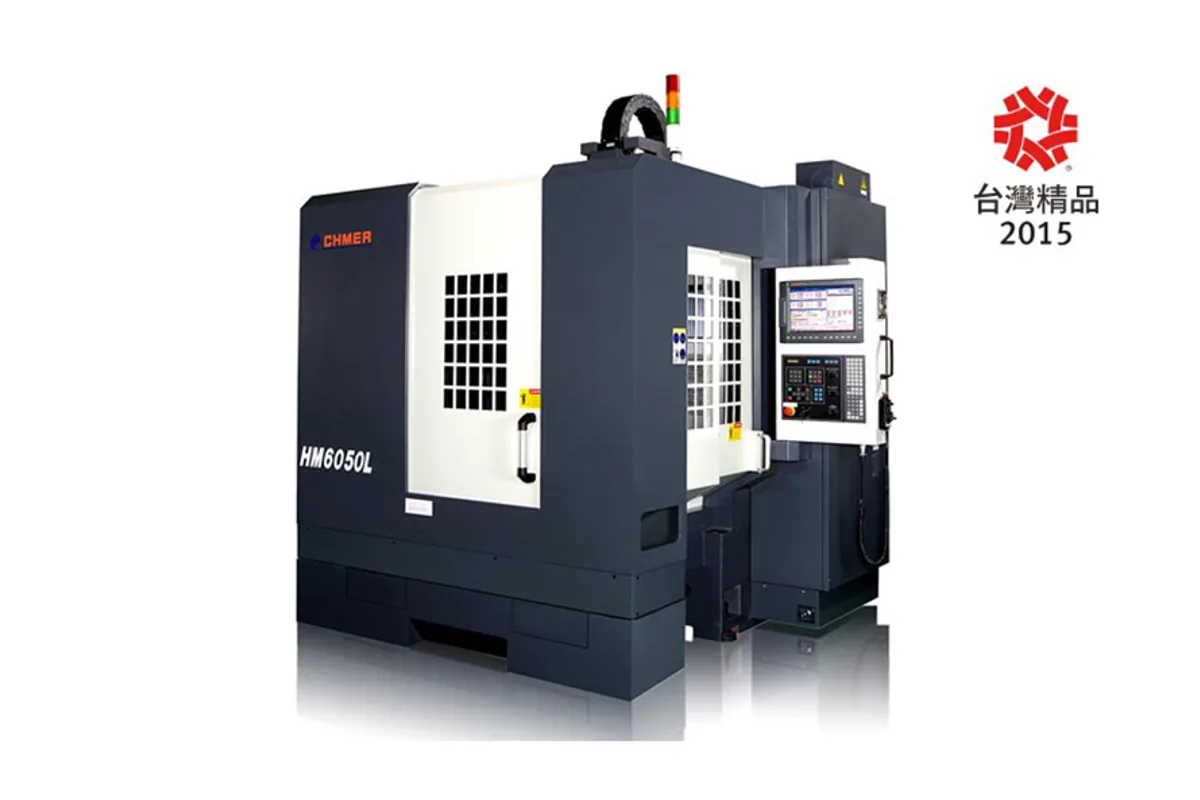

CHMER HM6050L high speed milling machine

Image: chmer.com, CHMER

Key Specifications

Max Spindle

8,000-30,000 rpm

Spindle Taper

HSK E40

Table Size

550 x 650 mm (21.7 x 25.6 in)

Spindle Power

10/11.5 kW (13.4/15.4 hp) (S1/S6)

t slot

14x5x100 mm

max table load

300 kg (661 lb)

How much does the CHMER HM6050L cost?

Price estimate

Uncertain

We do not have a price for the CHMER HM6050L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The CHMER HM6050L is a high speed milling machine with linear motors on all three linear axes: the table lists X, Y, Z axis Linear Motor. Travels are 500 x 620 x 300 mm (19.7 x 24.4 x 11.8 in), and the HSK E40 spindle is listed at 8,000-30,000 rpm with a 10/11.5 kW (S1/S6) motor.

A linear motor on Z is less common than on X and Y, because the axis has to carry the spindle against gravity. Having it means all three axes share the same direct-drive response, which is what matters in 3D surface finishing, where the machine reverses direction constantly and any lag between axes shows on the part.

Unlike the smaller linear model, this one keeps a useful load rating. The 550 x 650 mm (21.7 x 25.6 in) table takes 300 kg (661 lb), the same as the ballscrew HM65(G)T. Spindle nose to table distance is 220-520 mm (8.7-20.5 in), so tall workpieces and fixtures fit, though short tools on low parts need the lower end checked.

Outside dimensions are 2,600 x 2,600 x 2,470 mm (102.4 x 102.4 x 97.2 in) and net weight is 3,900 kg (8,598 lb). Work feed is 10 m/min (394 ipm). CHMER's table gives no rapid traverse figure for this model, and the page lists no accessories, so tool changer, scales and control should be confirmed in the quotation.

Full Specifications

Parameter	Value
Max Spindle Speed	8,000-30,000 rpm
Spindle Taper	HSK E40
Spindle Motor Power	10/11.5 kW (13.4/15.4 hp) (S1/S6)
Table Size	550 x 650 mm (21.7 x 25.6 in)
T Slot	14x5x100 mm
Max Table Load	300 kg (661 lb)
X Axis Travel	500 mm (19.7 in)
Y Axis Travel	620 mm (24.4 in)
Z Axis Travel	300 mm (11.8 in)
Distance Spindle Nose to Table	220-520 mm (8.7-20.5 in)
Cutting Feed Rate	10 m/min (394 ipm)
Axis Drive System	X,Y,Z axis Linear Motor
Machine Dimensions	2,600 x 2,600 x 2,470 mm (102.4 x 102.4 x 97.2 in) (W x D x H)
Machine Weight	3,900 kg (8,598 lb)

Specifications sourced from chmer.com — verified 2026-10-05

Strengths & Limitations

Strengths

Linear motors on X, Y and Z
10/11.5 kW (S1/S6) spindle motor with an HSK E40 taper, 8,000-30,000 rpm
500 x 620 x 300 mm (19.7 x 24.4 x 11.8 in) travels
300 kg (661 lb) table load on a 550 x 650 mm (21.7 x 25.6 in) table
220-520 mm (8.7-20.5 in) from table surface to spindle nose

Limitations

No rapid traverse figure is published
Minimum spindle nose to table distance is 220 mm (8.7 in)
No accessory list or control description on the model page
2,600 x 2,600 mm (102.4 x 102.4 in) footprint for a 500 x 620 mm travel

Best For

3D mould surface finishing Graphite electrodes up to 620 mm (24.4 in) long in Y Workpieces up to 300 kg (661 lb) Hard milling with small and medium cutters at high rpm

Frequently Asked Questions

01 Which axes of the HM6050L are linear motor driven?

All three. The axis row in CHMER's table reads X,Y,Z axis Linear Motor. Work feed is listed at 10 m/min (394 ipm); no rapid traverse figure is given.

02 What is the spindle specification of the HM6050L?

HSK E40 taper, a speed range of 8,000-30,000 rpm and a 10/11.5 kW (S1/S6) spindle motor. The distance from table surface to spindle nose is 220-520 mm (8.7-20.5 in).

03 How does the HM6050L compare with the HM65(G)T?

Spindle figures and the 300 kg (661 lb) table load are the same. The HM6050L has linear motor axes, 500 x 620 x 300 mm travels and weighs 3,900 kg (8,598 lb). The HM65(G)T has AC servo motor axes, 500 x 600 x 300 mm travels, an 18 m/min rapid traverse and weighs 4,300 kg (9,480 lb).

04 How much space does the HM6050L need?

Outside dimensions are 2,600 x 2,600 x 2,470 mm (102.4 x 102.4 x 97.2 in), width by depth by height. Net weight is 3,900 kg (8,598 lb).
