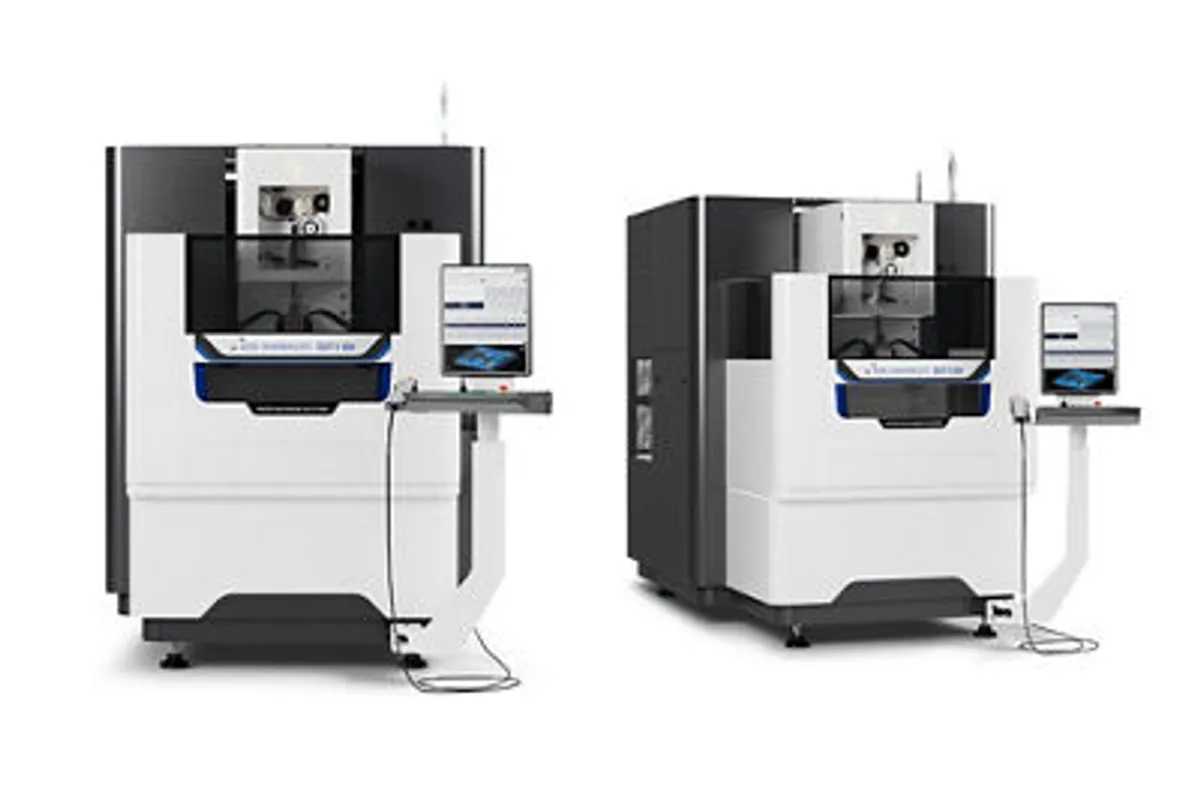

GF AgieCharmilles CUT E 350
Key Specifications
X Travel
Y Travel
Z Travel
Accuracy
u axis
v axis
Overview
The GF AgieCharmilles CUT E 350 is the compact workhorse of the AgieCharmilles economy wire EDM line. Built for shops that need Swiss EDM technology without the Swiss price tag, it packs 350 x 250 x 256 mm (13.8 x 9.8 x 10.1 in) of X/Y/Z travel into a machine that barely takes up 3 square meters of floor space. If you're cutting injection mold inserts, small progressive die sections, or prototype parts, this machine covers the envelope.
The ISPG (Intelligent Spark Generator) is the same digital generator found across the entire CUT E line. It continuously adapts spark parameters during the cut, which means you get consistent surface finishes without constantly babysitting the machine. Standard 3-pass machining delivers Ra 0.20 um (8 uin) surface finish, and with additional skim passes you can push that down to Ra 0.14 um (6 uin). Wire compatibility runs from 0.15 to 0.30 mm (0.006 to 0.012 in), with an optional 0.10 mm fine-wire kit for detail work.
GF built the CUT E 350 around the UNIQUA touchscreen HMI, which is genuinely one of the better wire EDM interfaces on the market. Object-oriented programming lets you define geometry objects and cutting parameters visually rather than writing sequential code. New operators get productive in days rather than weeks, and experienced guys appreciate the faster job setup.
The T-shaped cast iron base frame keeps things rigid and allows front-loading of workpieces up to 500 kg (1,102 lb) through the drop door. Positioning accuracy is specified at 3 um, which handles the vast majority of general wire EDM work. Taper cutting goes to +/-30 degrees at 50 mm height.
At roughly $70,000-$100,000 new depending on options and dealer, the CUT E 350 slots in as one of the most affordable modern wire EDMs from a tier-one manufacturer. Used machines from 2015-2020 trade in the $30,000-$55,000 range. The machine competes directly with entry-level Mitsubishi MV-R and Sodick VL-series machines.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 350 mm (13.8 in) |
| Y-Axis Travel | 250 mm (9.8 in) |
| Z-Axis Travel | 256 mm (10.1 in) |
| U Axis | +/-50 mm (+/-1.97 in) |
| V Axis | +/-50 mm (+/-1.97 in) |
| Max Taper Angle | +/-30 deg at 50 mm height |
| Max Workpiece Size | 780 x 550 x 256 mm (30.7 x 21.7 x 10.1 in) |
| Max Workpiece Weight | 1000 kg2205 lbs |
| Wire Diameter Range | 0.15 - 0.30 mm (0.006 - 0.012 in); 0.10 mm optional |
| Surface Finish | Ra 0.20 um (8 uin Ra) standard; Ra 0.14 um achievable |
| Positioning Accuracy | 3 um |
| Max Cutting Speed | 150 mm2/min (23 in2/hr) |
| CNC Control | UNIQUA HMI (touchscreen) |
| Generator | ISPG (Intelligent Spark Generator) |
| Machine Weight | 3,200 kg (7,055 lb) without dielectric |
| Machine Dimensions | 2,270 x 2,020 x 2,210 mm (89.4 x 79.5 x 87.0 in) |
| Travel X Y Z | 600 x 400 x 350 mm23.62 x 15.75 x 13.78 in |
| Min Surface Roughness Ra | 0.14 μm6 μin |
| Dimensions Of Complete Equipment | 2160 x 3400 x 2320 mm85.04 x 133.86 x 91.34 in |
| Max Taper Angle Height | ± 30°/50 mm± 30°/1.97 in |
| Max Workpiece Dimensions | 1030 x 800 x 350 mm40.55 x 31.5 x 13.78 in |
| Travel U V | ± 50 mm± 1.97 in |
| Wire Diameters | 0.15-0.30 (0.10 optional) mm0.006-0.012 (0.04 optional) in |
| Max Wire Spool Weight | 8 (25 optional) kg |
Specifications sourced from gfms.com — verified 2026-03-28
Strengths & Limitations
Strengths
- UNIQUA touchscreen HMI with object-oriented programming drastically reduces setup time and makes the learning curve manageable for wire EDM newcomers
- ISPG digital generator adapts spark parameters in real time for consistent surface finishes across varying materials and thicknesses
- Compact 3 square meter footprint fits into tight shop layouts where larger wire EDMs will not work
- T-shaped cast iron base frame provides rigid support and allows front-loading heavy workpieces through the drop door
- 500 kg (1,102 lb) workpiece capacity is generous for an entry-level machine, handling most mold inserts and die components
- Wire compatibility from 0.15 to 0.30 mm with optional 0.10 mm fine-wire covers both production cutting and detail work
Limitations
- 350 mm X-travel limits the machine to smaller workpieces; shops cutting large progressive die plates need the CUT E 600 or larger
- U/V axis travel limited to +/-50 mm restricts taper cutting on thicker parts compared to +/-75 mm on higher-end machines
- Machine tool portion manufactured in China, which may concern shops requiring fully Swiss-built equipment
- Standard 8 kg wire spool requires frequent changes on long unattended runs without the optional 25 kg spool upgrade
- GF Machining Solutions North American service network is thinner than Makino or Mitsubishi in some regions
Best For
Frequently Asked Questions
01
New CUT E 350 machines typically price between $70,000 and $100,000 depending on options. Used machines from 2015-2020 sell in the $30,000-$55,000 range.
02
The main difference is travel and workpiece capacity. The CUT E 350 offers 350 x 250 x 256 mm travel with 500 kg max workpiece weight, while the CUT E 600 steps up to 600 x 400 x 350 mm and 1,000 kg. Both share the same UNIQUA control and ISPG generator.
03
The machine tool portion is manufactured in China. The ISPG generator and UNIQUA control system are Swiss-engineered by GF Machining Solutions. This split manufacturing is how GF offers the CUT E at a lower price than the Swiss-made CUT P and CUT S series.
04
UNIQUA is a modern touchscreen HMI supporting both sequential and object-oriented programming. Most operators find it more intuitive than traditional Fanuc or Mitsubishi EDM controls.
05
Yes. With the ISPG generator, automated threading, and UNIQUA job scheduling, it runs unattended production cuts reliably. The 500 kg capacity and 3 um accuracy handle production mold and die work well.
