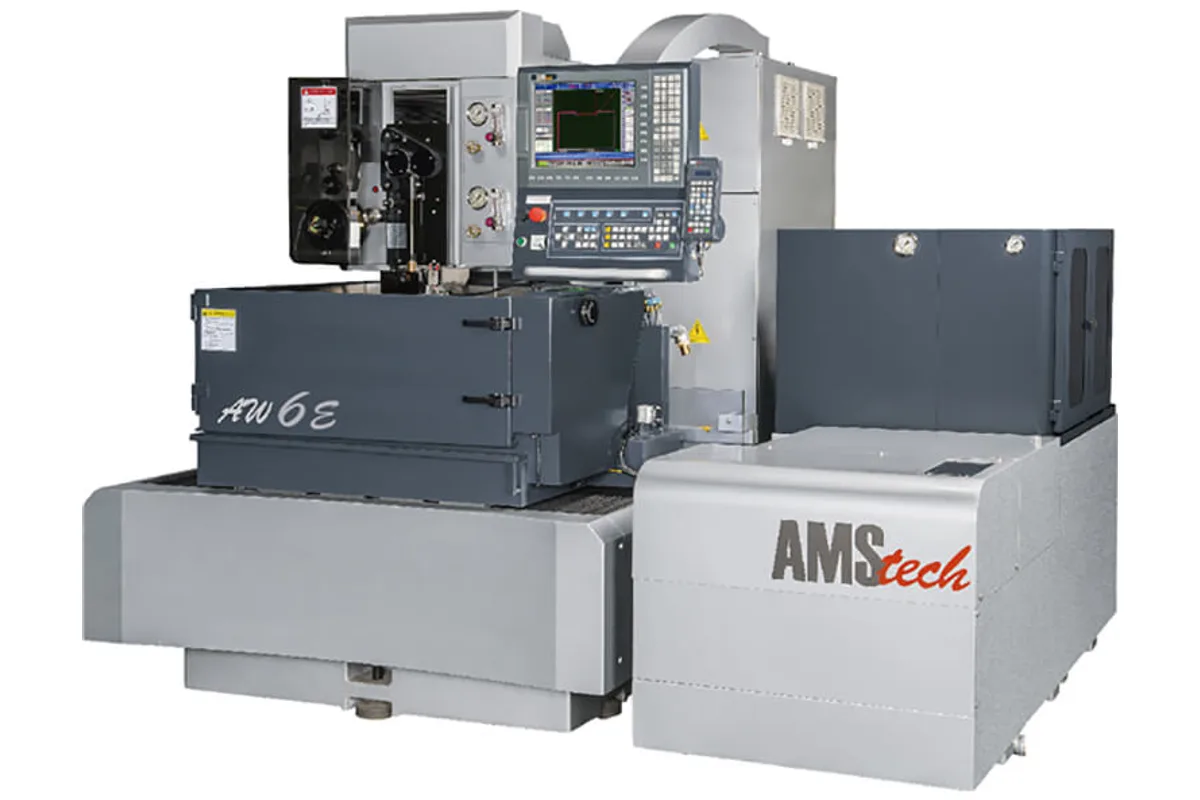

CHMER AW6E
Image: chmer.com, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER AW6E cost?
Price estimate
We do not have a price for the CHMER AW6E that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER AW6E tops the AMStech AW-E series of AC servo wire EDMs with 600 x 400 mm (23.6 x 15.7 in) of X and Y travel and 300 mm (11.8 in) of Z. It is the only AW-E model with 300 mm of Z; the AW4E and AW5E stop at 260 mm (10.2 in).
The extra Z shows up directly in the workpiece row: 950 x 650 x 295 mm (37.4 x 25.6 x 11.6 in), with a weight limit of 700 kg (1,543 lb). Taper is rated ±21°/140mm with the wide-angle nozzle, on U and V axes that travel 120 x 120 mm (4.7 x 4.7 in).
How does it sit against the linear motor AW6L? The AW6L has slightly more travel, 650 x 450 mm, a 0.1 mm minimum wire and 1,500 mm/min of rapid traverse. The AW6E lists 800 mm/min (31.5 ipm) and a wire range of 0.15-0.3 mm. For plate work on standard 0.25 mm wire, where cutting time dwarfs positioning time, the servo machine gives up little.
CHMER lists the weight as 5,120 kg + 1,000 kg and the outside dimensions as 3,100 x 2,750 x 2,220 mm (122.0 x 108.3 x 87.4 in). Tank volume and accessories are not published on the model page, so chiller capacity, filtration and automatic wire threading need to be settled with CHMER.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 600 mm (23.6 in) |
| Y Axis Travel | 400 mm (15.7 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Uv Axis Travel | 120 x 120 mm (4.7 x 4.7 in) |
| Max Workpiece Size | 950 x 650 x 295 mm (37.4 x 25.6 x 11.6 in) (W x D x H) |
| Max Workpiece Weight | 700 kg (1,543 lb) |
| Xy Rapid Traverse | Max. 800 mm/min (31.5 ipm) |
| Axis Drive System | AC Servo Motor |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Tension | 300-2,500 gf |
| Taper Angle | ±21°/140mm (Wide Angle Nozzle DA+DB=15mm) |
| Machine Dimensions | 3,100 x 2,750 x 2,220 mm (122.0 x 108.3 x 87.4 in) (W x D x H) |
| Machine Weight | 5,120 kg + 1,000 kg (11,287 lb + 2,205 lb) |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 600 x 400 x 300 mm (23.6 x 15.7 x 11.8 in) travels, the largest in the AW-E series
- Workpieces up to 950 x 650 x 295 mm (37.4 x 25.6 x 11.6 in) and 700 kg (1,543 lb)
- ±21°/140mm taper rating on 120 x 120 mm (4.7 x 4.7 in) U and V axes
- Only AW-E model with 300 mm (11.8 in) of Z travel
Limitations
- Rapid traverse of 800 mm/min (31.5 ipm), against 1,500 mm/min on the AW6L
- Wire range starts at 0.15 mm, so no fine-wire work
- Tank capacity and accessory lists are not published
Best For
Frequently Asked Questions
01
The AW6E is AC servo driven with 600 x 400 x 300 mm travels and 800 mm/min (31.5 ipm) of rapid traverse. The AW6L has X and Y linear motors, 650 x 450 x 300 mm travels, 1,500 mm/min (59.1 ipm) and wire from 0.1 mm. Load limits are 700 kg (1,543 lb) for the AW6E and 800 kg (1,764 lb) for the AW6L.
02
X 600 mm (23.6 in), Y 400 mm (15.7 in), Z 300 mm (11.8 in), and 120 x 120 mm (4.7 x 4.7 in) on U and V. Maximum X, Y rapid traverse is 800 mm/min (31.5 ipm).
03
Wire with a diameter of 0.15-0.3 mm (0.006-0.012 in); the standard size is 0.25 mm (0.010 in). Tension is adjustable from 300 to 2,500 gf and the wire feeds at up to 300 mm/sec (11.8 in/sec).
04
3,100 x 2,750 mm (122.0 x 108.3 in) of floor, with a height of 2,220 mm (87.4 in). The weight row reads 5,120 kg + 1,000 kg (11,287 lb + 2,205 lb).
