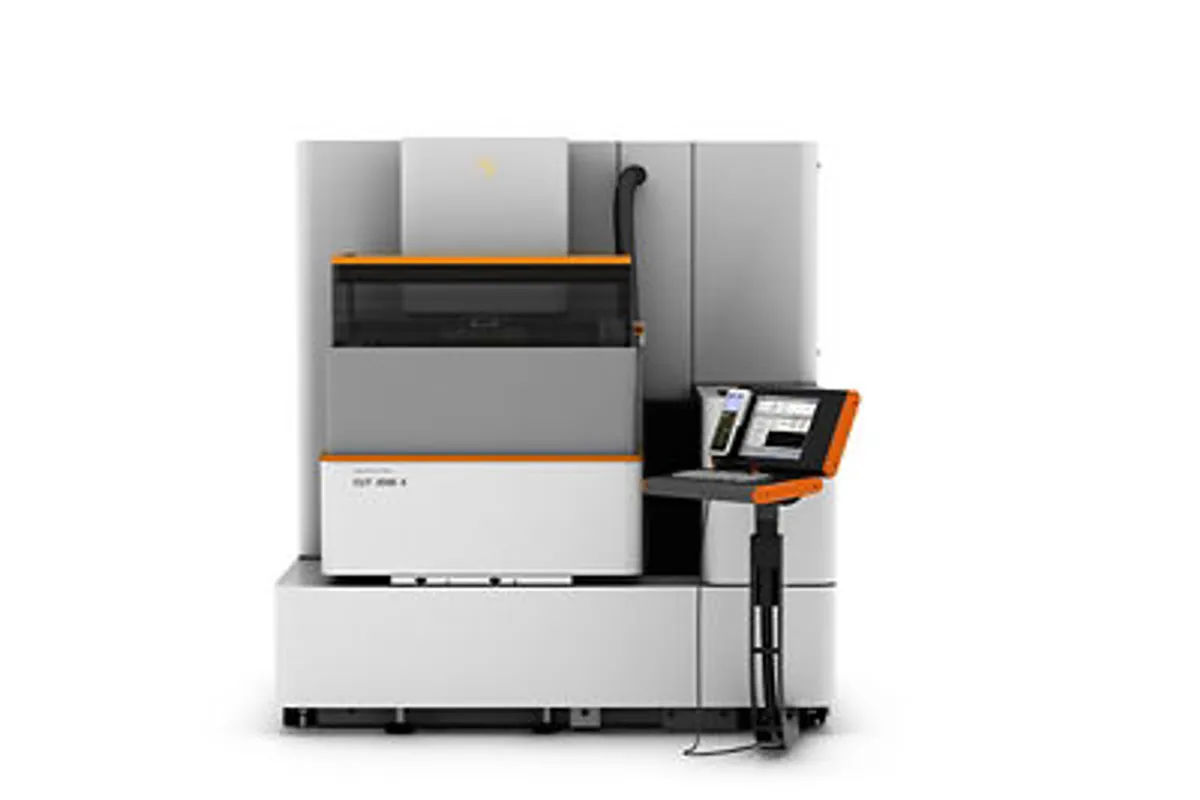

GF AgieCharmilles CUT 2000
Key Specifications
X Travel
Y Travel
Z Travel
Accuracy
u axis
v axis
Overview
The GF AgieCharmilles CUT 2000 is the extra-large-format wire EDM for shops working with the biggest die plates and mold components in the industry. With 1,200 x 700 x 500 mm (47.2 x 27.6 x 19.7 in) of X/Y/Z travel, this machine handles parts that will not fit on any compact or mid-size wire EDM, including full-size automotive stamping dies, large extrusion tooling, and massive progressive die assemblies.
The IPG generator delivers up to 350 mm2/min on standard tool steel. On a machine this size, cutting speed matters enormously since individual cuts can run for days. The generator maintains Ra 0.10 um (4 uin) surface finish capability even at high speeds.
Workpiece capacity is 5,000 kg (11,023 lb) on a table that accepts parts up to 1,800 x 1,200 x 500 mm (70.9 x 47.2 x 19.7 in). The work tank is sized for adequate dielectric circulation around the largest workpieces.
ICP collision protection, automatic wire threading, and UNIQUA HMI are all standard. Wire range is 0.10-0.33 mm, and U/V travel extends to +/-100 mm for taper cutting. Positioning accuracy is 5 um across the full 1,200 mm X-travel.
The CUT 2000 requires over 20 square meters of floor space and weighs approximately 14,000 kg (30,864 lb) without dielectric. Installation requires proper floor preparation for the weight and vibration isolation.
New CUT 2000 machines price between $400,000 and $550,000. Used machines are rare on the secondary market due to low production volumes.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,200 mm (47.2 in) |
| Y-Axis Travel | 700 mm (27.6 in) |
| Z-Axis Travel | 500 mm (19.7 in) |
| U Axis | +/-100 mm (+/-3.94 in) |
| V Axis | +/-100 mm (+/-3.94 in) |
| Max Taper Angle | +/-30 deg at 100 mm height |
| Max Workpiece Size | 1,800 x 1,200 x 500 mm (70.9 x 47.2 x 19.7 in) |
| Max Workpiece Weight | 5,000 kg (11,023 lb) |
| Wire Diameter Range | 0.10 - 0.33 mm (0.004 - 0.013 in) |
| Surface Finish | Ra 0.10 um (4 uin Ra) achievable |
| Positioning Accuracy | 5 um |
| Max Cutting Speed | 350 mm2/min (54 in2/hr) |
| CNC Control | UNIQUA HMI (touchscreen) |
| Generator | IPG (Intelligent Power Generator) |
| Collision Protection | ICP (Intelligent Collision Protection) |
| Machine Weight | 14,000 kg (30,864 lb) without dielectric |
| Machine Dimensions | 5,200 x 3,800 x 2,600 mm (204.7 x 149.6 x 102.4 in) |
Specifications sourced from gfms.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 1,200 x 700 x 500 mm travel handles the largest progressive dies and stamping tooling
- 5,000 kg workpiece capacity accommodates full-size automotive die plates
- +/-100 mm U/V travel enables taper cutting on the thickest parts
- IPG generator maintains 350 mm2/min speed for manageable cycle times
- ICP and UNIQUA enable multi-day unattended operation
- Wire range up to 0.33 mm for aggressive roughing
Limitations
- Over 20 square meters of floor space required
- $400,000-$550,000 price range restricts to high-volume operations
- 5 um positioning accuracy is adequate but not precision-class
- 14,000 kg machine weight requires reinforced floor preparation
- Very limited availability on the used market
Best For
Frequently Asked Questions
01
New CUT 2000 machines price between $400,000 and $550,000. Used machines are rare.
02
The CUT 3000 offers even larger travel up to 1,500 mm X for the absolute biggest parts.
03
The 14,000 kg weight requires reinforced concrete foundation and vibration isolation.
04
5 um accuracy across 1,200 mm is appropriate for the large dies this machine is designed for.
05
Yes. ICP, automatic threading, and UNIQUA job scheduling enable multi-day unattended operation.
