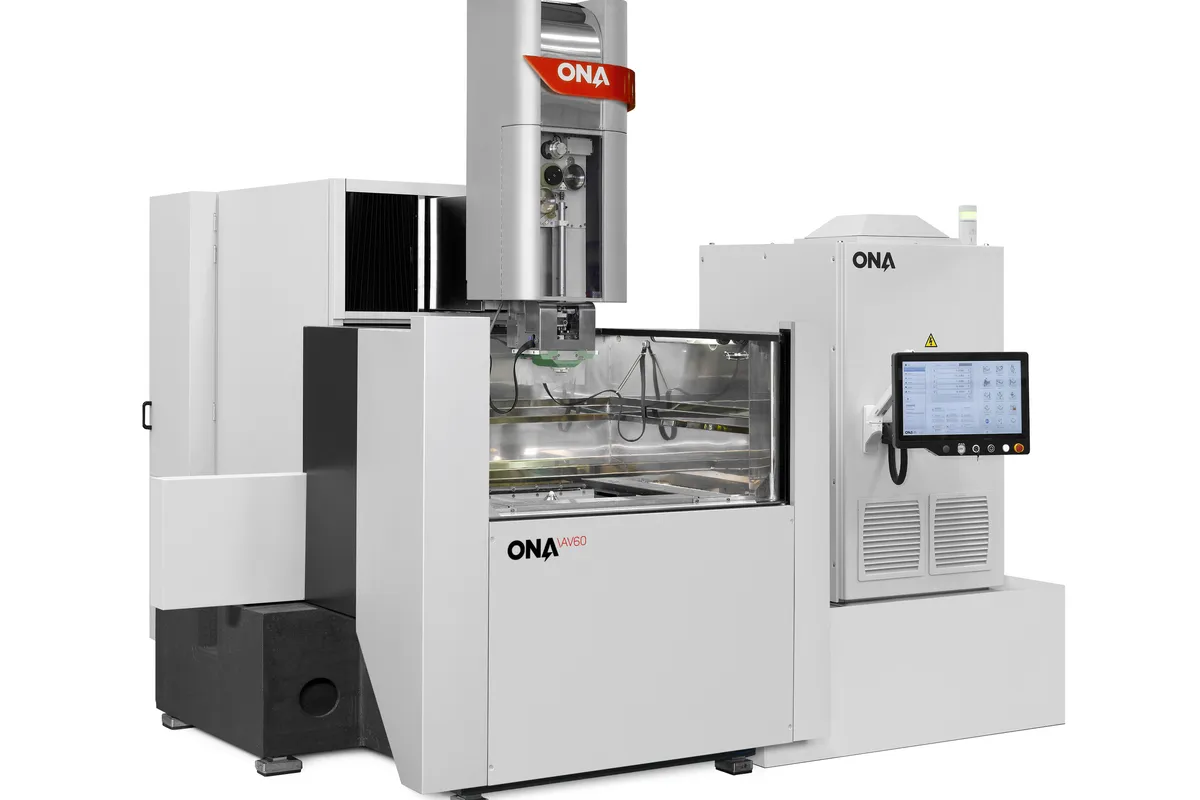

ONA AV60
Key Specifications
X Travel
Y Travel
Z Travel
max workpiece length
max workpiece width
max workpiece height
How much does the ONA AV60 cost?
Estimated price range
Our best estimate for a wire edm in this class — not a quote from ONA Electroerosion. Configuration moves it a long way.
Overview
The ONA AV60 is a large wire EDM with 800 mm (31.5 in) of X travel and 600 mm (23.6 in) of Y. ONA lists Z travel in four versions, 500 / 600 / 700 / 800 mm (19.7 / 23.6 / 27.5 / 31.5 in), and a table load of 5,000 kg (11,000 lbs), which places the machine in heavy die and mould work, well beyond general toolroom jobs.
The workpiece envelope is 1,300 mm (51.2 in) long, 1,040 mm (40.9 in) wide and 500 mm (19.7 in) high. Length and width both exceed the X and Y travels, so a plate can overhang the cutting area and be machined in the zone the wire reaches. Note that the listed workpiece height is 500 mm (19.7 in) while Z is offered up to 800 mm (31.5 in): ask which workpiece height applies to the taller Z versions before ordering one for thick parts.
Taper capacity is unusually large. The U and V axes travel 500 x 500 mm (19.7 x 19.7 in), and the maximum taper is +/- 30° over 400 mm (15.8 in) of height, with ±45° as an option. That covers extrusion dies, tall draft walls and other parts whose top and bottom profiles sit far apart, work that a machine with short U-V strokes cannot reach.
Wire diameters are listed as 0.20 / 0.33 mm (0.008 – 0.013 in). The maximum cutting speed is 450 mm²/min (42 in²/hr) with Ø 0.33 mm (0.013 in) Xcc wire, so the headline rate depends on running the thickest wire and that wire type. The AV80 is the next size up, with 1000 mm (39.4 in) of X and Y versions of 600 / 800 / 1000 mm (23.6 / 31.5 / 39.4 in) on the same Z options and the same 5,000 kg (11,000 lbs) table load.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 800 mm (31.5 in) |
| Y-Axis Travel | 600 mm (23.6 in) |
| Z-Axis Travel | 500 / 600 / 700 / 800 mm (19.7 / 23.6 / 27.5 / 31.5 in) |
| Max Workpiece Length | 1300 mm (51.2 in) |
| Max Workpiece Width | 1040 mm (40.9 in) |
| Max Workpiece Height | 500 mm (19.7 in) |
| Max Table Load | 5000 kg (11000 lbs) |
| Uv Travel | 500 x 500 mm (19.7 x 19.7 in) |
| Max Taper Angle | +/- 30° / 400 mm (+/- 30° / 15.8 in), optionally ±45° |
| Wire Diameter Range | 0.20 / 0.33 mm (0.008 – 0.013 in) |
| Max Cutting Speed | 450 mm²/min – Ø 0.33 mm, Xcc wire (42 in²/hr – Ø 0.013 in, Xcc wire) |
Specifications sourced from onaedm.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Table load of 5,000 kg (11,000 lbs) with workpieces up to 1,300 x 1,040 mm (51.2 x 40.9 in)
- Z travel offered in four versions: 500 / 600 / 700 / 800 mm (19.7 / 23.6 / 27.5 / 31.5 in)
- U-V travel of 500 x 500 mm (19.7 x 19.7 in) for large tapers
- Taper of +/- 30° over 400 mm (15.8 in), with ±45° available as an option
- Maximum cutting speed of 450 mm²/min (42 in²/hr) with Ø 0.33 mm (0.013 in) Xcc wire
Limitations
- The ±45° taper is an option; the listed maximum without it is +/- 30° over 400 mm (15.8 in)
- Listed wire diameters are 0.20 / 0.33 mm (0.008 – 0.013 in); nothing finer is listed for small internal radii
- Maximum workpiece height is listed at 500 mm (19.7 in) even though Z is offered up to 800 mm (31.5 in)
- The 450 mm²/min (42 in²/hr) rate applies to Ø 0.33 mm Xcc wire, not to the thinner wire
- No machine weight, footprint or power requirement is in the table, so installation data has to be requested
Best For
Frequently Asked Questions
01
X is 800 mm (31.5 in) and Y is 600 mm (23.6 in). Z is offered in four versions: 500 / 600 / 700 / 800 mm (19.7 / 23.6 / 27.5 / 31.5 in). The U and V axes travel 500 x 500 mm (19.7 x 19.7 in). A given machine has one of those Z versions, so establish which before planning tall work.
02
ONA lists a maximum workpiece of 1,300 mm (51.2 in) in length, 1,040 mm (40.9 in) in width and 500 mm (19.7 in) in height, with a maximum table load of 5,000 kg (11,000 lbs). The length and width are larger than the X and Y travels, so the full plate cannot be cut in one clamping.
03
The listed maximum is +/- 30° over 400 mm (15.8 in) of height, and ±45° is available as an option. The U-V travel behind those figures is 500 x 500 mm (19.7 x 19.7 in). If a job needs more than 30°, confirm the ±45° option is fitted.
04
Wire diameters are listed as 0.20 / 0.33 mm (0.008 – 0.013 in). The maximum cutting speed is 450 mm²/min (42 in²/hr), stated for Ø 0.33 mm (0.013 in) Xcc wire. Expect a lower rate with the thinner wire or a different wire type.
05
Travel in X and Y. The AV60 has 800 mm (31.5 in) of X and 600 mm (23.6 in) of Y. The AV80 has 1000 mm (39.4 in) of X and is offered with 600 / 800 / 1000 mm (23.6 / 31.5 / 39.4 in) of Y. The AV80 has the same Z options of 500 / 600 / 700 / 800 mm (19.7 / 23.6 / 27.5 / 31.5 in) and the same 5,000 kg (11,000 lbs) table load.
