CHMER CM A43C

Q: How much does the CHMER CM A43C cost?

The price estimate for the CHMER CM A43C is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chmer-cm-a43c#price; the request is passed to CHMER or an authorised dealer.

Specs verified 2026-10-05 · chmer.com Updated 2026-10-05

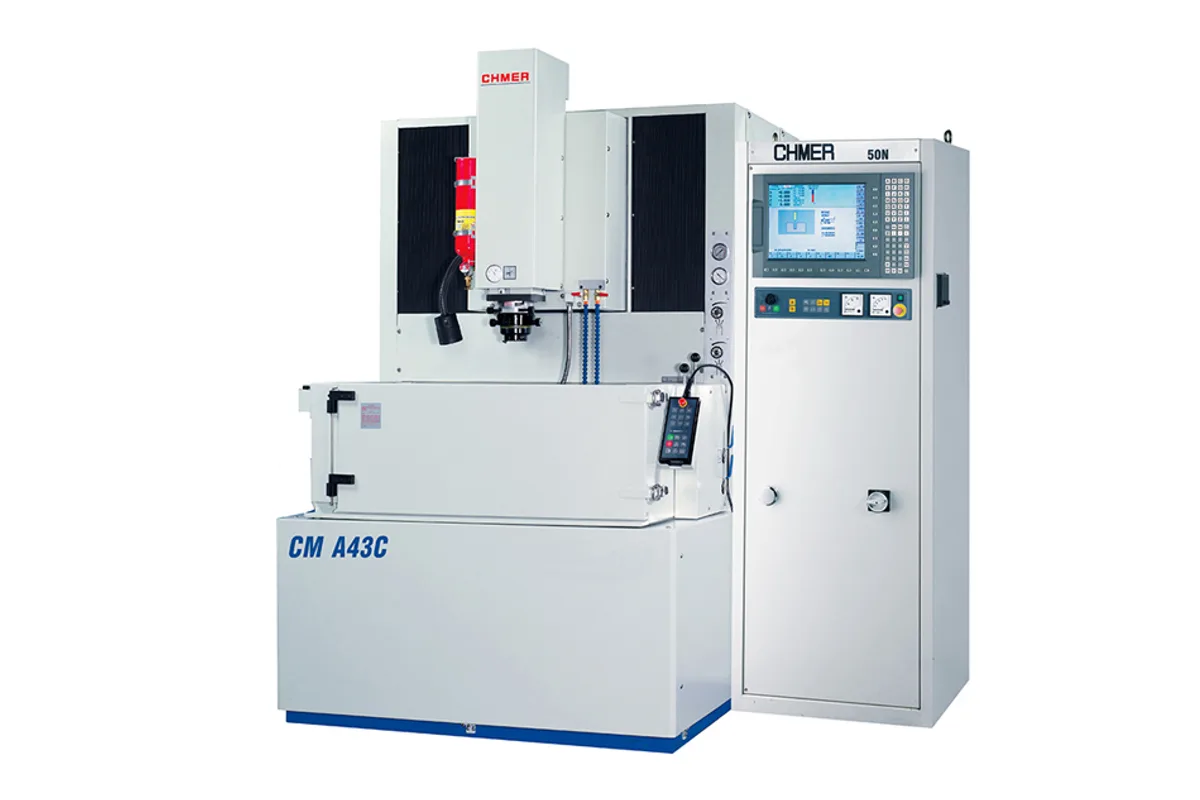

Image: chmer.com, CHMER

Key Specifications

Table Size

650 x 400 mm (25.6 x 15.7 in) (W x D)

work tank size

1,100 x 640 x 400 mm (43.3 x 25.2 x 15.7 in) (W x D x H)

x axis travel

400 mm (15.7 in)

y axis travel

300 mm (11.8 in)

z axis travel

350 mm (13.8 in)

distance ram platen to table

260-610 mm (10.2-24.0 in)

How much does the CHMER CM A43C cost?

Price estimate

Uncertain

We do not have a price for the CHMER CM A43C that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The CHMER CM A43C is a bridge-type CNC die sinker EDM with 400 x 300 mm (15.7 x 11.8 in) of table travel and 350 mm (13.8 in) of ram travel. CHMER describes the A series as a bridge design to fit heavy workpieces with a small footprint, and the figures bear that out: the machine carries a 1,000 kg (2,200 lb) workpiece inside outside dimensions of 1,910 x 1,800 x 2,280 mm.

The generator and the dielectric tank are both built in, which is where the compact outline comes from. The work tank measures 1,100 x 640 x 400 mm (43.3 x 25.2 x 15.7 in), and the dielectric volume is 480 L (127 gal) with paper filtration. Two generator ratings are offered, 50N and 75N, with maximum machining currents of 50 A and 75 A and power inputs of 4 kVA and 5 kVA.

Positioning uses linear glass scales in a closed-loop control system. The controller is PC based with dialogue programming: after the operator enters electrode material, workpiece material and electrode size, the working program is made automatically. An APC protection circuit is there to prevent arcing in finish machining.

Electrode weight is limited to 100 kg (220 lb), and the ram platen sits 260-610 mm above the table. Tool changer and C axis are options, as is CE conformity on the accessory list. CHMER's page gives two different machine weights for this model, so none is shown here.

Full Specifications

Parameter	Value
Table Size	650 x 400 mm (25.6 x 15.7 in) (W x D)
Work Tank Size	1,100 x 640 x 400 mm (43.3 x 25.2 x 15.7 in) (W x D x H)
X Axis Travel	400 mm (15.7 in)
Y Axis Travel	300 mm (11.8 in)
Z Axis Travel	350 mm (13.8 in)
Distance Ram Platen to Table	260-610 mm (10.2-24.0 in)
Max Electrode Weight	100 kg (220 lb)
Max Workpiece Weight	1,000 kg (2,200 lb)
Machine Dimensions	1,910 x 1,800 x 2,280 mm (75.1 x 70.8 x 89.7 in) (W x D x H)
Dielectric Tank Model	DA43
Generator Models	50N / 75N
Max Machining Current	50 A (50N) / 75 A (75N)
Max Power Input	4 kVA (50N) / 5 kVA (75N)
Electrode Wear Rate	0.2%
Best Surface Roughness	0.25 μm Ra
Dielectric Volume	480 L (127 gal)
Filter Method	Paper filter

Specifications sourced from chmer.com — verified 2026-10-05

Strengths & Limitations

Strengths

Bridge design: 1,000 kg (2,200 lb) workpiece in a 1,910 x 1,800 mm (75.1 x 70.8 in) footprint
Generator and 480 L (127 gal) dielectric tank are built in
Linear glass scales with closed-loop control
Dialogue PC-based CNC with automatic program generation
Best surface roughness listed at 0.25 μm Ra with an electrode wear rate of 0.2%

Limitations

Generator options stop at 75 A (75N); the D433CL can be ordered with a 150N generator
Tool changer and C axis are options
Table travel of 400 x 300 mm (15.7 x 11.8 in) is the smallest in the A series
Machine weight is published inconsistently

Best For

Small and medium mould cavities up to 1,000 kg (2,200 lb) Shops with limited floor space for a CNC sinker Finish burning to 0.25 μm Ra Operators who prefer dialogue programming

Frequently Asked Questions

01 What are the travels of the CM A43C?

Table travel is 400 x 300 mm (15.7 x 11.8 in) in X and Y, and ram travel is 350 mm (13.8 in). The table measures 650 x 400 mm (25.6 x 15.7 in) and the work tank 1,100 x 640 x 400 mm (43.3 x 25.2 x 15.7 in).

02 Which generators are available for the CM A43C?

Two: the 50N with a maximum machining current of 50 A and a power input of 4 kVA, and the 75N with 75 A and 5 kVA. Both list an electrode wear rate of 0.2% and a best surface roughness of 0.25 μm Ra, and both are built into the machine.

03 How much weight can the CM A43C carry?

The maximum workpiece weight is 1,000 kg (2,200 lb) and the maximum electrode weight is 100 kg (220 lb). CHMER attributes the load capacity to the bridge design.

04 Is a tool changer included on the CM A43C?

No. The option list names a tool changer, a C axis, a fire extinguisher, a magnetic base and CE conformity. Standard accessories are a paper filter, clamping kit, tool box, flushing nozzles, machine stand, drill chuck, electrode holder and halogen work lamp.
