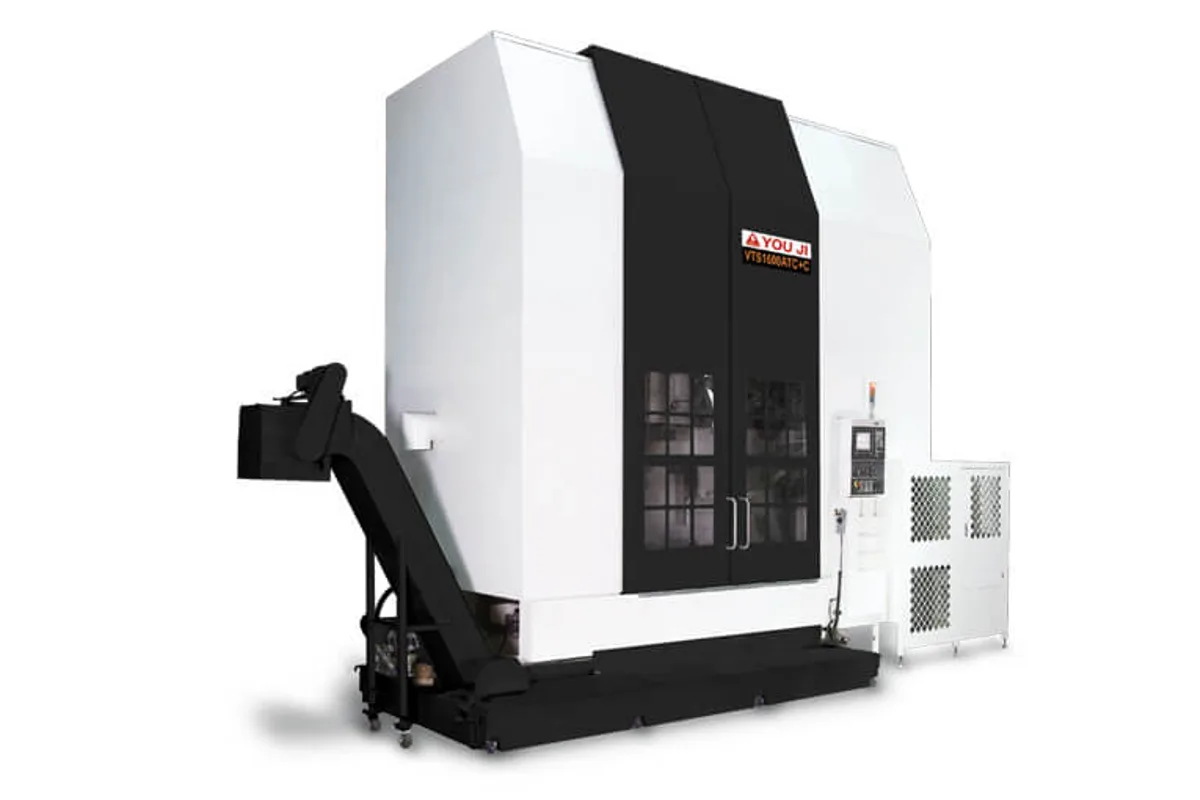

You Ji VTS3000ATC
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Power
table diameter
max swing diameter
max turning diameter
max turning height
How much does the You Ji VTS3000ATC cost?
Price estimate
We do not have a price for the You Ji VTS3000ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With the You Ji VTS3000ATC the fixed cross-rail is set higher: maximum turning height is 1,000 mm (39.4 in), up from the 800 mm (31.5 in) of the VTS2500ATC and every smaller VTS model. The table is Ø3,000 mm (118.1 in).
This vertical turning lathe also turns more diameter than its travelling-rail counterpart. The VTS3000ATC lists Ø3,400 mm (133.9 in) of turning diameter and Ø3,600 mm (141.7 in) of swing, where the VTL3000ATC lists Ø3,300 mm (129.9 in) and Ø3,400 mm (133.9 in). Loading weight, motor and speed range are the same on both: 20,000 kg (44,092 lb), 60/75 kW (80.5/100.6 hp) and 1-120 rpm.
Where does that leave the buyer? If no part is taller than a metre, the VTS gives the wider envelope in a lower and shorter machine, 11,000 x 6,500 mm (433.1 x 255.9 in) by 6,800 mm (267.7 in) high. If tall parts are possible, the VTL3000ATC with 1,700 mm (66.9 in) is the safer purchase.
The tool shank is Capto C6 throughout the series, and the model key lists a double ram build and ATC+C with C-axis function. The automatic pallet changer is not listed above the 2500. Wind-turbine yaw and pitch bearing rings, large gear rims and flange forgings are the parts this size is made for.
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | Ø3,000 mm (118.1 in) |
| Max Swing Diameter | Ø3,600 mm (141.7 in) |
| Max Turning Diameter | Ø3,400 mm (133.9 in) |
| Max Turning Height | 1,000 mm (39.4 in) |
| Max Table Load | 20,000 kg (44,092 lb) |
| Spindle Motor Power | 60/75 kW (80.5/100.6 hp) |
| Tool Shank | Capto C6 |
| Max Spindle Speed | 1-120 rpm |
| Floor Space | 11,000 x 6,500 mm (433.1 x 255.9 in) |
| Machine Height | 6,800 mm (267.7 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,000 mm (39.4 in) turning height, more than the smaller VTS models
- Ø3,400 mm (133.9 in) turning diameter, wider than the VTL3000ATC's Ø3,300 mm (129.9 in)
- 20,000 kg (44,092 lb) loading weight with a 60/75 kW (80.5/100.6 hp) motor
- Lower machine than the VTL3000ATC: 6,800 mm (267.7 in) against 7,400 mm (291.3 in)
Limitations
- No pallet changer: APC is listed only up to the VTS2500ATC
- Capto C6 only; the VTL3000ATC lists the heavier BT-50/BT-60 shank
- Floor dimension of 11,000 x 6,500 mm (433.1 x 255.9 in)
- 1-120 rpm table speed range
Best For
Frequently Asked Questions
01
Maximum turning height is 1,000 mm (39.4 in). The VTS2500ATC is limited to 800 mm (31.5 in), and the VTL3000ATC with its travelling rail reaches 1,700 mm (66.9 in).
02
Ø3,400 mm (133.9 in) maximum turning diameter inside a Ø3,600 mm (141.7 in) swing, on a Ø3,000 mm (118.1 in) table. Loading weight is 20,000 kg (44,092 lb).
03
The tool shank row reads Capto C6 and tools are loaded by an automatic tool changer. An ATC+C build adds a C-axis function, and a double ram (2R) build is listed for sizes 1600 and upward.
04
The spindle motor is 60/75 kW (80.5/100.6 hp) and the table speed range 1-120 rpm, the same as the VTL3000ATC.
