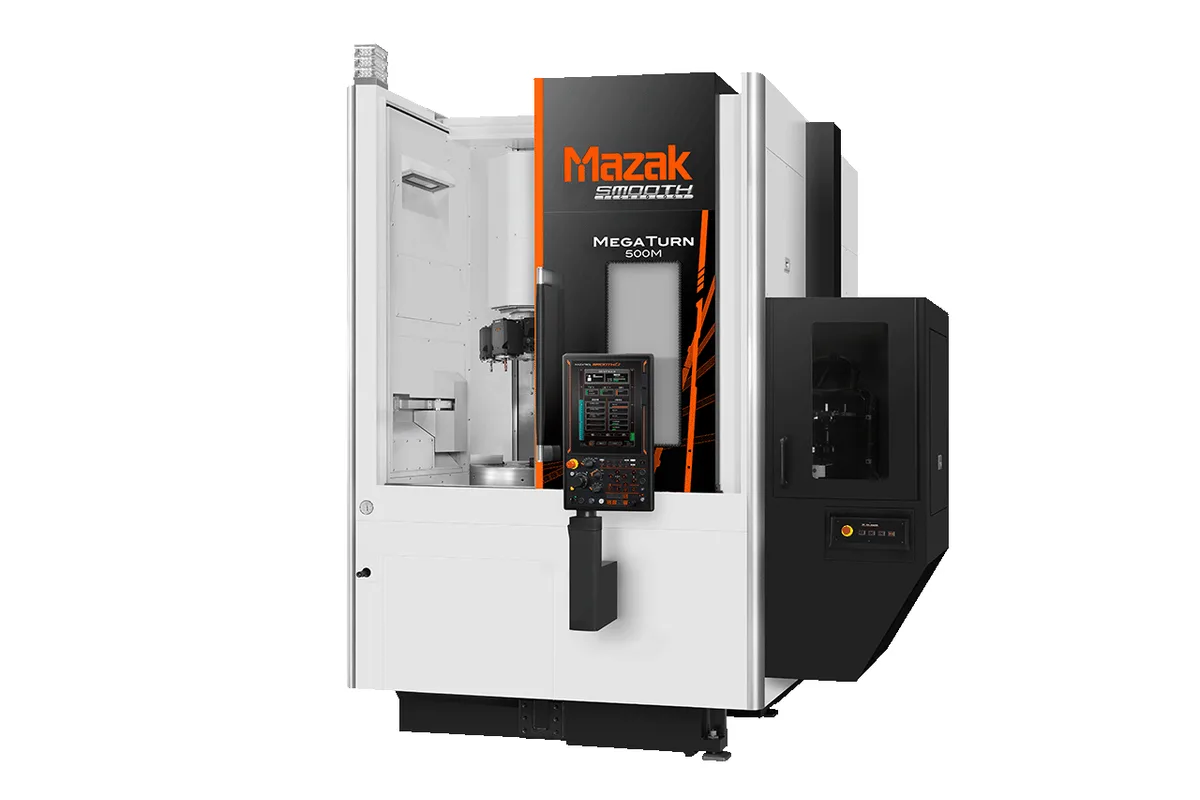

Mazak MEGA TURN 600
Image: mazak.com, Yamazaki Mazak
Key Specifications
X Travel
Z Travel
Max Spindle
Tool Capacity
Spindle Power
max turning diameter
How much does the Mazak MEGA TURN 600 cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
With the Mazak MEGA TURN 600, the series steps up to Ø25 in (635 mm) of turning diameter and 1,543 lb (700 kg) of table load without lengthening either axis. X travel is 14 in (356 mm) and Z travel is 20 in (508 mm), exactly as on the MEGA TURN 500, and both machines rapid at 1,181 ipm (30 m/min).
What changes is the spindle. Top speed drops to 2,200 rpm, where the MEGA TURN 500 reaches 3,000 rpm, and torque is 738 ft-lb (1,001 Nm) at a 15%ED rating. Power is 22 kW (30 HP) continuous and 30 kW (40 HP) (40% ED). The lower ceiling costs little at the rim of a part this size, because a large diameter reaches its cutting speed at modest rpm. It shows on small bores and at the centre of a face, where surface speed falls away.
Mazak's series page gives this model group a maximum machining diameter of 23.62 in to 24.8 in. The turning-only model sits at the top of that range, while the MEGA TURN 600M, the milling version, is listed at Ø24 in (610 mm). If the last inch of diameter decides the job, that is the reason to stay with this model.
The next size is a much bigger machine. The Mega Turn 900 turns Ø36 in (914 mm), carries 6,614 lb (3,000 kg) and has 19 in (483 mm) of X and 34 in (864 mm) of Z, at 30,864 lb (14,000 kg) against the 21,605 lb (9,800 kg) of this one. A part that outgrows the 20 in (508 mm) of Z travel here has no step in between.
The table lists a 12-tool turret with a 1 in (25 mm) shank height and Ø2 in (51 mm) boring bars. The footprint is 73 in (1,854 mm) × 94 in (2,388 mm) with the MAZATROL SmoothEz control, and the machine is 118 in (2,997 mm) tall.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | Ø25 in (635 mm) |
| Max Table Load | 1,543 lb (700 kg) |
| Max Spindle Speed | 2,200 rpm |
| Spindle Torque Intermittent | 738 ft-lb (1,001 Nm) (15% ED) |
| Spindle Power Intermittent | 30 kW (40 HP) (40% ED) |
| Spindle Motor Power | 22 kW (30 HP) continuous |
| Tool Capacity | 12 tools |
| Turret Tool Shank Height | 1 in (25 mm) |
| Turret Boring Bar Shank Diameter | Ø2 in (51 mm) |
| X-Axis Travel | 14 in (356 mm) |
| Z-Axis Travel | 20 in (508 mm) |
| Rapid Traverse X | 1,181 ipm (30 m/min) |
| Rapid Traverse Z | 1,181 ipm (30 m/min) |
| Floor Space Required | 73 in (1,854 mm) × 94 in (2,388 mm) (W × L, MAZATROL SmoothEz) |
| Machine Height | 118 in (2,997 mm) |
| Machine Weight | 21,605 lb (9,800 kg) |
Specifications sourced from mazak.com — verified 2026-10-02
Strengths & Limitations
Strengths
- Ø25 in (635 mm) turning diameter and 1,543 lb (700 kg) table load, up from Ø20 in (508 mm) and 1,102 lb (500 kg) on the MEGA TURN 500
- 738 ft-lb (1,001 Nm) of spindle torque (15%ED) and 30 kW (40 HP) (40% ED) above a 22 kW (30 HP) continuous rating
- Largest diameter in its model group: Mazak gives the range as 23.62 in to 24.8 in, and the MEGA TURN 600M is listed at Ø24 in (610 mm)
- 1,181 ipm (30 m/min) rapids on both axes, faster than the 945 ipm (24 m/min) of the Mega Turn 900
- Offered in mirror-image versions, which Mazak says shorten the operator's walk between two machines and save floor space
Limitations
- Z travel is 20 in (508 mm) and X travel 14 in (356 mm), no more than the MEGA TURN 500 has
- The 2,200 rpm top speed, against 3,000 rpm on the MEGA TURN 500, slows small bores and facing near the centre
- Turning only: this model's table has no rotary-tool spindle, which the MEGA TURN 600M provides
- The step up is large: the Mega Turn 900 weighs 30,864 lb (14,000 kg) against 21,605 lb (9,800 kg) here, with no size between them
Best For
Frequently Asked Questions
01
Diameter and load. The MEGA TURN 500 turns Ø20 in (508 mm) and carries 1,102 lb (500 kg); this model turns Ø25 in (635 mm) and carries 1,543 lb (700 kg). X travel, Z travel and rapids are identical. The MEGA TURN 500 spins faster, at 3,000 rpm against 2,200 rpm, and is lighter at 20,392 lb (9,250 kg) against 21,605 lb (9,800 kg).
02
The table for the MEGA TURN 600M gives Ø24 in (610 mm), while this turning-only model is listed at Ø25 in (635 mm). Mazak's series page states the range for the group as 23.62 in to 24.8 in. Table load, travels and machine weight are the same on both models, so the difference is confined to the maximum diameter.
03
For the outer diameters, yes: large diameters need little spindle speed to reach a given cutting speed. The limit is felt on small bores and when facing toward the centre, where the surface speed drops with the diameter. If most of the work is small-diameter boring, the 3,000 rpm of the MEGA TURN 500 is the better fit.
04
The Mega Turn 900, with Ø36 in (914 mm) of turning diameter, a 6,614 lb (3,000 kg) table load, 19 in (483 mm) of X travel and 34 in (864 mm) of Z travel. The Mega Turn 900 is also slower in every sense, with a 1,250 rpm spindle and 945 ipm (24 m/min) rapids, and much heavier at 30,864 lb (14,000 kg).
05
The turret holds 12 tools, with a 1 in (25 mm) tool shank height and boring bars up to Ø2 in (51 mm). Mazak quotes a footprint of 73 in (1,854 mm) × 94 in (2,388 mm) with MAZATROL SmoothEz and a height of 118 in (2,997 mm). Machine weight is 21,605 lb (9,800 kg).
Videos

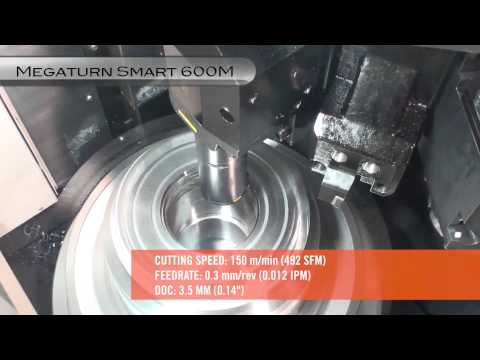

Yamazaki Mazak Corporation [English]
