You Ji VTL4500ATC
Key Specifications
Max Spindle
Spindle Power
table diameter
max swing diameter
max turning diameter
max turning height
How much does the You Ji VTL4500ATC cost?
Price estimate
We do not have a price for the You Ji VTL4500ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The largest machine in You Ji's VTL table is the VTL4500ATC, a CNC vertical turning lathe with a Ø4,500 mm (177.2 in) table. It turns Ø4,800 mm (189.0 in) and swings Ø5,100 mm (200.8 in).
Mechanically it is the VTL4000ATC with a wider envelope. The spindle motor is the same 100 kW (134.1 hp), the speed range the same 1-60 rpm, the loading weight the same 30,000 kg (66,138 lb) and the turning height the same 1,600 mm (63.0 in). The tool shank row again reads BT-50/BT-60.
The building is where the two part ways. This model needs 13,000 x 10,500 mm (511.8 x 413.4 in) of floor, two metres deeper than the VTL4000ATC, and stands 7,800 mm (307.1 in) high, the tallest figure in the VTL table. Raised-column builds, which the model key lists for the series, go higher still.
Since load does not increase, the VTL4500ATC is the machine for parts that are wide but not dense: fabricated rings, large-diameter flanges, tunnel-boring and crane slewing components, antenna and generator frames. When weight is the problem, the VTH4500ATC lists the same table, swing and turning diameter with 60,000 kg (132,275 lb) on a hydrostatic table bearing. A double ram build lets two tools work on a face this wide at the same time, which shortens long facing passes considerably.
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | Ø4,500 mm (177.2 in) |
| Max Swing Diameter | Ø5,100 mm (200.8 in) |
| Max Turning Diameter | Ø4,800 mm (189.0 in) |
| Max Turning Height | 1,600 mm (63.0 in) |
| Max Table Load | 30,000 kg (66,138 lb) |
| Spindle Motor Power | 100 kW (134.1 hp) |
| Tool Shank | BT-50/BT-60 |
| Max Spindle Speed | 1-60 rpm |
| Floor Space | 13,000 x 10,500 mm (511.8 x 413.4 in) |
| Machine Height | 7,800 mm (307.1 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Ø4,800 mm (189.0 in) turning diameter, the largest in the VTL series
- 100 kW (134.1 hp) spindle motor with BT-50/BT-60 tooling
- 30,000 kg (66,138 lb) loading weight
- Double ram, C-axis and raised-column builds are listed for the series
Limitations
- Floor dimension of 13,000 x 10,500 mm (511.8 x 413.4 in) and 7,800 mm (307.1 in) height
- Loading weight is no higher than on the VTL4000ATC
- Table speed range is limited to 1-60 rpm
- Turning height remains 1,600 mm (63.0 in)
Best For
Frequently Asked Questions
01
Ø4,800 mm (189.0 in) in turning diameter within a Ø5,100 mm (200.8 in) swing, up to 1,600 mm (63.0 in) high and 30,000 kg (66,138 lb). The table is Ø4,500 mm (177.2 in).
02
Only in size. The VTL4000ATC turns Ø4,300 mm (169.3 in) on 12,500 x 8,500 mm (492.1 x 334.6 in) of floor at 7,400 mm (291.3 in) height. The VTL4500ATC turns Ø4,800 mm (189.0 in) on 13,000 x 10,500 mm (511.8 x 413.4 in) at 7,800 mm (307.1 in). Motor, speed, load and turning height are the same.
03
Yes. The VTH4500ATC has the same Ø4,500 mm (177.2 in) table and Ø4,800 mm (189.0 in) turning diameter with a hydrostatic table bearing, a 60,000 kg (132,275 lb) loading weight and a 100/140 kW (134.1/187.7 hp) motor.
04
A 100 kW (134.1 hp) spindle motor driving the table at 1-60 rpm. The catalogue does not list table torque or the number of gear ranges.
More from You Ji
Other CNC Lathes / Turning Centers
Huron AX M 200
Tsugami M08SD-II
Johnford ST-80CH

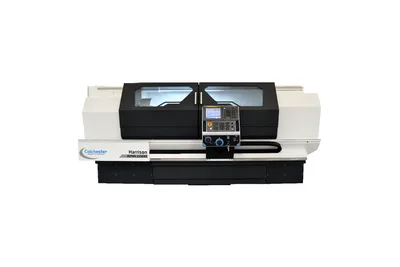

Harrison Alpha 1460XS
