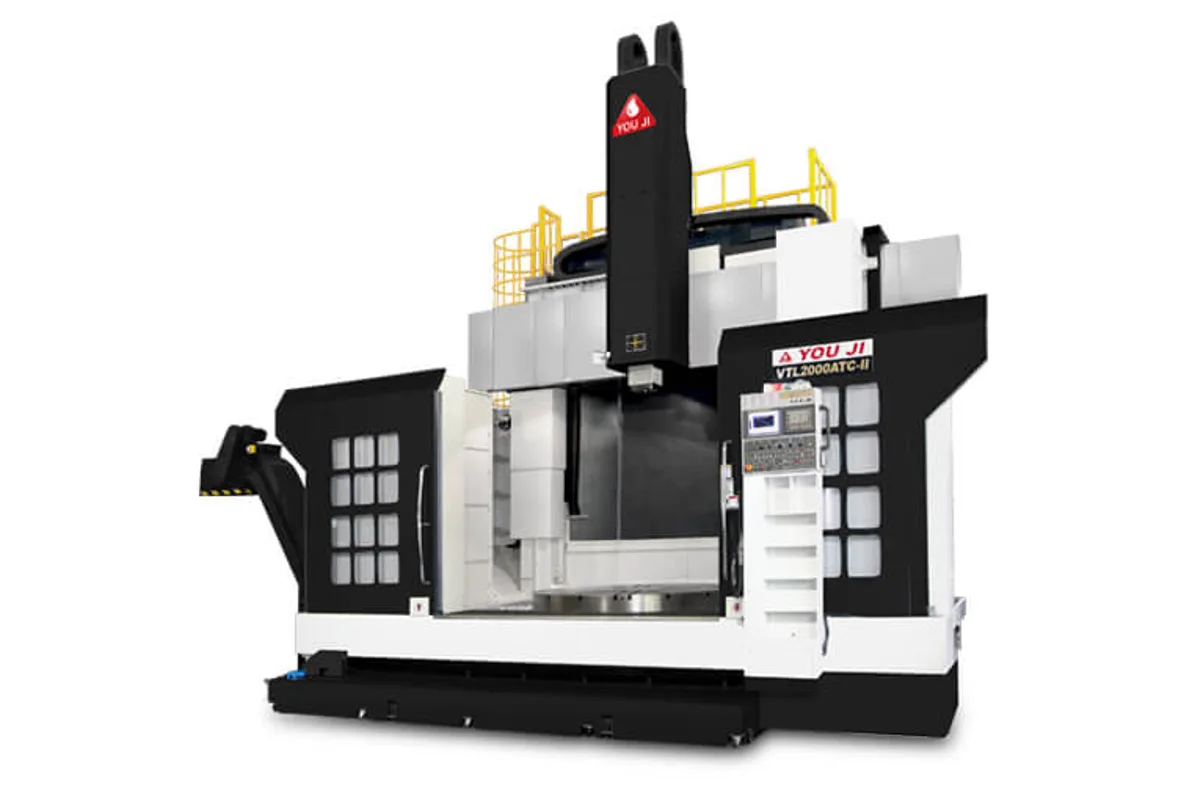

You Ji VTL2500ATC
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Power
table diameter
max swing diameter
max turning diameter
max turning height
How much does the You Ji VTL2500ATC cost?
Price estimate
We do not have a price for the You Ji VTL2500ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
For shops that want a pallet changer on the biggest possible table, the You Ji VTL2500ATC is the limit. You Ji lists the automatic pallet changer for VTL sizes 1000 to 2500, and this CNC vertical turning lathe sits at the top of that span with a Ø2,500 mm (98.4 in) table.
It turns Ø2,800 mm (110.2 in), swings Ø3,000 mm (118.1 in) and accepts parts 1,600 mm (63.0 in) high. Loading weight is 15,000 kg (33,069 lb), half as much again as the VTL2000ATC. The drive is the same 60/75 kW (80.5/100.6 hp) motor, here geared for 1-160 rpm.
The tool shank is BT-50, changed automatically. The next size, the VTL3000ATC, is where the table lists BT-50/BT-60 and where the footprint jumps to 11,000 x 7,000 mm (433.1 x 275.6 in). By comparison the VTL2500ATC is a compact machine at 7,550 x 5,130 mm (297.2 x 202.0 in) and 6,650 mm (261.8 in) high, which is why it is often the largest vertical lathe that fits an existing bay without civil work on the scale of the bigger models.
Double ram and ATC+C builds apply, as do the two raised-column heights. Typical parts are wind-turbine bearing rings, large valve bodies, mill rolls stood on end and reducer housings.
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | Ø2,500 mm (98.4 in) |
| Max Swing Diameter | Ø3,000 mm (118.1 in) |
| Max Turning Diameter | Ø2,800 mm (110.2 in) |
| Max Turning Height | 1,600 mm (63.0 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| Spindle Motor Power | 60/75 kW (80.5/100.6 hp) |
| Tool Shank | BT-50 |
| Max Spindle Speed | 1-160 rpm |
| Floor Space | 7,550 x 5,130 mm (297.2 x 202.0 in) |
| Machine Height | 6,650 mm (261.8 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Largest VTL size listed with an automatic pallet changer
- 15,000 kg (33,069 lb) loading weight on a Ø2,500 mm (98.4 in) table
- Ø2,800 mm (110.2 in) turning diameter with 1,600 mm (63.0 in) of height
- Floor dimension of 7,550 x 5,130 mm (297.2 x 202.0 in), far less than the VTL3000ATC
Limitations
- Tool shank is BT-50; the BT-60 choice starts one size up
- Motor is the same 60/75 kW (80.5/100.6 hp) as the VTL2000ATC despite the heavier load
- Table speed range is only 1-160 rpm
- Height of 6,650 mm (261.8 in) before any column raise
Best For
Frequently Asked Questions
01
The maximum loading weight is 15,000 kg (33,069 lb) on a Ø2,500 mm (98.4 in) table. The VTL2000ATC is rated 10,000 kg (22,046 lb) and the VTL3000ATC 20,000 kg (44,092 lb).
02
According to the model key, yes: APC, automatic pallet changer, is listed for sizes 1000 to 2500. The VTL3000ATC and larger machines are outside that span.
03
Maximum turning diameter is Ø2,800 mm (110.2 in), maximum swing Ø3,000 mm (118.1 in) and maximum turning height 1,600 mm (63.0 in). The spindle motor is 60/75 kW (80.5/100.6 hp) with a range of 1-160 rpm.
04
7,550 x 5,130 mm (297.2 x 202.0 in) of floor and 6,650 mm (261.8 in) of height. The pallet changer and chip conveyor extend beyond the tabled floor dimension, and the catalogue does not print the combined layout.
More from You Ji
Other CNC Lathes / Turning Centers

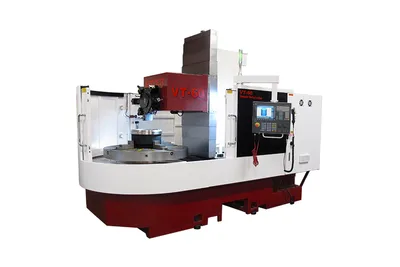

Fryer VT-60
Tsugami M08J-II

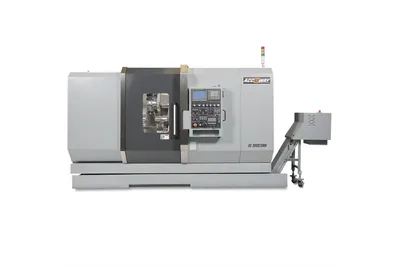

Accuway UZ-2000T2MW
