Breton Hawx E1 K60

Q: How much does the Breton Hawx E1 K60 cost?

The price estimate for the Breton Hawx E1 K60 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/breton-hawx-e1-k60#price; the request is passed to Breton or an authorised dealer.

Specs verified 2026-10-05 · breton.it Updated 2026-10-05

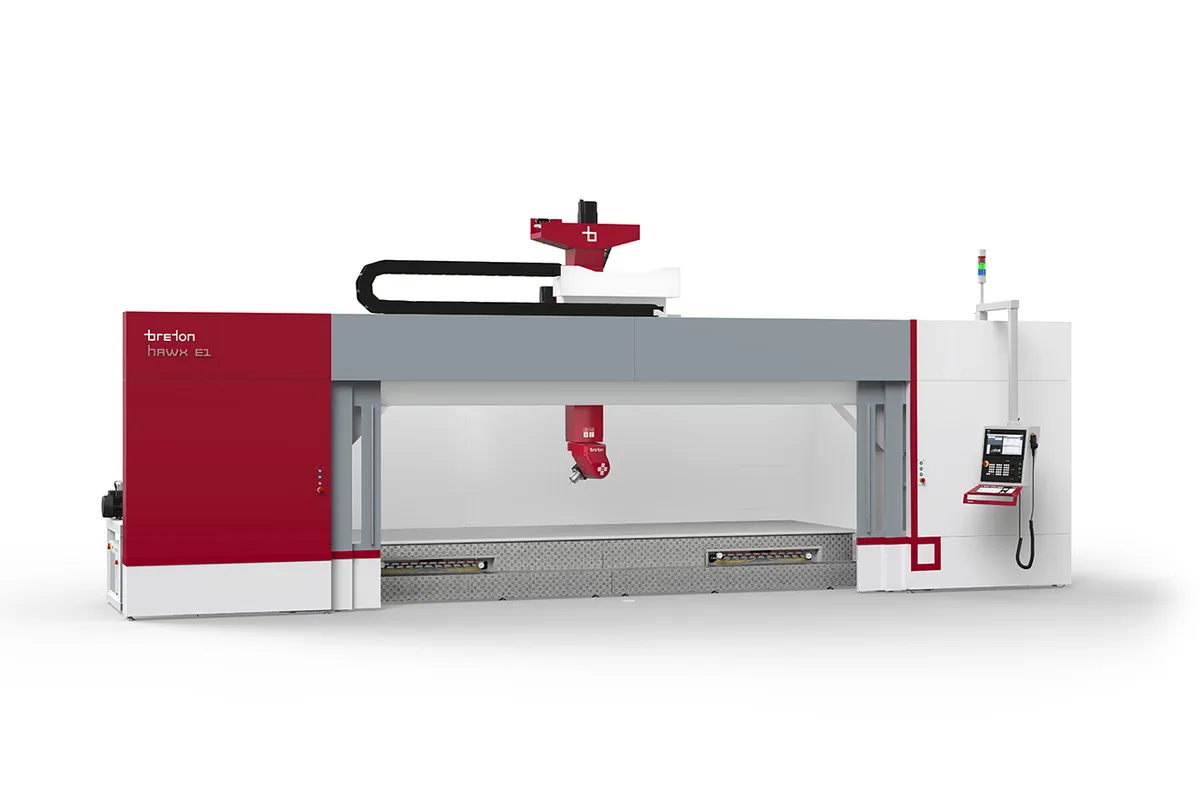

Breton Hawx E1 K60 5-axis gantry machining centre

Image: breton.it, Breton

Key Specifications

Max Spindle

24,000 rpm

Spindle Taper

HSK-A63 / HSK-F63

x axis travel

6,000 mm (236.2 in)

y axis travel

1,900 mm (74.8 in)

z axis travel

1,300 mm (51.2 in)

rapid traverse x

80 m/min (3,150 ipm)

How much does the Breton Hawx E1 K60 cost?

Price estimate

Uncertain

We do not have a price for the Breton Hawx E1 K60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Six metres of X travel on a one-piece frame is the point of the Breton Hawx E1 K60. The 5-axis gantry machining centre lists 6,000 mm (236.2 in) in X, 1,900 mm (74.8 in) in Y and 1,300 mm (51.2 in) in Z, and Breton aims it at milling and trimming of complex shapes in light alloys, polymers, resins and composite materials.

Long and fairly narrow is the right way to picture the envelope. Boat and vehicle patterns, wing-like panels and long extrusions fit; anything wider than the Y travel does not, however much X is left over. Where length matters less, the Breton Hawx E1 K40 offers 4,000 mm (157.5 in) of X on otherwise identical rows.

A long bed is also a chance to split the table. Breton lists more than 4 workload automation configurations for the Hawx: mechanical clamping, a modular vacuum grid, double-acting suction cups or an automatic pallet changer. Which of them a given machine carries is a matter for the order, and the version table says nothing about table load.

Traverse speed matters more as the axis gets longer. The K60 keeps the E1 rapids of 80 m/min (3,150 ipm) in X and Y, with 60 m/min (2,362 ipm) in Z. The spindle reaches 24,000 rpm and is rated 25 kW (33.5 hp) in S6, with 20 Nm (14.8 lb-ft) of S6 torque, on an HSK-A63 / HSK-F63 interface.

Breton describes the Hawx as suited to both wet and dry machining, so the same machine can cut aluminium with coolant and trim laminate with extraction.

Full Specifications

Parameter	Value
X Axis Travel	6,000 mm (236.2 in)
Y Axis Travel	1,900 mm (74.8 in)
Z Axis Travel	1,300 mm (51.2 in)
Rapid Traverse X	80 m/min (3,150 ipm)
Rapid Traverse Y	80 m/min (3,150 ipm)
Rapid Traverse Z	60 m/min (2,362 ipm)
A Axis Range	-135° to 105°
A Axis Rapid Speed	28 rpm
C Axis Range	-270° to 270°
C Axis Rapid Speed	28 rpm
Spindle Power S6	25 kW (33.5 hp)
Spindle Power S1	22 kW (29.5 hp)
Spindle Torque S6	20 Nm (14.8 lb-ft)
Spindle Torque S1	18 Nm (13.3 lb-ft)
Max Spindle Speed	24,000 rpm
Spindle Taper	HSK-A63 / HSK-F63
CNC Control	Siemens Sinumerik One

Specifications sourced from breton.it — verified 2026-10-05

Strengths & Limitations

Strengths

6,000 mm (236.2 in) of X travel on the self-supporting monolithic E1 structure
X and Y rapids of 80 m/min (3,150 ipm) keep repositioning short over a long bed
Breton lists more than 4 workload automation configurations, including a modular vacuum grid and an automatic pallet changer
Head ranges of -135° to 105° in A and -270° to 270° in C
Described by the maker as suited to both wet and dry machining

Limitations

Y stays at 1,900 mm (74.8 in), so the extra length does not help with wide parts
S1 torque is 18 Nm (13.3 lb-ft); the spindle is sized for small tools, not for heavy stock removal
The rotary axes turn at 28 rpm, which limits how fast the head can reorient between faces
No accuracy, table load or weight rows in the version table

Best For

Long patterns and moulds up to 6,000 mm (236.2 in) in resin or aluminium Trimming of long composite skins and profiles Two shorter jobs set up end to end on one bed Mixed wet aluminium milling and dry composite trimming

Frequently Asked Questions

01 How long a part can the Breton Hawx E1 K60 machine?

X travel is 6,000 mm (236.2 in), with 1,900 mm (74.8 in) in Y and 1,300 mm (51.2 in) in Z. The usable length on a real part is a little less than the travel once the head is tilted, so check the part against the maker's layout drawing when it is close to the limit.

02 Is the Hawx E1 K60 faster or slower than the E2 machines?

In X and Y it is faster on paper: 80 m/min (3,150 ipm) against the 70 m/min (2,756 ipm) that the Breton Hawx E2 K58 lists. Z is 60 m/min (2,362 ipm) on both, and the rotary axes are 28 rpm on both.

03 How is the workpiece held on the Hawx E1 K60?

Breton names more than 4 workload automation configurations for the Hawx: mechanical clamping, a modular vacuum grid, double-acting suction cups, or an automatic pallet changer. The version table does not say which is standard, so treat the clamping system as part of the specification to agree with the maker.

04 Which control and tool interface does the Hawx E1 K60 use?

The control is Siemens Sinumerik One, which Breton calls the latest generation of Siemens numerical control. The tool taper row reads HSK-A63 / HSK-F63, and the spindle runs to 24,000 rpm.
