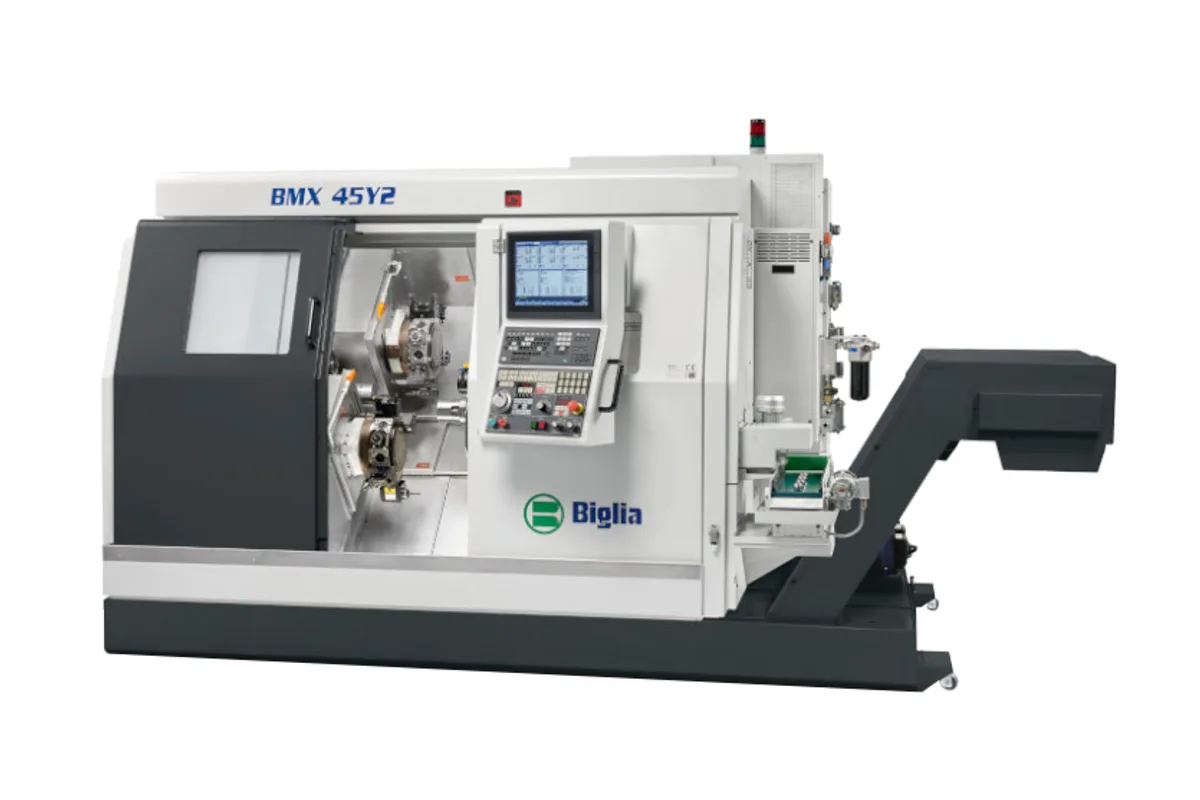

Biglia BMX 45Y2

Specs verified 2026-10-05 · bigliaspa.it Updated 2026-10-05

Image: bigliaspa.it, Biglia

Key Specifications

Max Spindle

6,000 rpm (main spindle and sub-spindle)

Spindle Power

11 kW (14.8 hp) max. (main spindle and sub-spindle)

Max Turn Length

180 mm (7.1 in)

bar capacity

45 mm (1.8 in)

max turning diameter

100 mm (3.9 in)

swing over diameter

140 mm (5.5 in)

How much does the Biglia BMX 45Y2 cost?

Price estimate

Uncertain

We do not have a price for the Biglia BMX 45Y2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Biglia BMX 45Y2 is a compact bar machine with two spindles, two turrets and a Y-axis on each turret, which Biglia counts as ten axes in all. Bar capacity is 45 mm (1.8 in), maximum machining diameter 100 mm and maximum machining length 180 mm (7.1 in). It is made for small, complicated parts that are dropped off complete.

Both spindles are the same: liquid-cooled integral motor spindles running to 6,000 rpm with 11 kW and 95 Nm, a 55 mm bore and a 46 mm drawtube. Neither end of the part is the weak one, which makes it easier to split the operations evenly and shorten the cycle.

Each turret has 12 stations, all of them able to drive a tool, and Biglia states that up to 30 tools can work at once when multiple holders are used. Live tools are rated 2.2 / 4.6 kW and 22 Nm at 6,000 rpm. The turret strokes are short, as the parts are: 110 mm on X1 and X2, 350 mm on Z1 and Z2 and 60 mm on Y1 and Y2, split 30 mm either side of centre.

The detail that defines the machine is the sub-spindle slide. Besides its 390 mm Z3 stroke the sub-spindle moves 170 mm crosswise on X3, 85 mm to each side, so it can step away from the main spindle axis. Biglia lists three gains: the turrets no longer get in each other's way, three tools can cut together using the Superimposition function, and the sub-spindle can act as a tailstock while both turrets work on the main side.

Control is a Mitsubishi M830VS. The machine weighs 6,000 kg with swarf conveyor.

Full Specifications

Parameter	Value
Bar Capacity	45 mm (1.8 in)
Max Turning Diameter	100 mm (3.9 in)
Max Turning Length	180 mm (7.1 in)
Swing Over Diameter	140 mm (5.5 in)
Max Spindle Speed	6,000 rpm (main spindle and sub-spindle)
Spindle Nose	115 mm (4.5 in) flange connection
Spindle Bore	55 mm (2.2 in)
Drawtube Inside Diameter	46 mm (1.8 in)
Spindle Bearing Inside Diameter	85 mm (3.3 in)
Chuck Size	110 mm (4.3 in)
Spindle Motor Power	11 kW (14.8 hp) max. (main spindle and sub-spindle)
Spindle Torque	95 Nm (70 lb-ft)
C Axis Min Programmable Value	0.001°
X3 Axis Sub Spindle Offset Travel	170 [-85 / +85] mm (6.7 [-3.3 / +3.3] in)
Rapid Traverse X3	15 m/min (591 ipm)
Z3 Axis Sub Spindle Travel	390 mm (15.4 in)
Rapid Traverse Z3	30 m/min (1,181 ipm)
Turret Stations	12 per turret (upper turret 1, lower turret 2)
Turret Indexing Time	0.15 sec (1 position)
Live Tool Stations	12
Live Tool Speed	6,000 rpm
Live Tool Power	2.2 / 4.6 kW (3.0 / 6.2 hp)
Live Tool Torque	22 Nm (16 lb-ft)
X1 X2 Axis Travel	110 mm (4.3 in)
Rapid Traverse X1 X2	15 m/min (591 ipm)
Z1 Z2 Axis Travel	350 mm (13.8 in)
Rapid Traverse Z1 Z2	30 m/min (1,181 ipm)
Y1 Y2 Axis Travel	60 [-30 / +30] mm (2.4 [-1.2 / +1.2] in)
Rapid Traverse Y1 Y2	15 m/min (591 ipm)
Coolant Tank Capacity	200 L (52.8 gal)
Coolant Pressure Standard Pump	7 bar (102 psi)
Machine Dimensions	4,520 x 1,910 x 2,195 mm (178.0 x 75.2 x 86.4 in), with swarf conveyor (last figure is the height)
Spindle Centre Height	1,165 mm (45.9 in)
Machine Weight	6,000 kg (13,228 lb) with swarf conveyor
CNC Control	Mitsubishi M830VS

Specifications sourced from bigliaspa.it — verified 2026-10-05

Strengths & Limitations

Strengths

Two identical spindles: 6,000 rpm, 11 kW and 95 Nm on both main and sub
Two 12-station turrets, each with its own Y-axis and live tooling on every position
Sub-spindle with X3 offset of 170 mm as well as 390 mm of Z3, which Biglia says removes turret interference
Scales on the X1 and X2 axes, bar-feeder interface, parts-catcher and finished parts conveyor are standard features
Rapids of 30 m/min on the Z axes and 15 m/min on X and Y

Limitations

Parts are limited to 45 mm bar, 100 mm in diameter and 180 mm in length
Live tool torque is 22 Nm and power 2.2 / 4.6 kW, so milling is light
Y travel is 60 mm in total, 30 mm either side of centre
Standard coolant pressure is 7 bar; the 40 bar high-pressure pump is an option

Best For

Small complex parts from bar up to 45 mm Parts that need balanced machining on both ends High-volume work where two turrets cut at the same time Small shafts held by the sub-spindle used as a tailstock

Frequently Asked Questions

01 What size of part is the BMX 45Y2 designed for?

Biglia lists a bar capacity of 45 mm, a maximum machining diameter of 100 mm, a maximum machining length of 180 mm and a swing over diameter of 140 mm. The automatic parts-catcher unloads finished parts up to 180 mm long. Chuck diameter is given as 110 mm.

02 Why does the sub-spindle of the BMX 45Y2 move sideways?

The sub-spindle has an X3 axis with 170 mm of stroke, 85 mm to each side, in addition to its 390 mm Z3 stroke. Offsetting it from the main spindle keeps the two turrets clear of each other, lets three tools cut at once through the Superimposition function, and allows the sub-spindle to hold the part like a tailstock while turret 1 and turret 2 both work on it.

03 How many tools does the BMX 45Y2 carry?

Two Biglia servo turrets with 12 stations each, upper turret 1 and lower turret 2. Every position can take a live tool, and the brochure says up to 30 tools can work simultaneously. Indexing takes 0.15 sec for one position. Rotary tools run to 6,000 rpm with 22 Nm.

04 Which CNC does the BMX 45Y2 use?

The brochure names the CNC unit as a Mitsubishi M830VS with a 15" colour touch screen, a keyboard and a Biglia operator panel with softkeys. Data moves by USB, Ethernet, memory card or RS232. The brochure also lists SSS Control, Nano Interpolation and OMR Control among the functions of this CNC.

05 Can the BMX 45Y2 machine shafts between centres?

As an option. Biglia offers a support with a rotating centre that mounts on the sub-spindle, so the sub-spindle serves as a regular tailstock for small shafts. Without it, the sub-spindle can still grip the far end of a part while the turrets cut.
