Biesse Tekni Cut Up J M

Q: How much does the Biesse Tekni Cut Up J M cost?

The price estimate for the Biesse Tekni Cut Up J M is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/biesse-tekni-cut-up-j-m#price; the request is passed to Biesse or an authorised dealer.

Specs verified 2026-10-05 · biesse.com Updated 2026-10-05

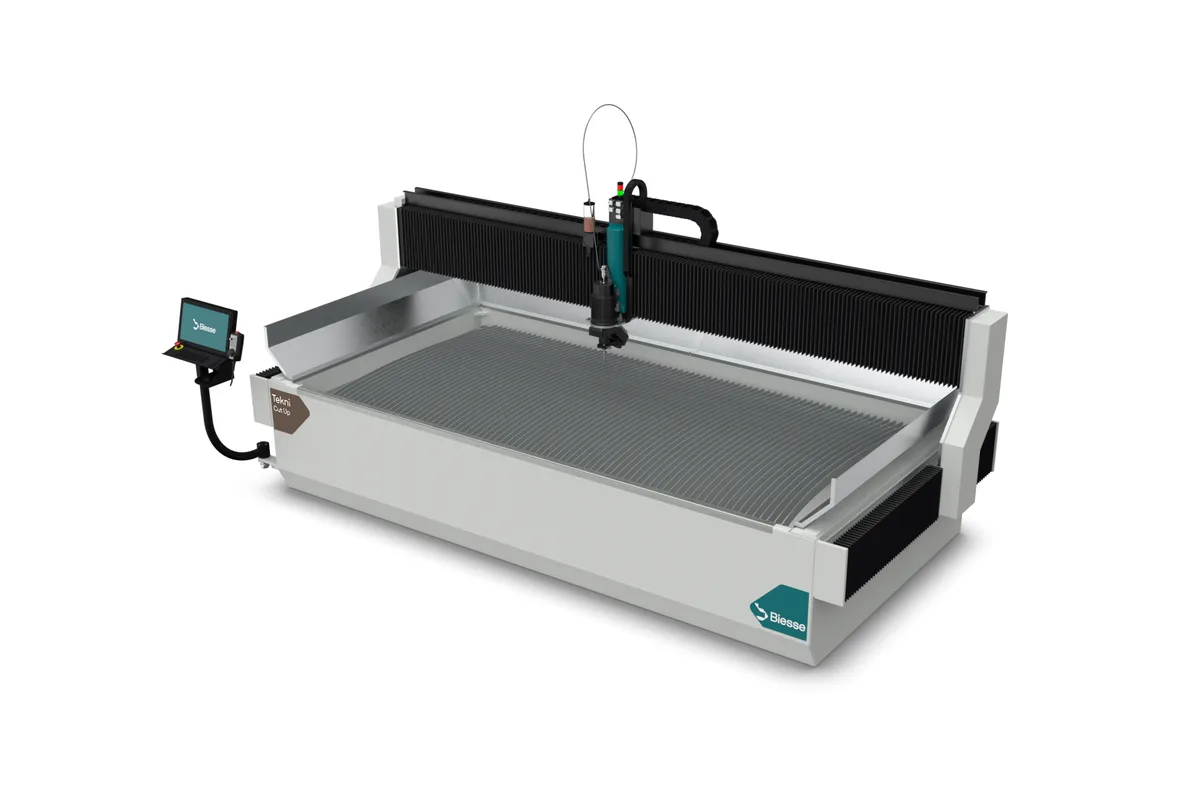

Biesse Tekni Cut Up J M monobloc waterjet

Image: biesse.com, Biesse

Key Specifications

size

1737

cutting area

3,700 x 1,700 mm (145.7 x 66.9 in)

versions

3-axis (Start configuration); 5-axis (Regular configuration)

pump esp 37 66 max output pressure

4,550 bar

pump esp 37 66 max output volume

3.8 l/min

pump esp 37 66 power

37 kW (49.6 hp)

How much does the Biesse Tekni Cut Up J M cost?

Price estimate

Uncertain

We do not have a price for the Biesse Tekni Cut Up J M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

One table, two axis counts: the Biesse Tekni Cut Up J M is a monobloc waterjet for metal with a single cutting area of 3,700 x 1,700 mm (145.7 x 66.9 in). It is listed as a 3-axis machine in the Start configuration or a 5-axis machine in the Regular configuration, both on that same cutting area.

Monobloc is the point of this model. Biesse says the one-piece design gives quick installation and fast commissioning, so the machine moves from delivery to cutting with little site work. The consequence is the single size. Where the Tekni Cut Up J G spreads across six sizes up to 6,100 x 3,050 mm (240.2 x 120.1 in), this one fixes the table and leaves the buyer to choose axes and pump.

Three pumps are listed. The Power series ESP 37/66 gives 3.8 l/min at 4,550 bar from 37 kW (49.6 hp). Its dual pump version, ESP 74/66, doubles the motor to 74 kW (99.2 hp) for 7.6 l/min at the same pressure. The Ultimate series UP 40/6000 goes the other way: 6,000 bar, 3.0 l/min, 40 kW (53.6 hp). Pressure against volume is the real decision. More pressure raises jet velocity for thick or hard plate, and more volume feeds a larger orifice.

The 5-axis head rotates continuously, with direct drive tilting and rotating axes positioned to ±0.1°. Biesse states positional precision of 0.05 mm and repeatability of 0.025 mm from linear scale feedback, and axis speeds of up to 17.5 m/min on the stainless steel band drive. A height detector sets stand-off before each pierce.

Full Specifications

Parameter	Value
Size	1737
Cutting Area	3,700 x 1,700 mm (145.7 x 66.9 in)
Versions	3-axis (Start configuration); 5-axis (Regular configuration)
Pump Esp 37 66 Max Output Pressure	4,550 bar
Pump Esp 37 66 Max Output Volume	3.8 l/min
Pump Esp 37 66 Power	37 kW (49.6 hp)
Pump Esp 74 66 Dual Pump Max Output Pressure	4,550 bar
Pump Esp 74 66 Dual Pump Max Output Volume	7.6 l/min
Pump Esp 74 66 Dual Pump Power	74 kW (99.2 hp)
Pump Up 40 6000 Max Output Pressure	6,000 bar
Pump Up 40 6000 Max Output Volume	3.0 l/min
Pump Up 40 6000 Power	40 kW (53.6 hp)

Specifications sourced from biesse.com — verified 2026-10-05

Strengths & Limitations

Strengths

Monobloc design for quick installation and fast commissioning
3,700 x 1,700 mm (145.7 x 66.9 in) cutting area on both the 3-axis and the 5-axis version
Three pump choices: 4,550 bar at 3.8 l/min or 7.6 l/min, or 6,000 bar at 3.0 l/min
Positional precision of 0.05 mm and repeatability of 0.025 mm with linear scale feedback
Integrated height detector measures material flatness and adjusts Z

Limitations

Only one table size is offered
The 6,000 bar pump delivers 3.0 l/min, less than the 3.8 l/min of the 37 kW (49.6 hp) pump
The 7.6 l/min option needs the 74 kW (99.2 hp) dual pump
No Z stroke, table load or weight is published on the page

Best For

Shops that want a waterjet running soon after delivery Plate and sheet up to 3,700 x 1,700 mm (145.7 x 66.9 in) Bevel and 5-axis cutting without giving up cutting area Mixed metal work in a single mid-size format

Frequently Asked Questions

01 What does monobloc mean on the Tekni Cut Up J M?

The machine is built as one unit. Biesse states the monobloc design ensures quick installation and fast commissioning and describes the result as a compact solution. In practice the format is fixed: there is one cutting area, 3,700 x 1,700 mm (145.7 x 66.9 in), and the options are the axis count and the pump.

02 Does the 5-axis version have a smaller cutting area?

Not according to the table. Both columns, the 3-axis Start configuration and the 5-axis Regular configuration, list a cutting area of 3,700 x 1,700 mm (145.7 x 66.9 in). The 5-axis head has continuous rotation and its tilting and rotating axes position to ±0.1°, so bevels are cut without repositioning the part.

03 Which pump should be chosen for the Tekni Cut Up J M?

Three are listed. ESP 37/66: 4,550 bar, 3.8 l/min, 37 kW. ESP 74/66, a dual pump: 4,550 bar, 7.6 l/min, 74 kW. UP 40/6000: 6,000 bar, 3.0 l/min, 40 kW. The 6,000 bar pump trades volume for pressure. The dual pump is the choice when flow matters most, and its 74 kW has to be allowed for in the electrical supply.

04 How fast and how precise are the axes?

Biesse gives speeds of up to 17.5 m/min for the stainless steel band drive, which is designed for abrasive waterjet environments. Positional precision is stated as 0.05 mm and repeatability as 0.025 mm, with linear scale feedback. Protective bellows cover the drive.
