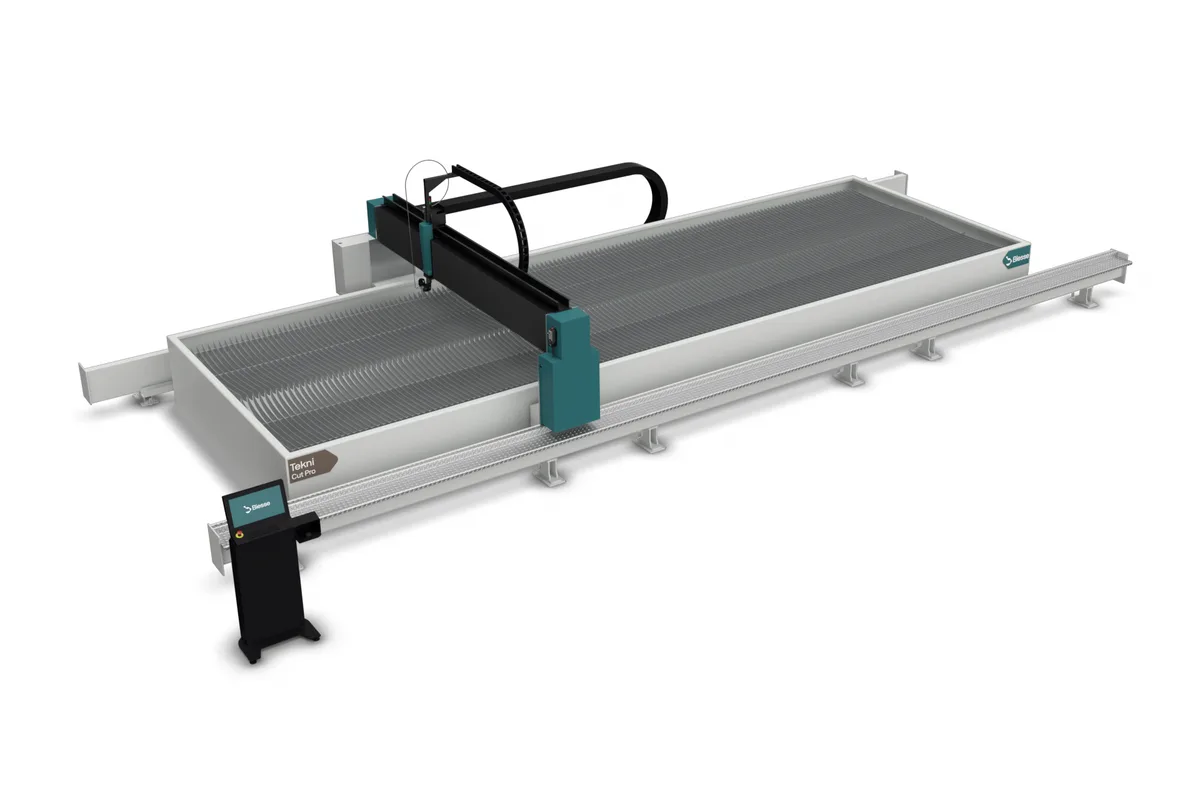

Biesse Tekni Cut Pro J L
Image: biesse.com, Biesse
Key Specifications
size
cutting area
versions
pump esp 37 66 max output pressure
pump esp 37 66 max output volume
pump esp 37 66 power
How much does the Biesse Tekni Cut Pro J L cost?
Price estimate
We do not have a price for the Biesse Tekni Cut Pro J L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 10,000 x 3,000 mm (393.7 x 118.1 in), the cutting area of the Biesse Tekni Cut Pro J L is the largest in the Tekni Cut waterjet range, and it is the only size the model is offered in. Two versions are listed: 3-axis in the Regular configuration and 5-axis in the Full configuration.
A table this long changes how the work is organised. Full-size sheets are cut without repositioning, which Biesse says reduces setup time and the risk of errors or material damage. Several smaller plates can also be laid along the table and cut in one program. The maker aims the model at industries with large and heavy components.
Accuracy over that distance rests on linear scale feedback: Biesse states positional precision of 0.05 mm and repeatability of 0.025 mm. Axis speed is up to 17.5 m/min on the stainless steel band drive. On a table of this length that figure is worth a second look, because moves between parts at opposite ends take real time.
The pump list has three entries. Two Power series pumps work at 4,550 bar, with 3.8 l/min from 37 kW (49.6 hp) or 7.6 l/min from the 74 kW (99.2 hp) dual pump, and the Ultimate series pump reaches 6,000 bar at 3.0 l/min with 40 kW (53.6 hp). The Tekni Cut Up J G covers the sizes below, up to 6,100 x 3,050 mm (240.2 x 120.1 in) in 3-axis form.
Full Specifications
| Parameter | Value |
|---|---|
| Size | 30100 |
| Cutting Area | 10,000 x 3,000 mm (393.7 x 118.1 in) |
| Versions | 3-axis (Regular configuration); 5-axis (Full configuration) |
| Pump Esp 37 66 Max Output Pressure | 4,550 bar |
| Pump Esp 37 66 Max Output Volume | 3.8 l/min |
| Pump Esp 37 66 Power | 37 kW (49.6 hp) |
| Pump Esp 74 66 Dual Pump Max Output Pressure | 4,550 bar |
| Pump Esp 74 66 Dual Pump Max Output Volume | 7.6 l/min |
| Pump Esp 74 66 Dual Pump Power | 74 kW (99.2 hp) |
| Pump Up 40 6000 Max Output Pressure | 6,000 bar |
| Pump Up 40 6000 Max Output Volume | 3.0 l/min |
| Pump Up 40 6000 Power | 40 kW (53.6 hp) |
Specifications sourced from biesse.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 10,000 x 3,000 mm (393.7 x 118.1 in) cutting area for full-size sheets without repositioning
- Available as 3-axis or as 5-axis with a continuously rotating head
- Linear scale feedback with 0.05 mm positional precision and 0.025 mm repeatability
- Dual pump option with 7.6 l/min at 4,550 bar
- Height detector follows material flatness and adjusts Z automatically
Limitations
- A single size: no shorter or wider version of this model is listed
- Axis speed of up to 17.5 m/min means long traverses on a 10,000 mm table take time
- The 6,000 bar pump delivers 3.0 l/min, the lowest volume of the three
- Floor space, table load and machine weight are not given on the page
Best For
Frequently Asked Questions
01
The cutting area is 10,000 x 3,000 mm (393.7 x 118.1 in), listed under the single size code 30100. Biesse describes the work table as measuring 10000X3000 mm and says it handles large-format sheets without repositioning. The overall footprint of the machine is not published, so the layout drawing has to come from Biesse.
02
On this model the table ties them to the axis count: the 3-axis version is the Regular configuration and the 5-axis version is the Full configuration. Both have the same 10,000 x 3,000 mm (393.7 x 118.1 in) cutting area. The page does not itemise what else each configuration includes, so ask for the equipment list.
03
Three: Power series ESP 37/66 with 4,550 bar, 3.8 l/min and 37 kW; Power series ESP 74/66, a dual pump, with 4,550 bar, 7.6 l/min and 74 kW; and Ultimate series UP 40/6000 with 6,000 bar, 3.0 l/min and 40 kW. The Light series pumps listed for the Tekni Cut Go J C, 15 kW (20.1 hp) and 22 kW (29.5 hp), are not offered here.
04
Yes. Biesse lists integrated advanced engraving for marking text, logos and detailed graphics without piercing the material. A height detection system adjusts the Z axis to compensate for surface irregularities, which matters over a long table where plate is rarely flat from end to end.
