Biesse Tekni Cut Go J C

Specs verified 2026-10-05 · biesse.com Updated 2026-10-05

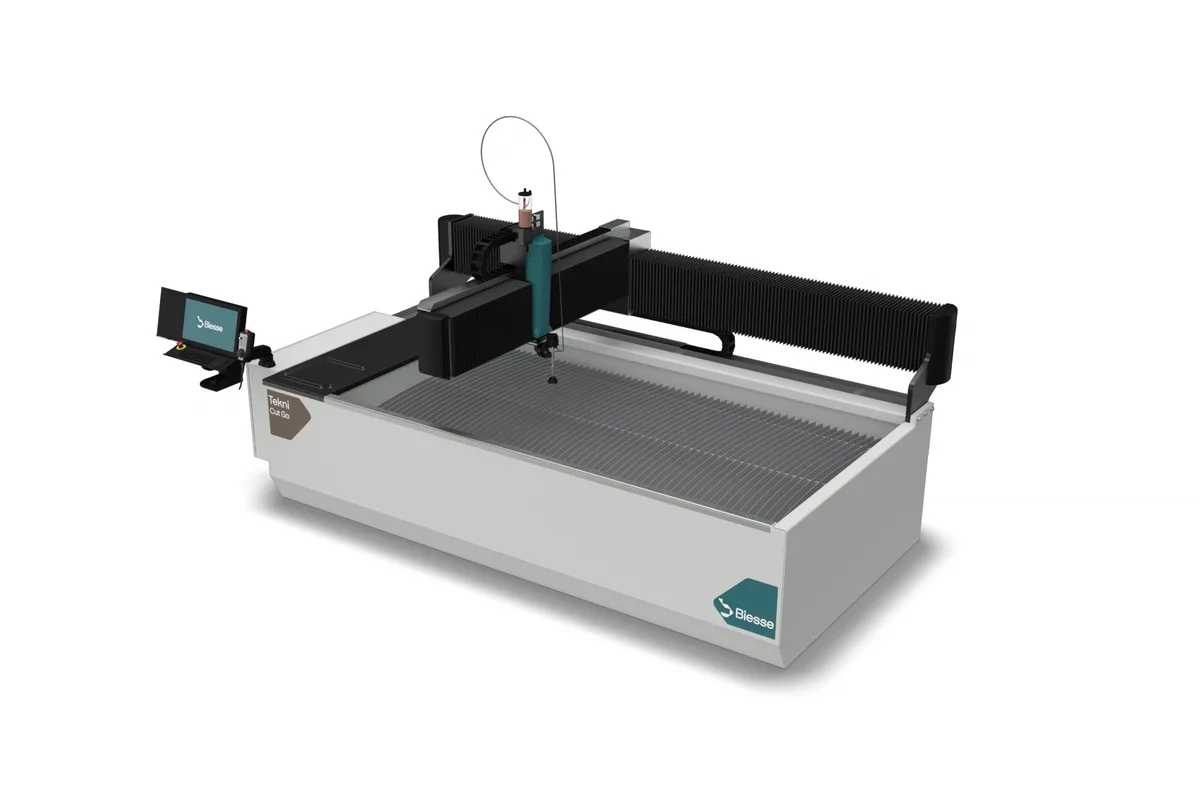

Image: biesse.com, Biesse

Key Specifications

sizes

915, 1530, 1227

cutting area 915

1,525 x 915 mm (60.0 x 36.0 in); 3-axis; Start configuration

cutting area 1530

3,050 x 1,525 mm (120.1 x 60.0 in); 3-axis; Start configuration

cutting area 1227

2,700 x 1,220 mm (106.3 x 48.0 in); 5-axis; Regular configuration

pump vp 15 52 max output pressure

4,100 bar

pump vp 15 52 max output volume

2.0 l/min

How much does the Biesse Tekni Cut Go J C cost?

Price estimate

Uncertain

We do not have a price for the Biesse Tekni Cut Go J C that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Biesse Tekni Cut Go J C is a compact waterjet for metalworking, listed in three sizes. Two are 3-axis machines with cutting areas of 1,525 x 915 mm (60.0 x 36.0 in) and 3,050 x 1,525 mm (120.1 x 60.0 in). The third is a 5-axis machine cutting 2,700 x 1,220 mm (106.3 x 48.0 in).

Size and axis count are tied together here, which is worth noticing before choosing. A buyer who wants bevel cuts gets the 2,700 x 1,220 mm (106.3 x 48.0 in) table in what Biesse calls the Regular configuration, while the two Start configuration machines are 3-axis. The 5-axis head rotates continuously, and Biesse gives ±0.1° positioning accuracy for its direct drive tilting and rotating axes. An integrated height detector sets stand-off before piercing and can measure sheet flatness to correct Z.

Five pumps are offered. Two Light series pumps open the list: VP 15/52 at 4,100 bar with 15 kW (20.1 hp), and VP 22/60 at 4,137 bar with 22 kW (29.5 hp), both delivering 2.0 l/min. The Power series runs at 4,550 bar with 3.8 l/min from 37 kW (49.6 hp), or 7.6 l/min from the 74 kW (99.2 hp) dual pump. The Ultimate series pump reaches 6,000 bar at 3.0 l/min with 40 kW (53.6 hp). Output volume limits orifice size and with it cutting speed, so the small pumps suit thin material and lighter duty.

Positioning uses linear scale feedback, with a stated positional precision of 0.05 mm and repeatability of 0.025 mm. The axes run on a stainless steel band drive made for abrasive environments, reaching up to 17.5 m/min, and are protected by bellows. Cutting is done fully underwater to hold down noise, splashing and abrasive dispersion.

Full Specifications

Parameter	Value
Sizes	915, 1530, 1227
Cutting Area 915	1,525 x 915 mm (60.0 x 36.0 in); 3-axis; Start configuration
Cutting Area 1530	3,050 x 1,525 mm (120.1 x 60.0 in); 3-axis; Start configuration
Cutting Area 1227	2,700 x 1,220 mm (106.3 x 48.0 in); 5-axis; Regular configuration
Pump Vp 15 52 Max Output Pressure	4,100 bar
Pump Vp 15 52 Max Output Volume	2.0 l/min
Pump Vp 15 52 Power	15 kW (20.1 hp)
Pump Vp 22 60 Max Output Pressure	4,137 bar
Pump Vp 22 60 Max Output Volume	2.0 l/min
Pump Vp 22 60 Power	22 kW (29.5 hp)
Pump Esp 37 66 Max Output Pressure	4,550 bar
Pump Esp 37 66 Max Output Volume	3.8 l/min
Pump Esp 37 66 Power	37 kW (49.6 hp)
Pump Esp 74 66 Dual Pump Max Output Pressure	4,550 bar
Pump Esp 74 66 Dual Pump Max Output Volume	7.6 l/min
Pump Esp 74 66 Dual Pump Power	74 kW (99.2 hp)
Pump Up 40 6000 Max Output Pressure	6,000 bar
Pump Up 40 6000 Max Output Volume	3.0 l/min
Pump Up 40 6000 Power	40 kW (53.6 hp)

Specifications sourced from biesse.com — verified 2026-10-05

Strengths & Limitations

Strengths

Five pump options from 15 kW (20.1 hp) to 74 kW (99.2 hp), with pressures up to 6,000 bar
5-axis head with continuous rotation and ±0.1° positioning on the 2,700 x 1,220 mm (106.3 x 48.0 in) size
Linear scale feedback: 0.05 mm positional precision and 0.025 mm repeatability
Fully underwater cutting reduces noise, splashing and abrasive dispersion
Space-saving structure designed for easy integration into a workshop

Limitations

5-axis cutting is listed on one size only; the 1,525 x 915 mm (60.0 x 36.0 in) and 3,050 x 1,525 mm (120.1 x 60.0 in) machines are 3-axis
Light series pumps deliver 2.0 l/min, against 3.8 l/min from the 37 kW (49.6 hp) Power series pump
Largest cutting area is 3,050 x 1,525 mm (120.1 x 60.0 in)
No Z stroke, table load or machine weight is published

Best For

Job shops adding waterjet cutting in limited space Metal sheet up to 3,050 x 1,525 mm (120.1 x 60.0 in) Bevel cuts on the 5-axis Regular configuration Marking and engraving parts without piercing the material

Frequently Asked Questions

01 Which Tekni Cut Go J C sizes have a 5-axis head?

One. Size 1227, with a 2,700 x 1,220 mm (106.3 x 48.0 in) cutting area, is listed as 5-axis in the Regular configuration. Sizes 915 and 1530, cutting 1,525 x 915 mm (60.0 x 36.0 in) and 3,050 x 1,525 mm (120.1 x 60.0 in), are 3-axis machines in the Start configuration. If bevels matter, the choice of table size is already made.

02 What pumps can be fitted to the Tekni Cut Go J C?

Five. Light series: VP 15/52 (4,100 bar, 2.0 l/min, 15 kW) and VP 22/60 (4,137 bar, 2.0 l/min, 22 kW). Power series: ESP 37/66 (4,550 bar, 3.8 l/min, 37 kW) and the dual pump ESP 74/66 (4,550 bar, 7.6 l/min, 74 kW). Ultimate series: UP 40/6000 (6,000 bar, 3.0 l/min, 40 kW). Higher pressure cuts faster at a given flow, and higher flow allows a larger orifice.

03 How accurate is the Tekni Cut Go J C?

Biesse states positional precision of 0.05 mm and repeatability of 0.025 mm, through linear scale feedback. The tilting and rotating axes of the 5-axis head position to ±0.1°. These are machine positioning figures. Finished part accuracy on a waterjet also depends on material thickness, cutting speed and jet taper, which the page does not quantify.

04 Does the Tekni Cut Go J C cut underwater?

Yes. The system performs fully underwater cutting, which Biesse says minimizes noise, splashing and abrasive dispersion and improves surface quality. A height detection system adjusts Z automatically to follow surface irregularities, and integrated engraving marks text, logos and graphics without piercing the material.
